Case 921C - Operators Seat

INSTRUMENTS/CONTROLS
92
LEFT PAGE
Bur 6-34090EUR

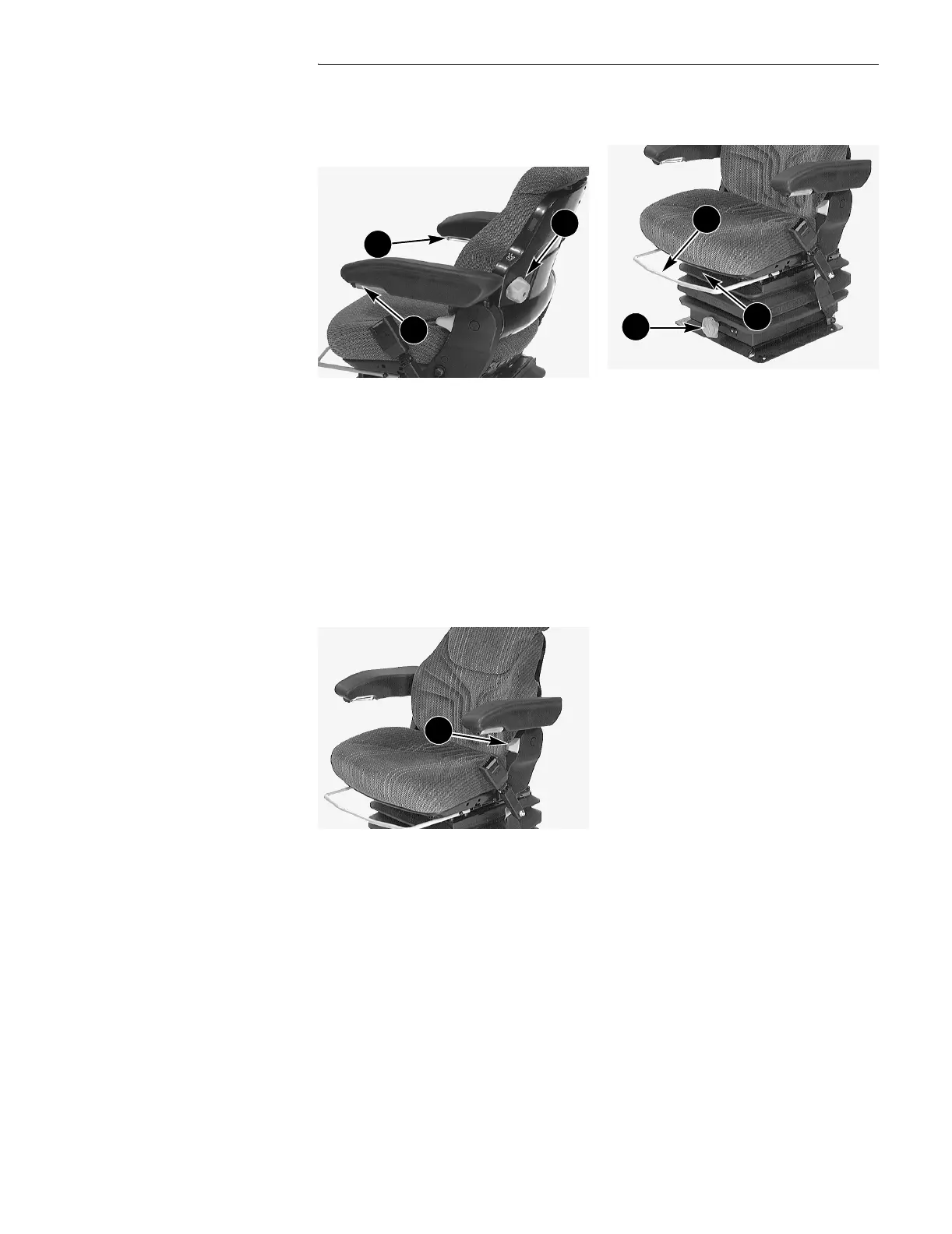

OPERATORS SEAT
Standard Seat
RD98K267
1. LUMBAR ADJUSTMENT KNOB:
Turn the knob clockwise to increase the
lumbar support, turn the knob
counterclockwise to decrease the
lumbar support.
2. ARMREST HEIGHT CONTROL
ADJUSTMENT:
Turn the knob to raise or lower the
armrest to the desired position.
NOTE: Each armrest will pivot to the up
position.
RD98K266
3. RECLINER ADJUSTMENT
HANDLE:
Lift up on the handle, move the
backrest to the desired position,
release the handle to lock the backrest
in position.
RD98K266
4. SLIDE ADJUSTMENT LEVER:
Pull this lever up and adjust the seat
forward or rearward as required.
Release the lever to lock the seat in
position.
5. WEIGHT ADJUSTMENT KNOB:
To adjust the seat for your weight you
must pull the release lever out of the
knob, Use the release lever to turn the
knob clockwise to increase the weight
resistance. Turn the knob
counterclockwise to decrease the
weight resistance.
6. HEIGHT ADJUSTMENT,
STANDARD SEAT:
Lift the seat all the way up, drop the
seat to the lowest position. Lift the seat
to the desired position. The seat will
lock into accepted positions.
1
2
2
3
4
5
6
