Case 921C - STARTING THE ENGINE

INSTRUMENTS/CONTROLS
93
RIGHT PAGE
Bur 6-34090EUR
Optional Air Ride Seat
RD98K267

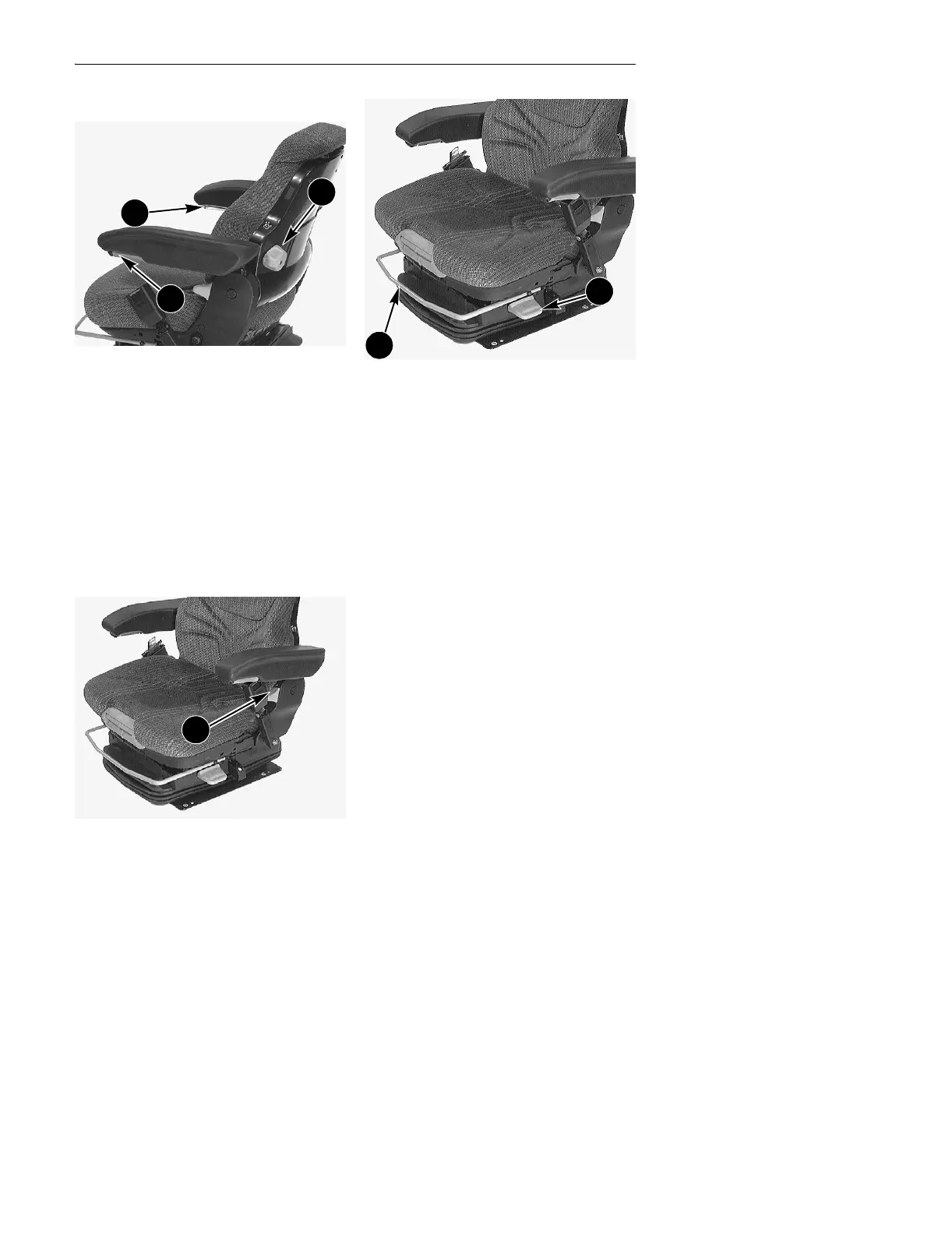

1. LUMBAR ADJUSTMENT KNOB:
Turn the knob clockwise to increase the
lumbar support, turn the knob
counterclockwise to decrease the
lumbar support.
2. ARMREST HEIGHT CONTROL
ADJUSTMENT:
Turn the knob to raise or lower the
armrest to the desired position.
NOTE: Each armrest will pivot to the up
position.
RD98K268
3. RECLINER ADJUSTMENT
HANDLE:
Lift up on the handle, move the
backrest to the desired position,
release the handle to lock the backrest
in position.
RD98K268
4. SLIDE ADJUSTMENT LEVER:
Pull this lever up and adjust the seat
forward or rearward as required.
Release the lever to lock the seat in
position.
NOTE: When adjusting the seat height
for the first time or for a different
operator. Sit in the operators seat, lift
up momentarily on the height
adjustment handle. The seat will
automatically adjust to the operators
weight. See height adjustment handle
for final adjustments.
5. HEIGHT ADJUSTMENT HANDLE:
A. (Automatic Adjustment): With
the operator sitting in the seat.
Lift the handle UP and release.
The seat will automatically
adjust UP and then bleed off air
pressure to the optimum air
pressure for the weight of the
operator.
