Bur 6-34090EUR
B. (Manual Adjustment): The seat
can be raised or lowered by
increasing or decreasing the air
pressure in the seat. Lift the
handle UP to increase the air
pressure. Push the handle
DOWN to decrease the air
pressure and lower the seat.
RD98K268

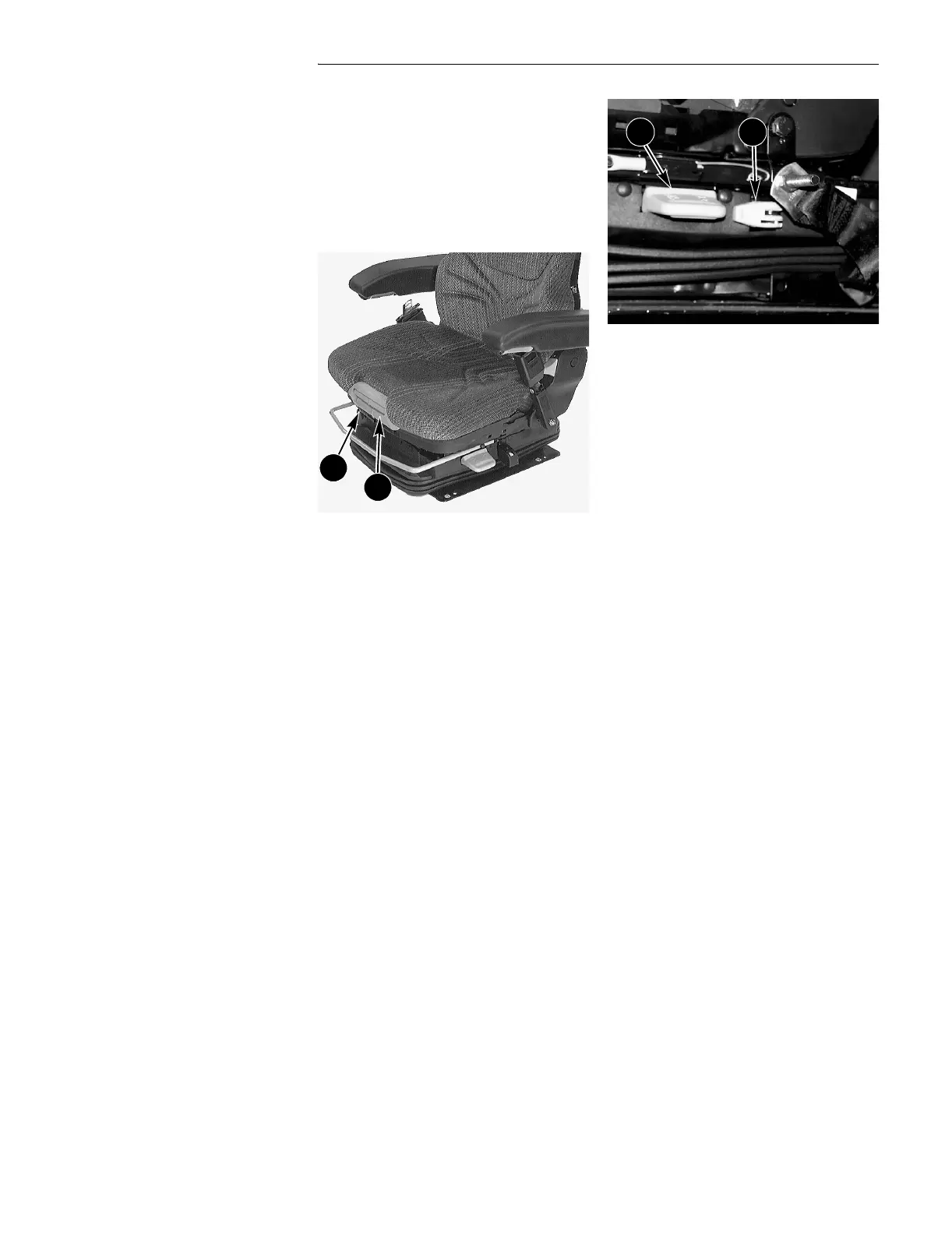

6. SEAT DEPTH HANDLE:
Lift handle up and move the cushion to
the desired position. Release the
handle to lock the cushion in position.
7. SEAT CUSHION ANGLE
ADJUSTMENT HANDLE:
Lift up on the handle. Move the seat to
the desired angle. Release the handle
to lock the cushion angle.
BD00B010
8. DAMPENING ADJUSTMENT
LEVER:
The dampening adjustment lever has
four positions from soft to hard. The
first adjustment is with the small end of
the adjustment lever pointing toward
the front of the seat, as shown. The
other three adjustments can be
obtained by rotating the small end of
the adjustment lever out away from the
seat. Each of the adjustments has a
slight detent. The suspension can be
adjusted to various operating
conditions.
7
6
5 8
