AXLES
ZF
Service Specifications
Front axle capacity ................................................... 45.4 litres (48.0 U.S. Quarts)
Rear axle capacity ....................................................... 48.3 litres (51 U.S. Quarts)
Type of oil ............................................................................. Case Transaxle Fluid
Alternate oil ............................................................................................. See note
Oil change interval ................................... After the first 100 hours of operation
and then every 1000 hours there after.
NOTE: DO NOT use an alternate oil in the axles. The brake components in the
axles could be damaged as a result of using an alternate oil.
Axle Oil Level
To check the oil level, do the following procedure.
NOTE: The oil level and filler plugs in are magnetic. Remove and clean these
plugs after the first 50 and 100 hours of operation with a new or rebuilt axle.
1. Park the machine on a level
surface. Apply the parking brake
and stop the engine.
2. Remove the oil level and filler plug
from the center bowl of the axle.
The oil level must be level with the
bottom of the oil level and filler plug
hole.

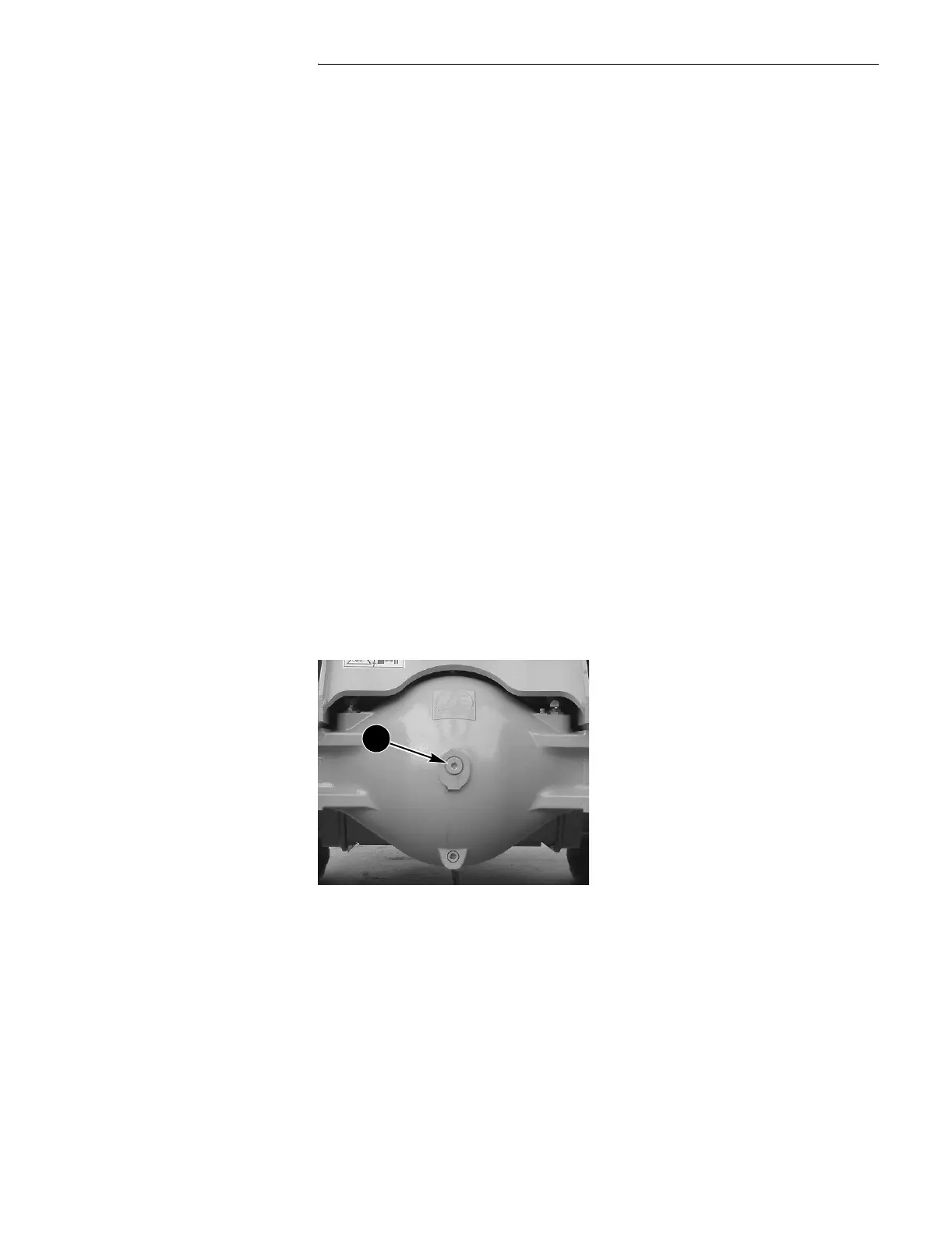

BD02B074
1. OIL LEVEL AND FILLER PLUG
3. Add oil as required. See Axle
Service Specifications in this
manual.
4. Clean and install the filler plug.
