OPERATING INSTRUCTIONS
113
RIGHT PAGE
Bur 6-34090EUR

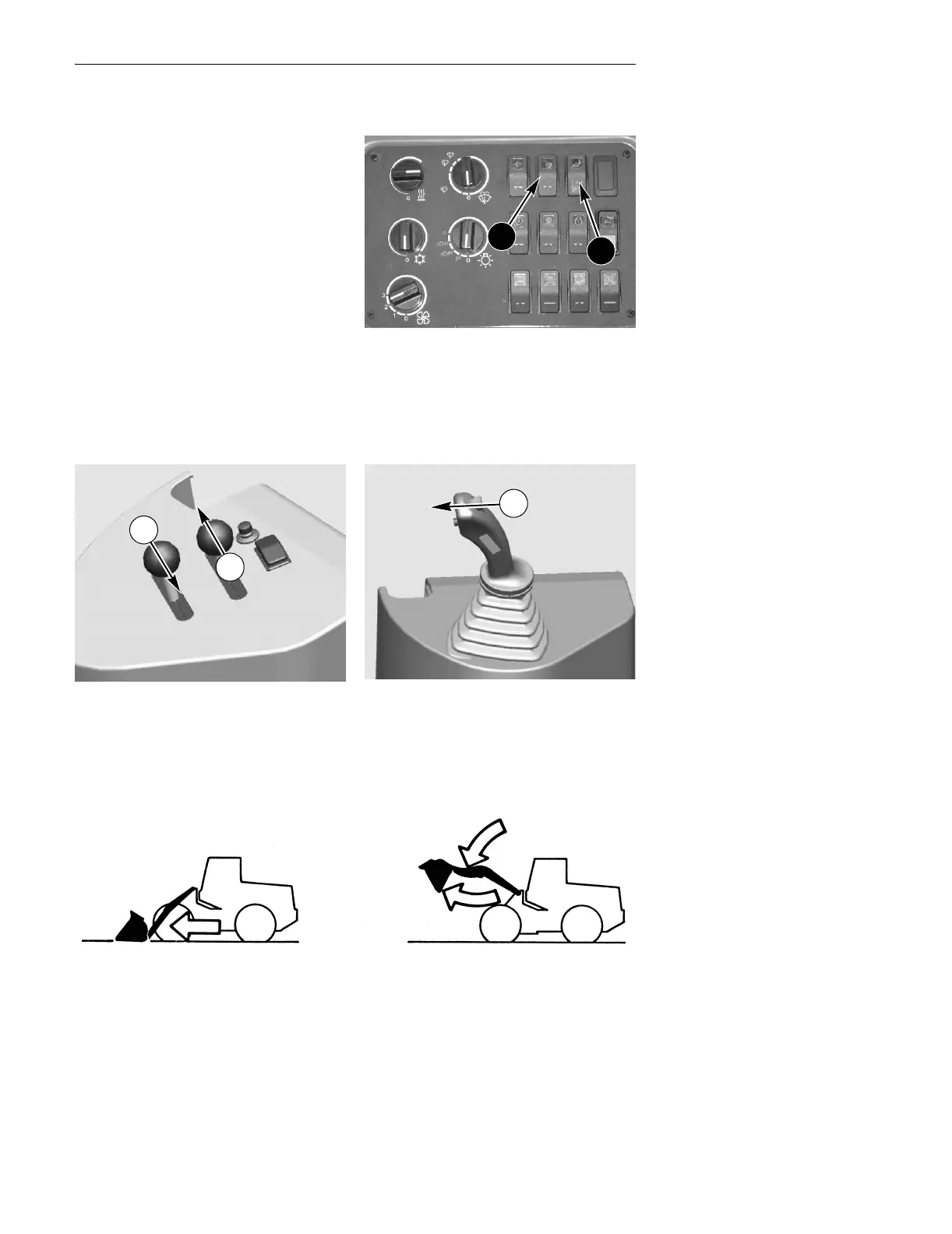

LOADER FUNCTION SWITCHES
Push down on the top of the detent
switch to engage all detents. Push on
the bottom of switch for the OFF
position.
The Return-To-Dig function is used to
move the loader bucket for another dig
cycle after you have dumped the load.
BD02B055
1. DETENT ON/OFF SWITCH
2. RETURN-TO-TRAVEL/ FLOAT SWITCH
Return-To-Dig
The Return-To-Dig function is used to automatically return the loader bucket to
the dig position after you have dumped the loader bucket.
BC01E133
1. FLOAT
2. ROLLBACK DETENT
BC01E131
1. FLOAT AND ROLLBACK DETENT
To actuate, move the control lever(s) into the FLOAT and ROLLBACK detents.
The control lever(s) will automatically return to the HOLD position when the loader
reaches the Return-To-Dig position. See Loader Adjustments in this manual for
Return-To-Dig Adjustment.
B1125A88J
1
2
2
1
1
