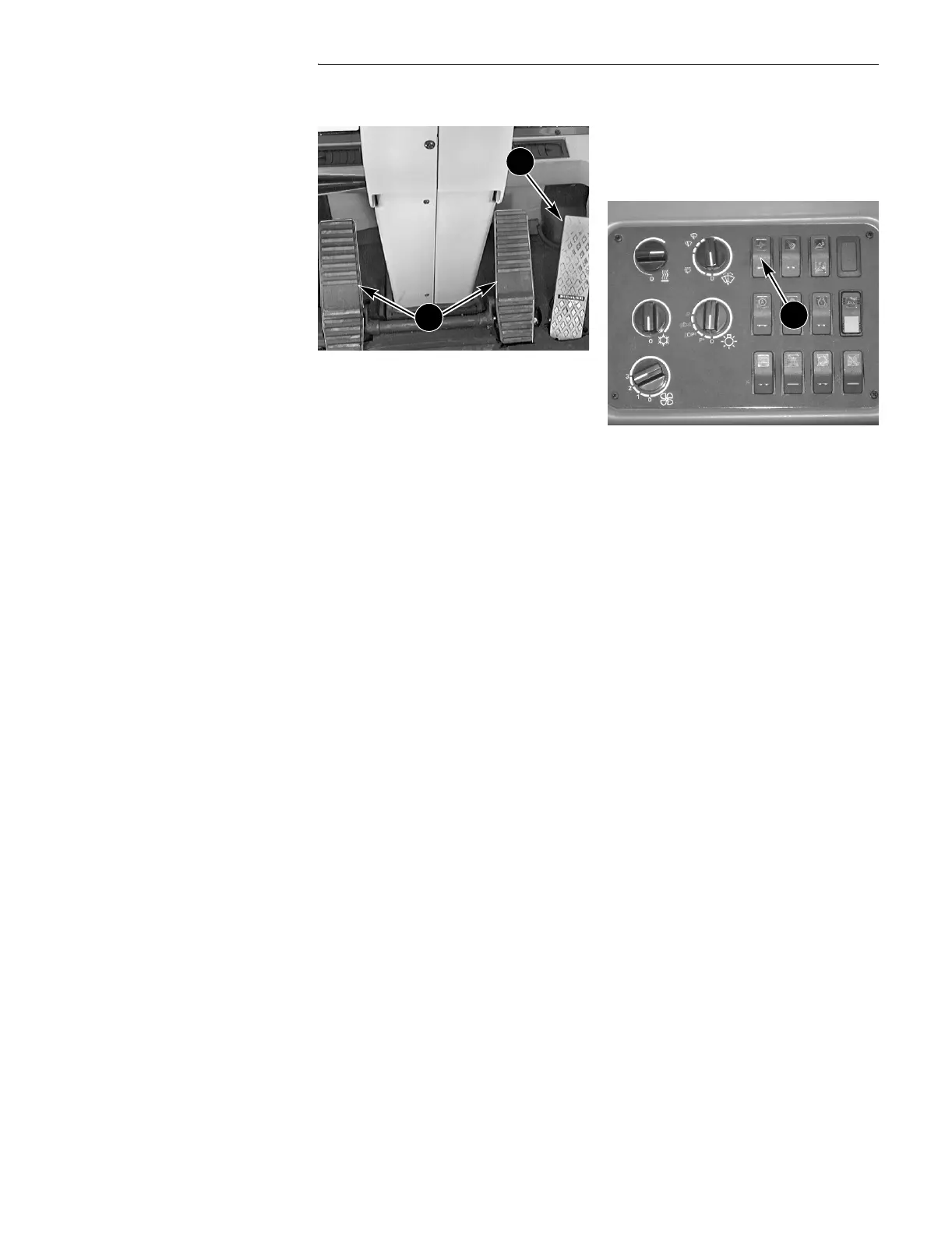

FOOT PEDALS
RD97F194
1. FOOT THROTTLE:
Push the foot throttle to increase the
engine speed. Release the foot throttle
to decrease the engine speed.
2. BRAKE PEDALS:
Push down on the bottom of the
Declutch switch (3). This turns OFF the
Declutch feature. When either pedal is
pushed down, the brakes are actuated,
the brake light is illuminated, and the
transmission clutch will remain
engaged. Push down on the top of the
Declutch switch and this will turn on the
Declutch feature. When either brake
pedal is pushed down the brakes are
actuated, the brake light is illuminated
and the transmission clutch is
disengaged.
NOTE: Use the DECLUTCH SWITCH
when you need maximum power
(speed) for the loader lift arms and
bucket (see Declutch in this manual).
BD02B055
3. DECLUTCH SWITCH
1
2
3
