Case 921C - SPECIAL BOLT TORQUES

SPECIFICATIONS
218
LEFT PAGE
Bur 6-34090EUR
BS02B176

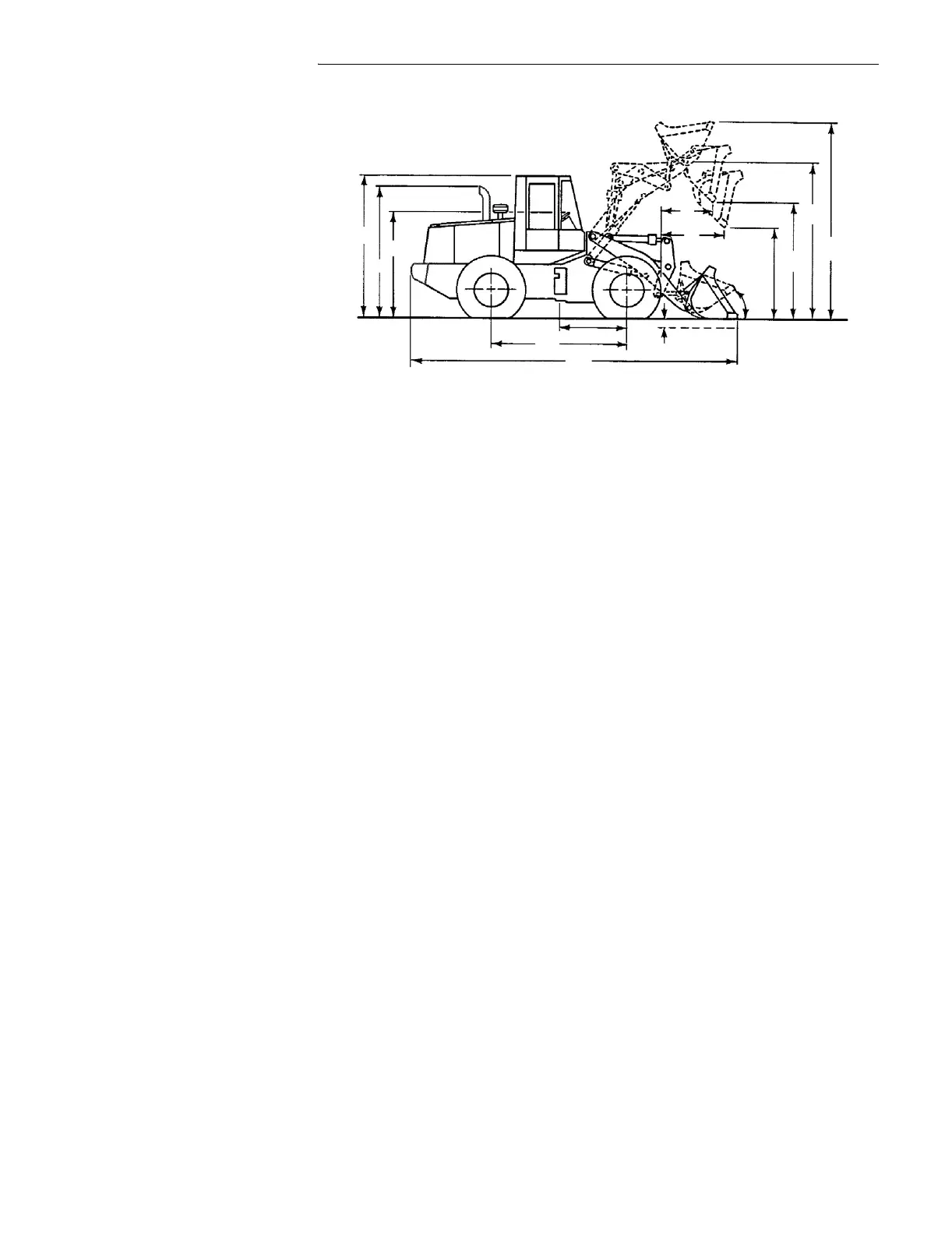

Machines with 3.63 m
3
(4.75 yd
3
) General Purpose
Bucket with Teeth and Bolt on Edges
Tipping load, machine straight .............................. 19 177 kg (42 278 pounds)
Tipping load, 40 degree turn ................................ 15 215 kg (33 544 pounds)
A. Overall operating height, fully raised ................... 5 634 mm (18 foot 5.8 inch)
B. Height to bucket hinge pin, fully raised ................ 4 283 mm (14 foot 0.6 inch)
C. Dump height, 45 degree dump, full height ............. 2 939 mm (9 foot 7.7 inch)
D. Bucket reach, 45 degree dump, full height ............ 1 245 mm (4 foot 1.0 inch)
E. Bucket reach, 45 degree dump, 7 foot
(2134 mm) dump height ...................................... 1 806 mm (5 foot 11.1 inch)
Dump angle at full height ................................................................ 50 degree
F. Bucket rollback at ground line ........................................................ 40 degree
G. Digging Depth, bucket flat .................................................... 71 mm (2.8 inch)
H. Wheel Base .................................................................... 3 404 mm (134 inch)
Tread width ....................................................................... 2 210 mm (87 inch)
J. Overall length ...................................................... 8 895 mm (29 foot 2.2 inch)
K. Overall height to top of ROPS cab ...................... 3 571 mm (11 foot 8.6 inch)
L. Height to top of exhaust pipe ............................... 3 526 mm (11 foot 6.8 inch)
M. Height to top of steering wheel .............................. 2 837 mm (9 foot 3.7 inch)
Operating weight ................................................. 23 323 kg (51 418 pounds)
Turning angle from center ........................................................ 40 degree
A
B
C
D
E
F
G
H
J
K
L
M
7 FT
(2.13mm)
