Case 921C - XR Machines with 3.63 M3 (4.75 Yd3) General Purpose Bucket with Teeth and Bolt on Edges

SPECIFICATIONS
221
RIGHT PAGE
Bur 6-34090EUR
BS02B176
XR Machines with 3.63 m
3
(4.75 yd
3
) General Purpose
Bucket with Teeth and Bolt on Edges
Tipping load, machine straight .............................. 14 927 kg (32 908 pounds)
Tipping load, 40 degree turn ................................. 11 914 kg (26 265 pounds)

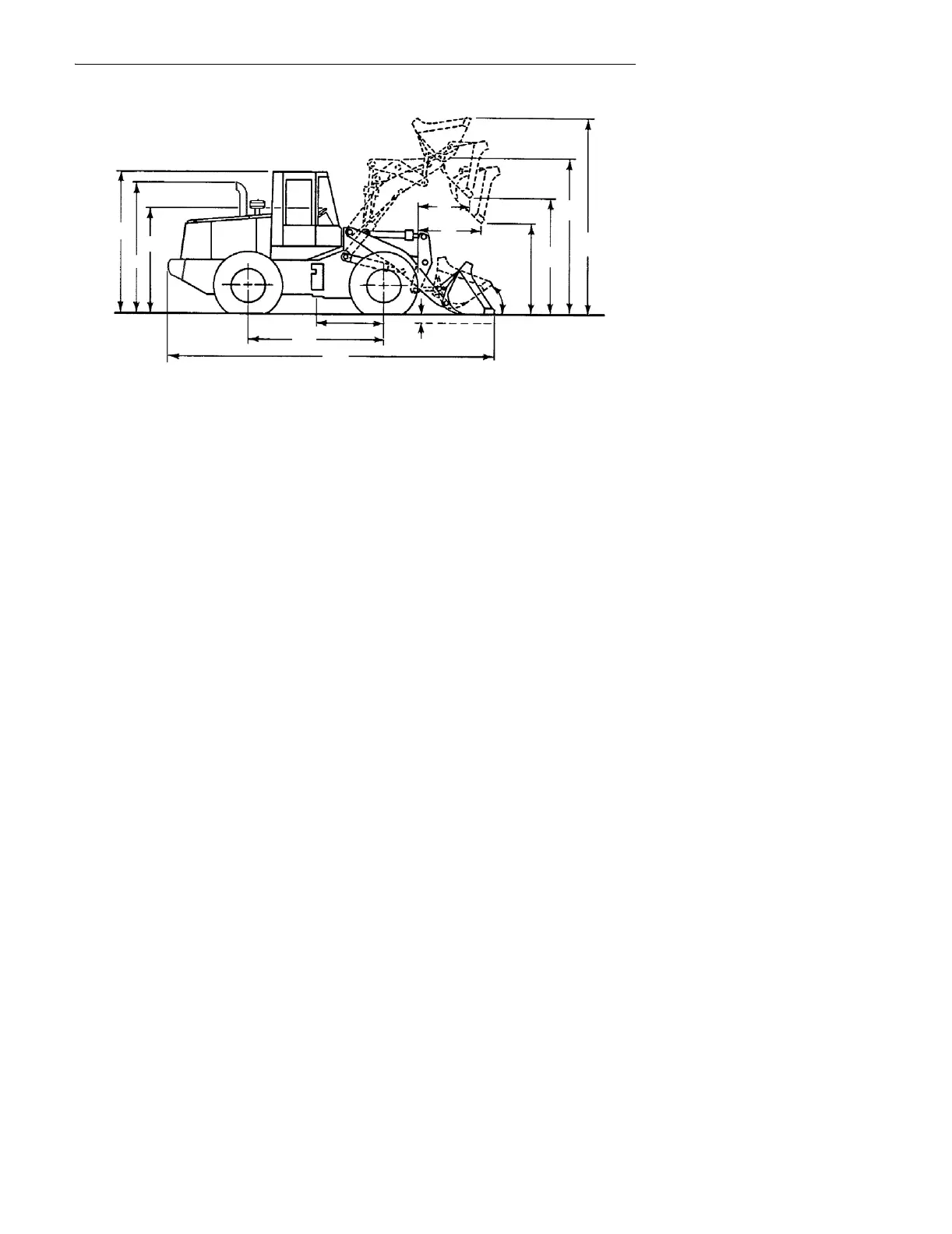

A. Overall operating height, fully raised .................. 6 186 mm (20 foot 3.5 inch)
B. Height to bucket hinge pin, fully raised ............. 4 834 mm (15 foot 10.3 inch)
C. Dump height, 45 degree dump, full height ........... 3 491 mm (11 foot 5.4 inch)
D. Bucket reach, 45 degree dump, full height ........... 1 323 mm (4 foot 4.1 inch)
E. Bucket reach, 45 degree dump, 7 foot
(2134 mm) dump height ....................................... 2 305 mm (7 foot 6.7 inch)
Dump angle at full height ................................................................ 45 degree
F. Bucket rollback at ground line ......................................................... 40 degree
G. Digging Depth, bucket flat .................................................... 84 mm (3.3 inch)
H. Wheel Base ................................................................... 3 404 mm (134 inch)
Tread width ...................................................................... 2 210 mm (87 inch)
J. Overall length ......................................................... 9 451 mm (31 foot 0 inch)
K. Overall height to top of ROPS cab ....................... 3 571 mm (11 foot 8.6 inch)
L. Height to top of exhaust pipe ............................... 3 526 mm (11 foot 6.8 inch)
M. Height to top of steering wheel ............................. 2 837 mm (9 foot 3.7 inch)
Operating weight .................................................. 23 754 kg (52 368 pounds)
Turning angle from center ........................................................ 40 degree
A
B
C
D
E
F
G
H
J
K
L
M
7 FT
(2.13mm)
