Case 921C - Machines with 3.82 M3(5.0 Yd3 ) General Purpose Bucket

SPECIFICATIONS
219
RIGHT PAGE
Bur 6-34090EUR
BS02B176
Machines with 3.82 m
3
(5.0 yd
3
) General Purpose
Bucket

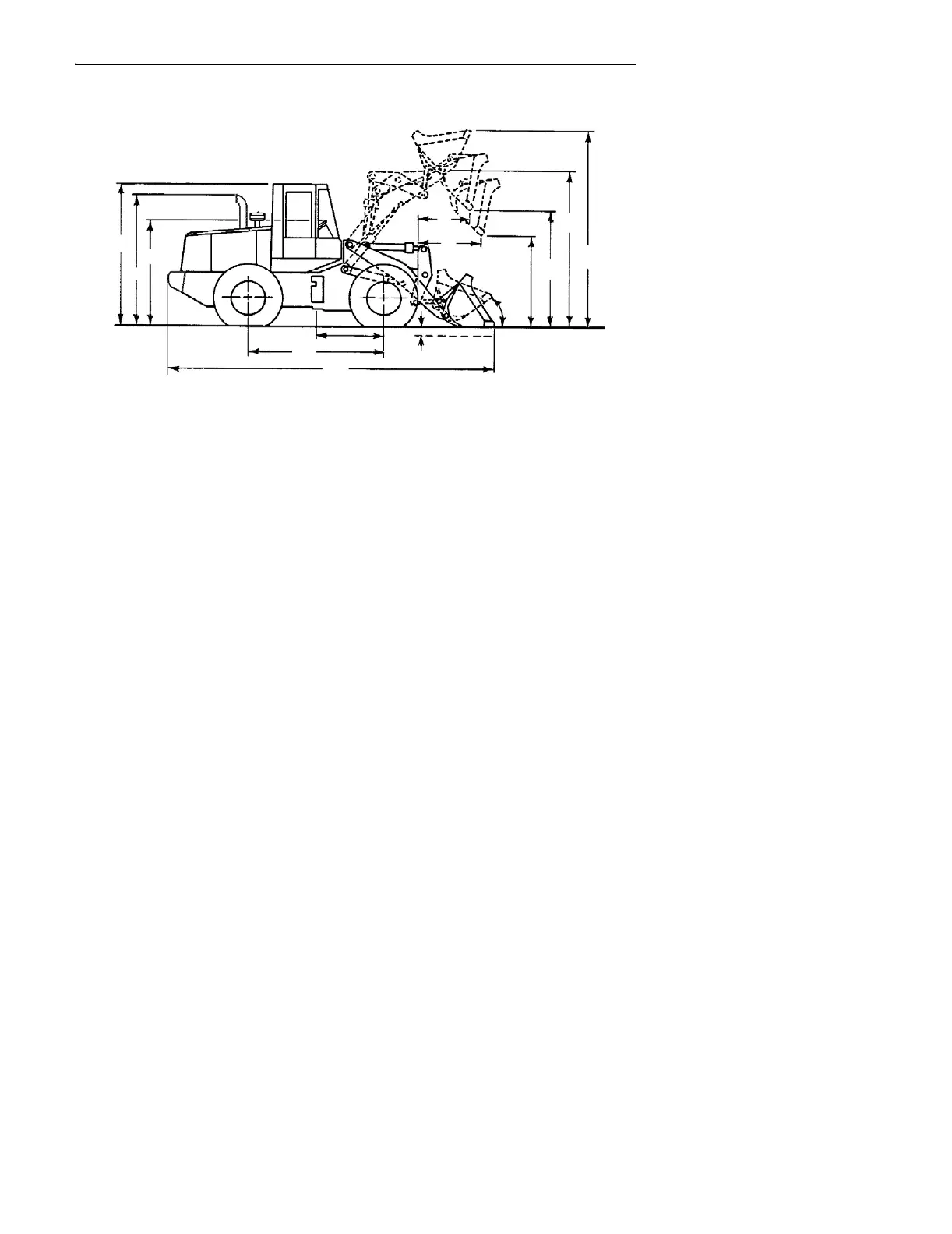

Tipping load, machine straight ...........................19 727 kg (43 491 pounds)
Tipping load, 40 degree turn ............................... 15 708 kg (34 631 pounds)
A. Overall operating height, fully raised ................ 5 857 mm (19 foot 2.6 inch)
B. Height to bucket hinge pin, fully raised ............. 4 284 mm (14 foot 0.7 inch)
C. Dump height, 45 degree dump, full height ........ 3 129 mm (10 foot 3.2 inch)
D. Bucket reach, 45 degree dump, full height .......... 1 114 mm (3 foot 7.9 inch)
Dump angle at full height ................................................................ 50 degree
E. Bucket reach, 45 degree dump, 7 foot
(2134 mm) dump height ..................................... 1 758 mm (5 foot 9.2 inch)
F. Bucket rollback at ground line ......................................................... 39 degree
G. Digging Depth, bucket flat .................................................... 30 mm (1.2 inch)
H. Wheel Base ................................................................... 3 404 mm (134 inch)
Tread width ...................................................................... 2 210 mm (87 inch)
J. Overall length ...................................................... 8 637 mm (28 foot 4.0 inch)
K. Overall height to top of ROPS cab ....................... 3 571 mm (11 foot 8.6 inch)
L. Height to top of exhaust pipe ............................... 3 526 mm (11 foot 6.8 inch)
M. Height to top of steering wheel ............................. 2 837 mm (9 foot 3.7 inch)
Operating weight .................................................. 23 034 kg (50 782 pounds)
Turning angle from center ........................................................ 40 degree
A
B
C
D
E
F
G
H
J
K
L
M
7 FT
(2.13mm)
