COUPLER PIN ENGAGEMENT (IF EQUIPPED)
Use the factory/field installed coupler
system to change attachments quickly.

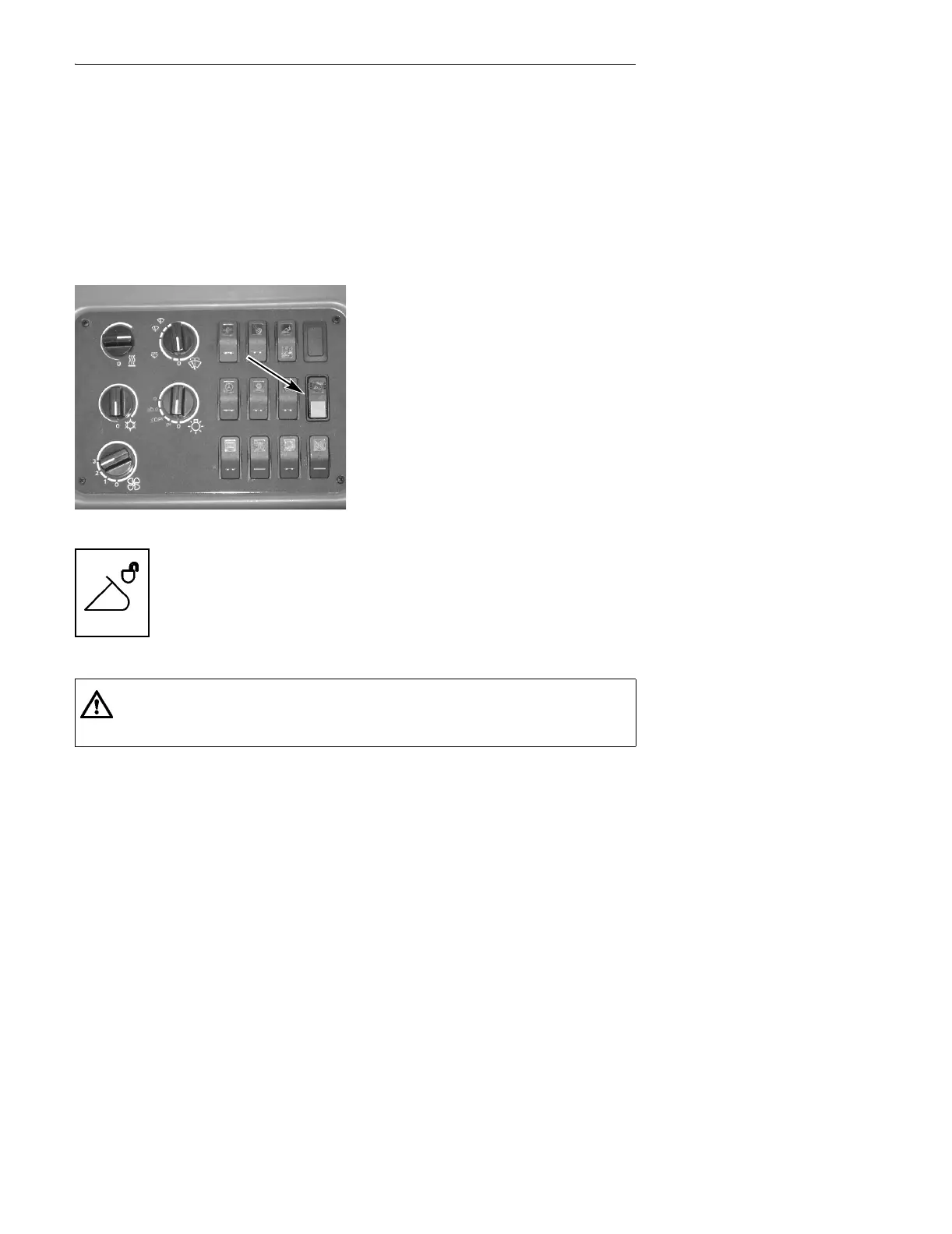

A control switch for the system is
located on the RH console.
To connect an attachment, position the
front coupler into the attachment, push
and hold on the top of the COUPLER
switch to RETRACT the PINS and
release the switch (PINS ENGAGED).
Make sure the Coupler Pins are
engaged before you use the machine.
BD02B055
Slide the locking plate towards the center of the switch, push down on
the top of the switch to RETRACT the pins. The switch lamp will
illuminate when the pins are retracted. The switch will lock in the PIN
EXTENDED position after the bottom of the switch has been pressed
and the PINS EXTENDED.
M781
WARNING: Before using the machine make sure the attachment is
securely connected to the machine by putting the front of the attachment
against the ground and putting down pressure on the attachment.
BC00B099
