Disconnecting Attachments to the Coupler
1. Lower the bucket or other
attachment onto a level surface.
Tilt the bucket or attachment so
that it is flat on the surface.
2. Apply the parking brake. Stop the
engine.
3. Disconect the attachment hydraulic
hoses from the auxiliary couplers, if
connected.
4. Open the coupler hydraulic cylinder
locking valve by rotating the red
control handle down to a vertical
position..

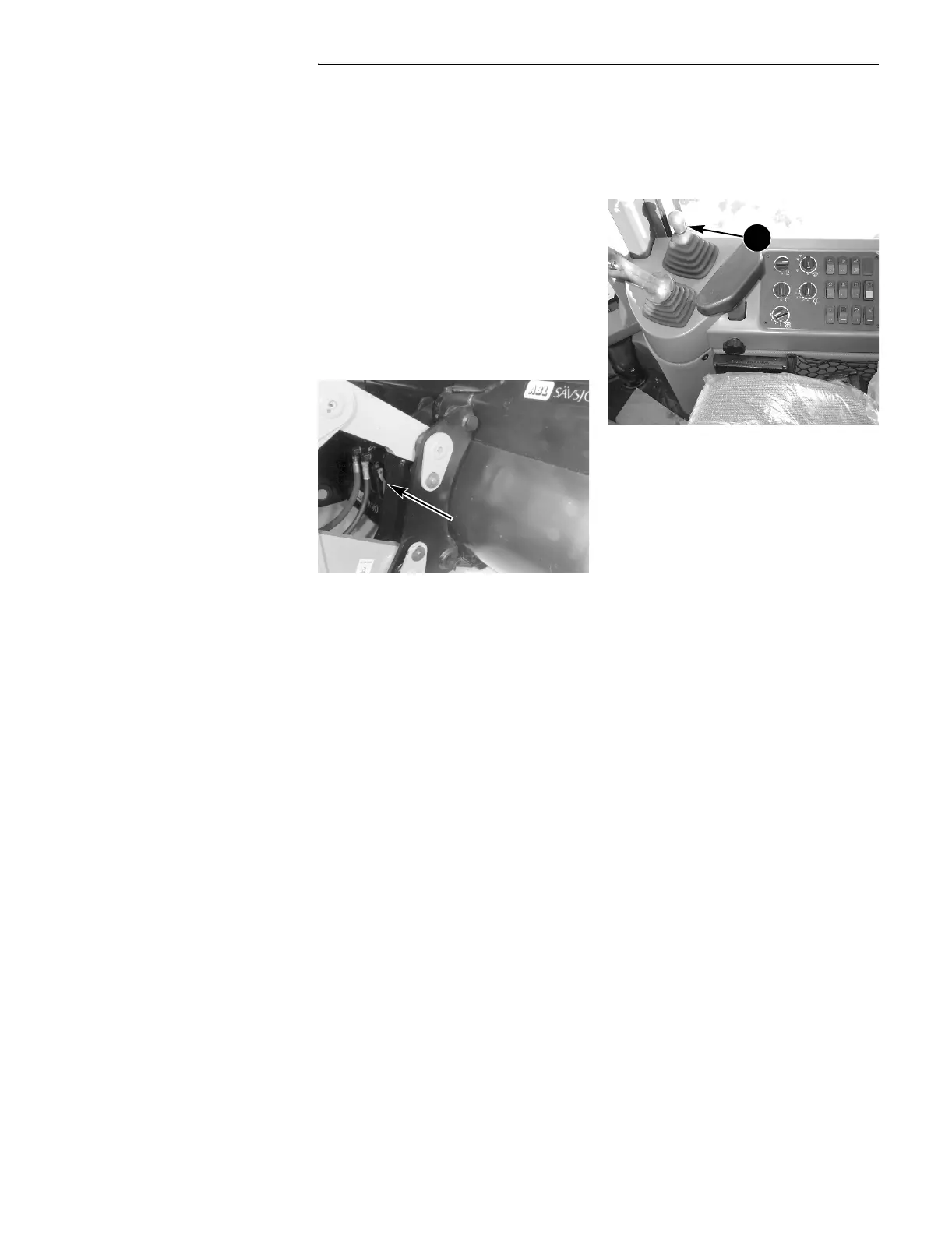

FAR1056
5. Start the engine.
6. Push the auxiliary hydraulics
control lever froward to retract the
locking pins and indicator tabs..
BD02B056
AUXILIARY HYDRAULICS CONTROL LEVER
7. Lower the lift arms and back away
from the bucket or other
attachment.
