OPERATING INSTRUCTIONS
115
RIGHT PAGE
Bur 6-34090EUR
Float

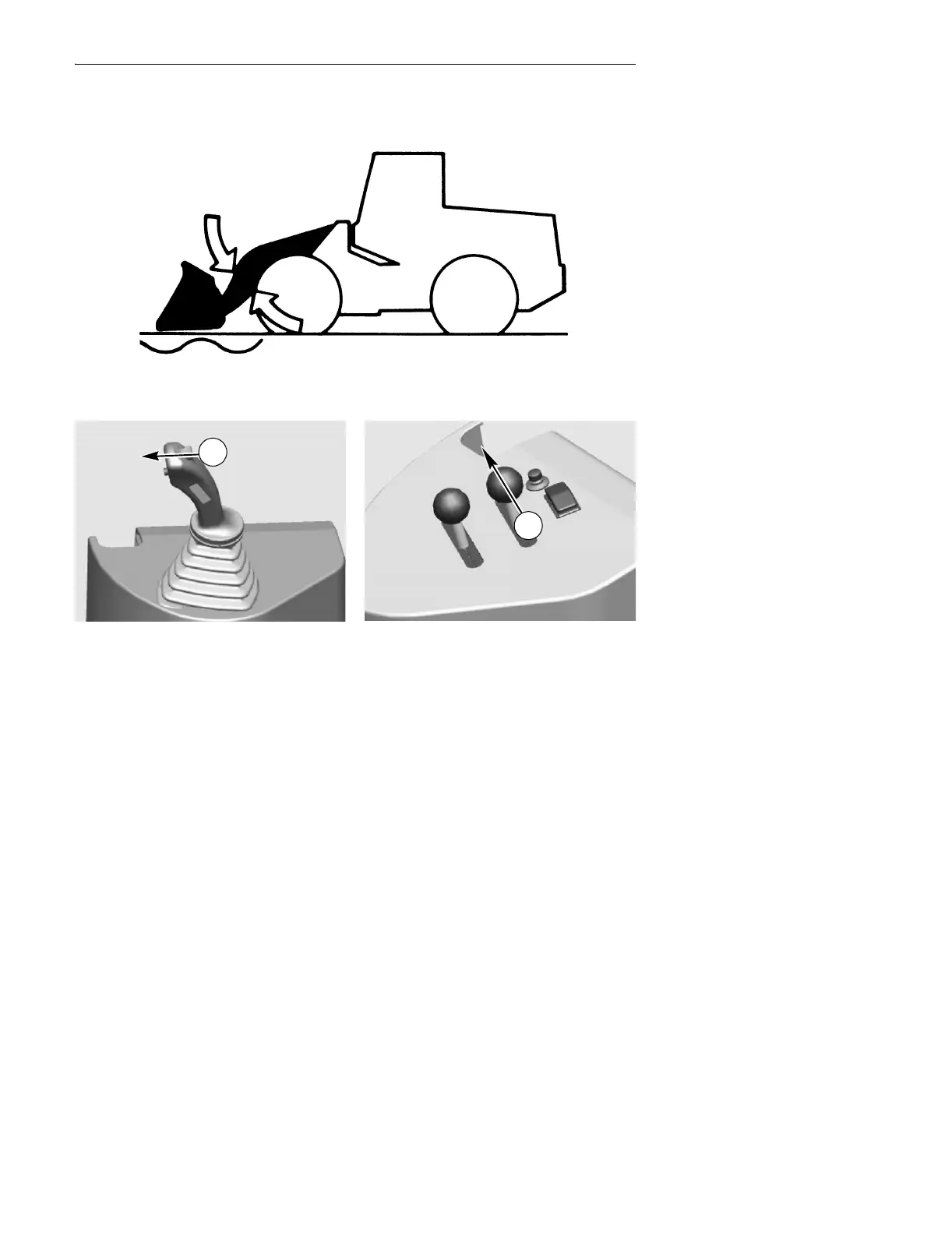

The Float function is used to let the loader bucket float across rough ground.
B1128A88J
To actuate, move the control lever into the FLOAT detent. The control lever will
remain in this position until manually removed.
BC01E131
1. FLOAT
BC01E133
1. FLOAT
LOADER CONTROL
The loader control levers are
connected to a hydraulic accumulator
through a pressure reducing valve. The
purpose of the reducing valve and
accumulator combination is to: (1)
allow the operator to lower the loader
arms if the engine stops with the loader
arms raised, or (2) give the conrol
system hydraulic presusre assistance
when operating the machine at low idle
speed.
1. Start the engine.
2. Raise the loader bucket.
3. Stop the engine.
4. Move the lift arm control to
LOWER. The loader bucket must
lower to the ground. If the bucket
does not lower to the ground, see
the Service Manual for this
machine or see your dealer.
1
1
