Front Axle Oil Change
After the first 100 hours of operation
and then every 1000 hours there after.
1. Park the machine on a level
surface. Apply the parking brake
and stop the engine.
2. Have a container that will hold
approximately 42.3 litres (45 U.S.
Quarts) for the front axle and a
container that will hold
approximately 45.5 litres (48 U.S.
Quarts) for the rear axle.
3. With the oil warm from operation,
remove the oil level and filler plug
and the drain plug from center bowl
of the axle. Drain the oil from the
axle.

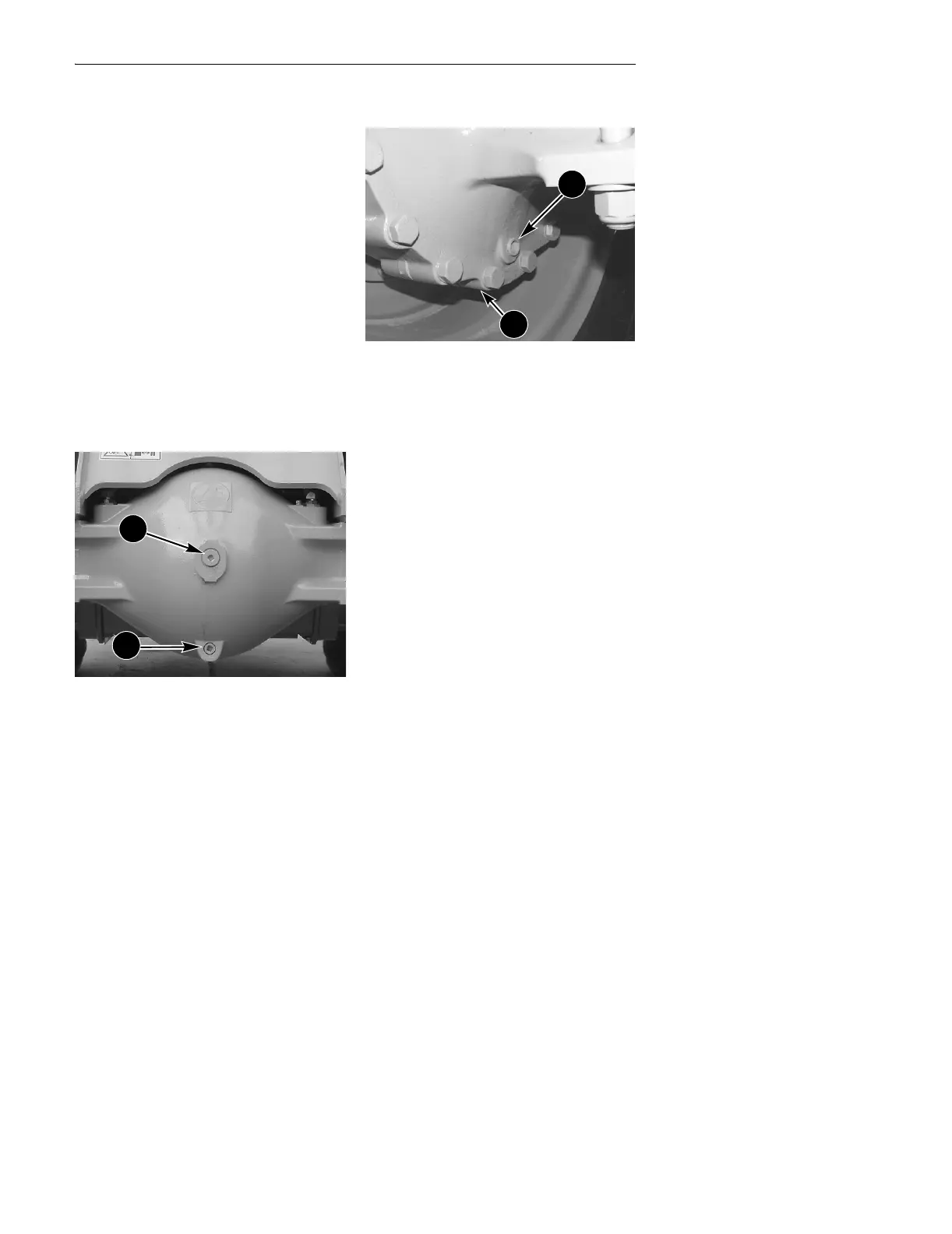

BD02B074
1. OIL LEVEL AND FILLER PLUG
2. DRAIN PLUG
4. Remove the the drain plugs from
the planetary ends of the axle.
Drain the oil from both planetary
ends of the axle. The drain plug
can be located in either location,
see the following photo.
BD00C007
1. DRAIN PLUG
2. DRAIN PLUG
5. Clean the oil level and oil filler
plugs.
6. After all oil has been removed,
install and tighten the drain plugs.
7. Install the exact amount of oil in the
center bowl of the axle. See Axle
Service Specifications on 176 in
this manual.
8. Install the oil level and filler plug in
the center bowl of the axle.
