Rear Axle Oil Change
After the first 100 hours of operation
and then every 1000 hours there after.
1. Park the machine on a level
surface. Apply the parking brake
and stop the engine.
2. Have a container that will hold
approximately 42.5 litres (45 U.S.
Quarts) for the front axle and a
container that will hold
approximately 45.4 litres (48 U.S.
Quarts) for the rear axle.
3. With the oil warm from operation,
remove the oil level and filler plug
from the beam of the axle and the
drain plugs from the planetary ends
of the axle. Drain the oil from the
planetary ends of the axle.
BD00C010
BD00C007

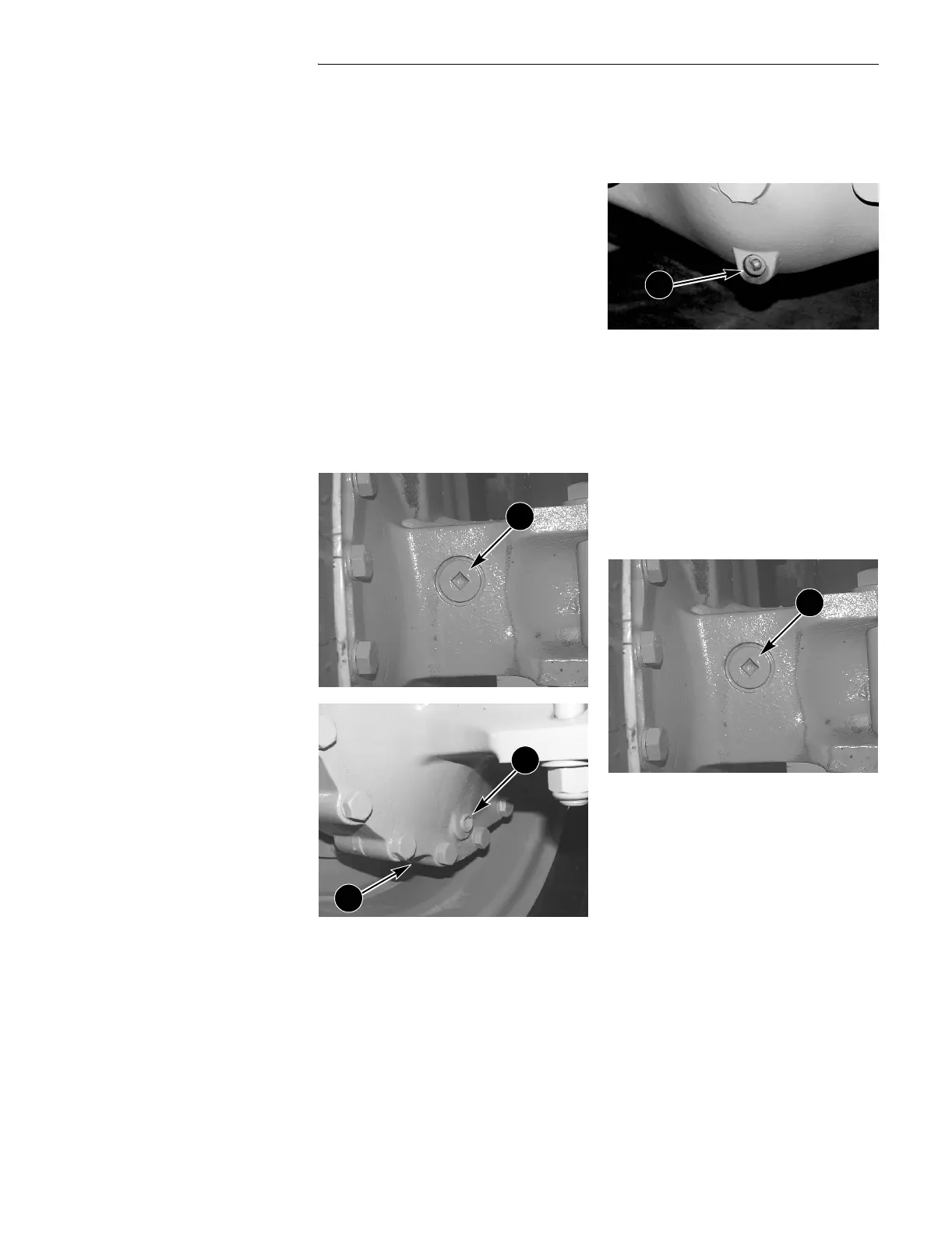

1. OIL LEVEL AND FILLER PLUG
2. DRAIN PLUG FOR PLANETARY
4. Remove the drain plug from center
section of the axle. Drain the oil
from the center section of the axle.
BD00B002
3. DRAIN PLUG FOR AXLE CENTER
SECTION
5. Clean the oil level and oil filler plug
and the drain plugs.
6. After all oil has been removed,
install and tighten the drain plugs.
7. Install the exact amount of oil in the
axle. See Axle Service
Specifications on 176 in this
manual.
BD00B002
1. OIL LEVEL AND FILLER PLUG
8. Install the oil level and filler plug in
the beam of the axle.
