Case 921C - SEAT BELT; OPERATING INSTRUCTIONS; BEFORE STARTING THE ENGINE

INSTRUMENTS/CONTROLS
91
RIGHT PAGE
Bur 6-34090EUR

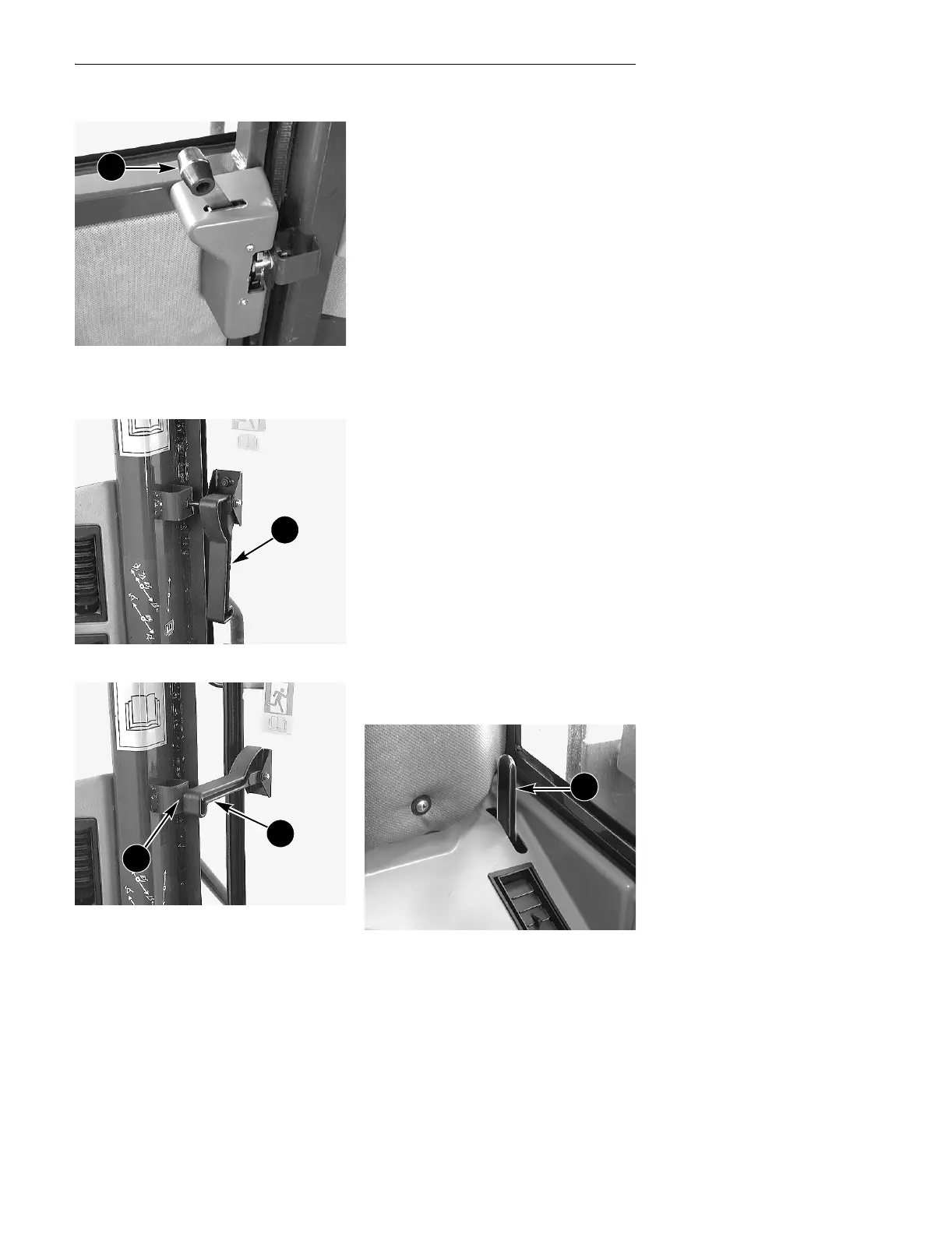

Door Latch
RD97F218
1. PUSH TO OPEN DOOR
Window Latch
RD98K301
1. LIFT TO OPEN
RD98K302
1. LATCH PIN
2. HOLD LATCH
The window can be kept partially open
by lifting the Hold Latch and sliding it
back on the Latch Pin until the Hold
Latch locks in the Latch Pin.
The window may be opened and
locked against the side of the cab. To
do this pull the hold latch toward the
rear of the cab when the window is
partially open. This will unlatch the
window and allow the window to swing
back against the cab and lock.
To release the window from the full
open position, pull on the window
release in the right hand rear corner of
the cab.
Window Retainer Latch
RD97F173
1. PULL TO RELEASE WINDOW
1
1
1
2
1
