Case 921C - Page 25

To Next Page

To Previous Page

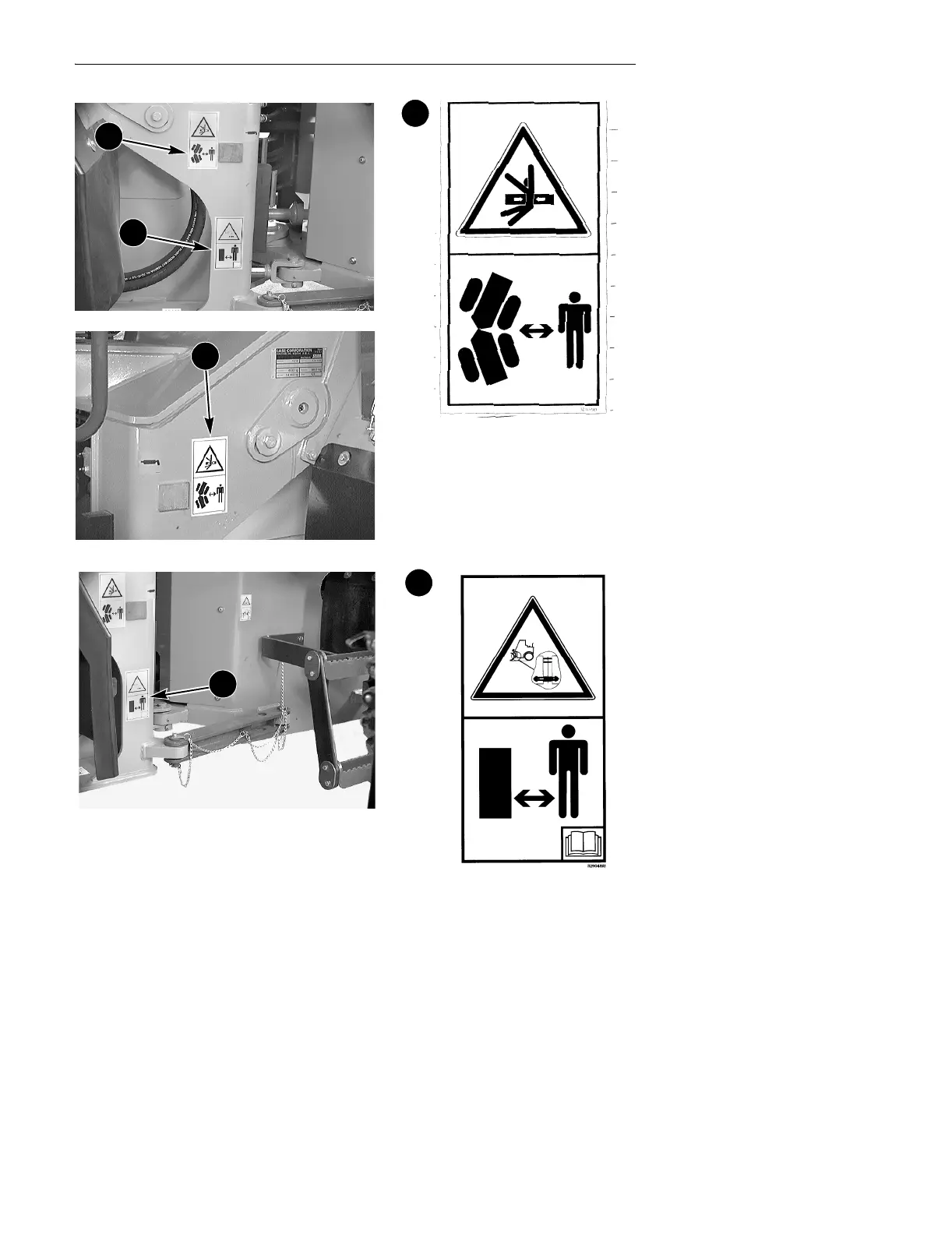

SAFETY/DECALS/HAND SIGNALS

RIGHT PAGE

Bur 6-34090EUR

RD98M011

RD98K362

323695A1

CRUSH HAZARD

Keep Clear

RD98K363

329048A1

CRUSH HAZARD

Engage Lock Link Before

Service or Transport
