SAFETY/DECALS/HAND SIGNALS

RIGHT PAGE

Bur 6-34090EUR

33269A1

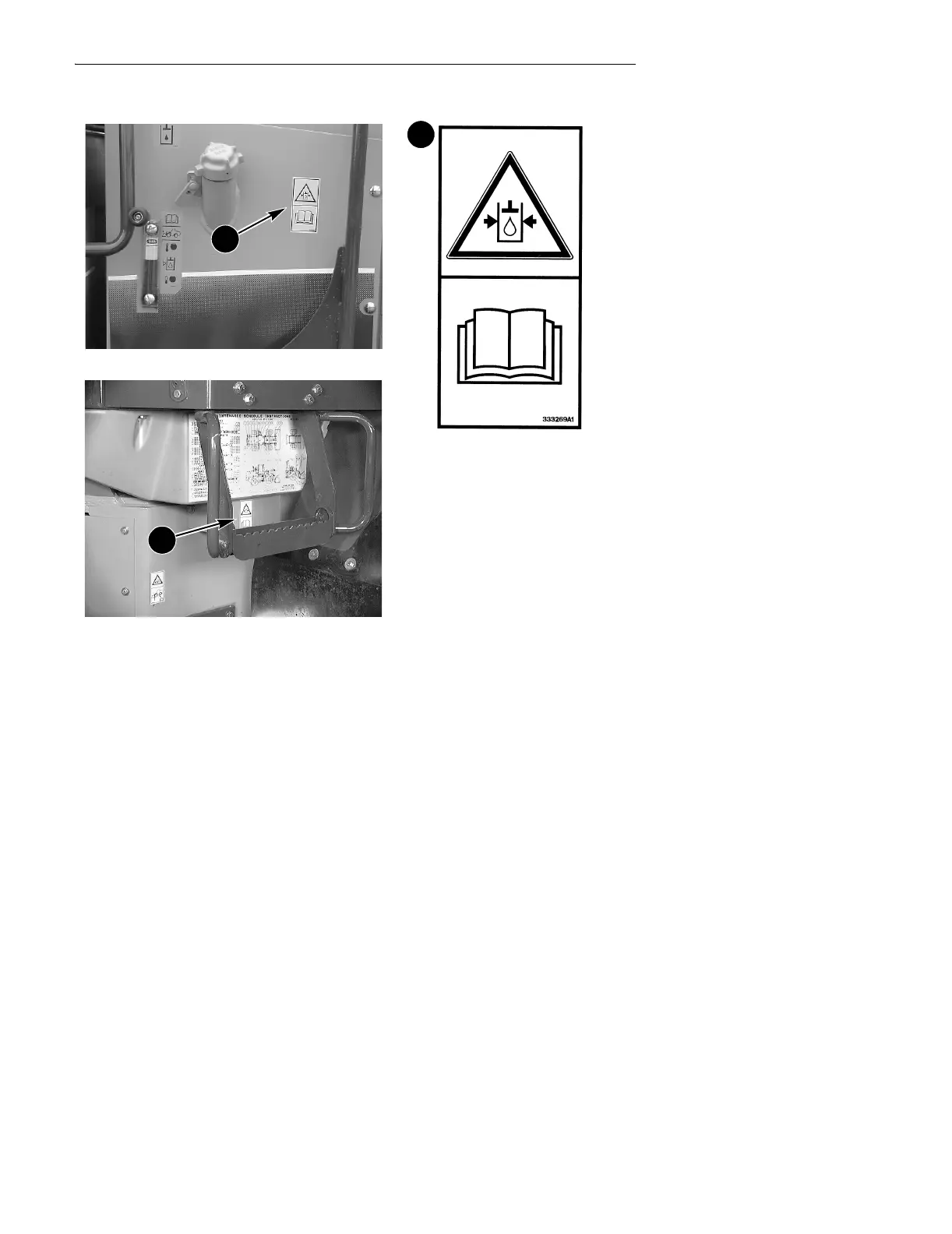

HAZARD

Pressurized System

Relieve Pressure Before

Maintenance.

BD02B076

RD98M010
