SAFETY/DECALS/HAND SIGNALS

LEFT PAGE

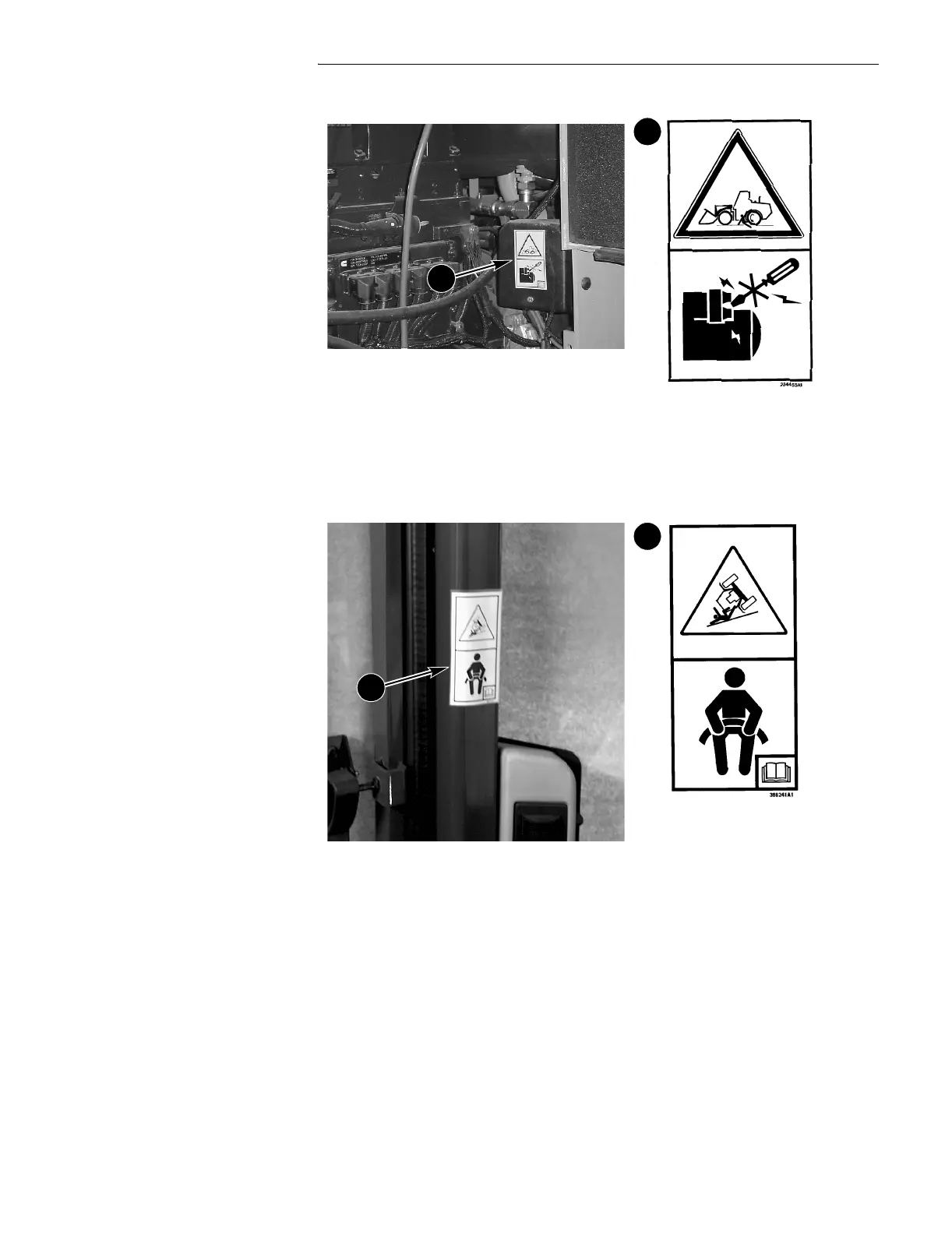

Bur 6-34090EUR

334455A1

Start Engine from

Operator’s Seat Only,

Transmission in

Neutral.

BD02B054

386241A1

Use Seat Belt. Avoid

Crushing Do Not Jump

if Machine Tips.

RP98N335
