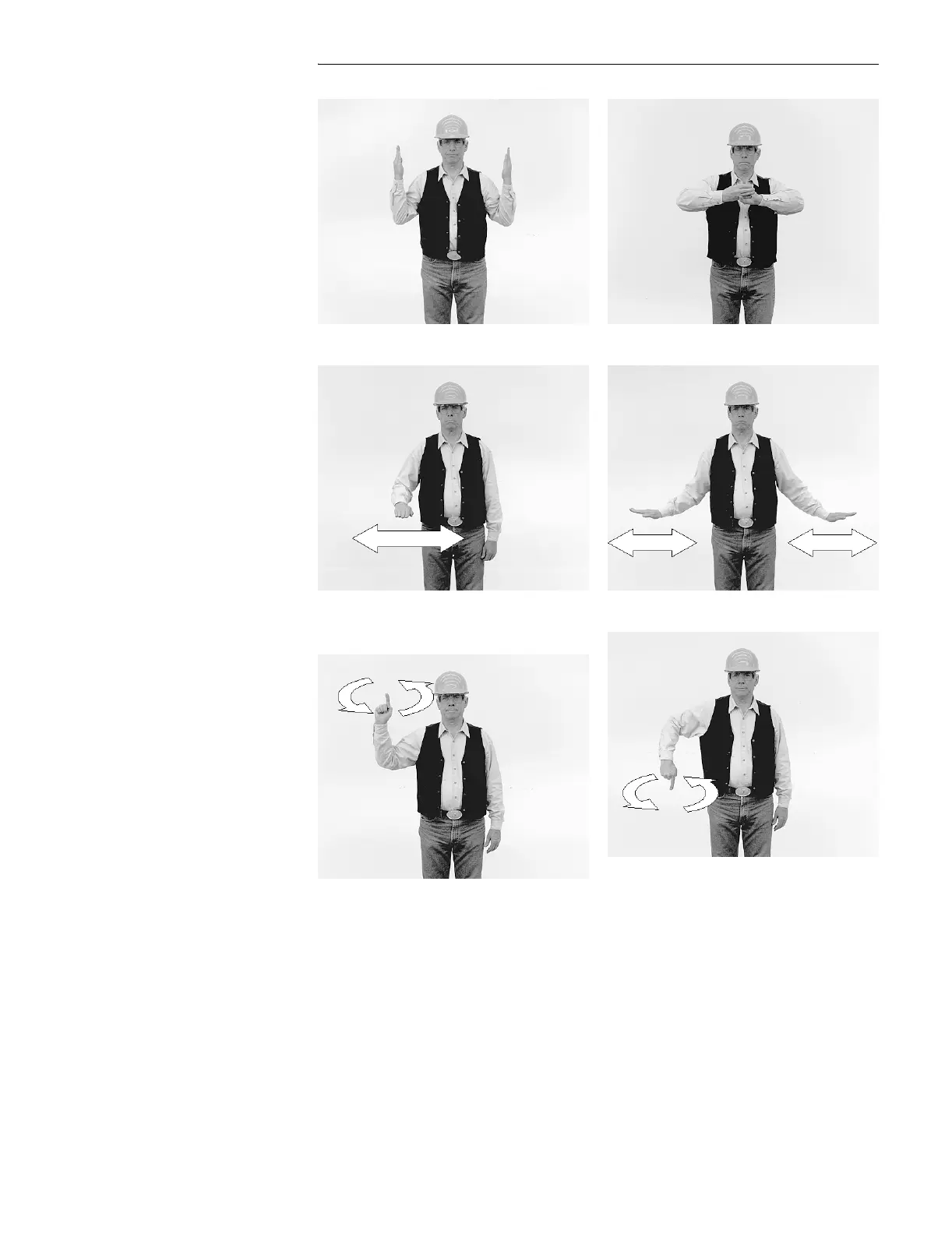

SAFETY/DECALS/HAND SIGNALS

LEFT PAGE

Bur 6-34090EUR

BP97D030

GO THIS FAR

BI97D029

STOP

Move one hand back and forth.

BI97D028

RAISE BUCKET

BP97D060

ALL STOP AND HOLD

BI97D021

EMERGENCY STOP

BI97D027

LOWER BUCKET
