INSTRUMENTS/CONTROLS
50
LEFT PAGE
Bur 6-34090EUR
INSTRUMENT PANEL INDICATORS
BD02B020

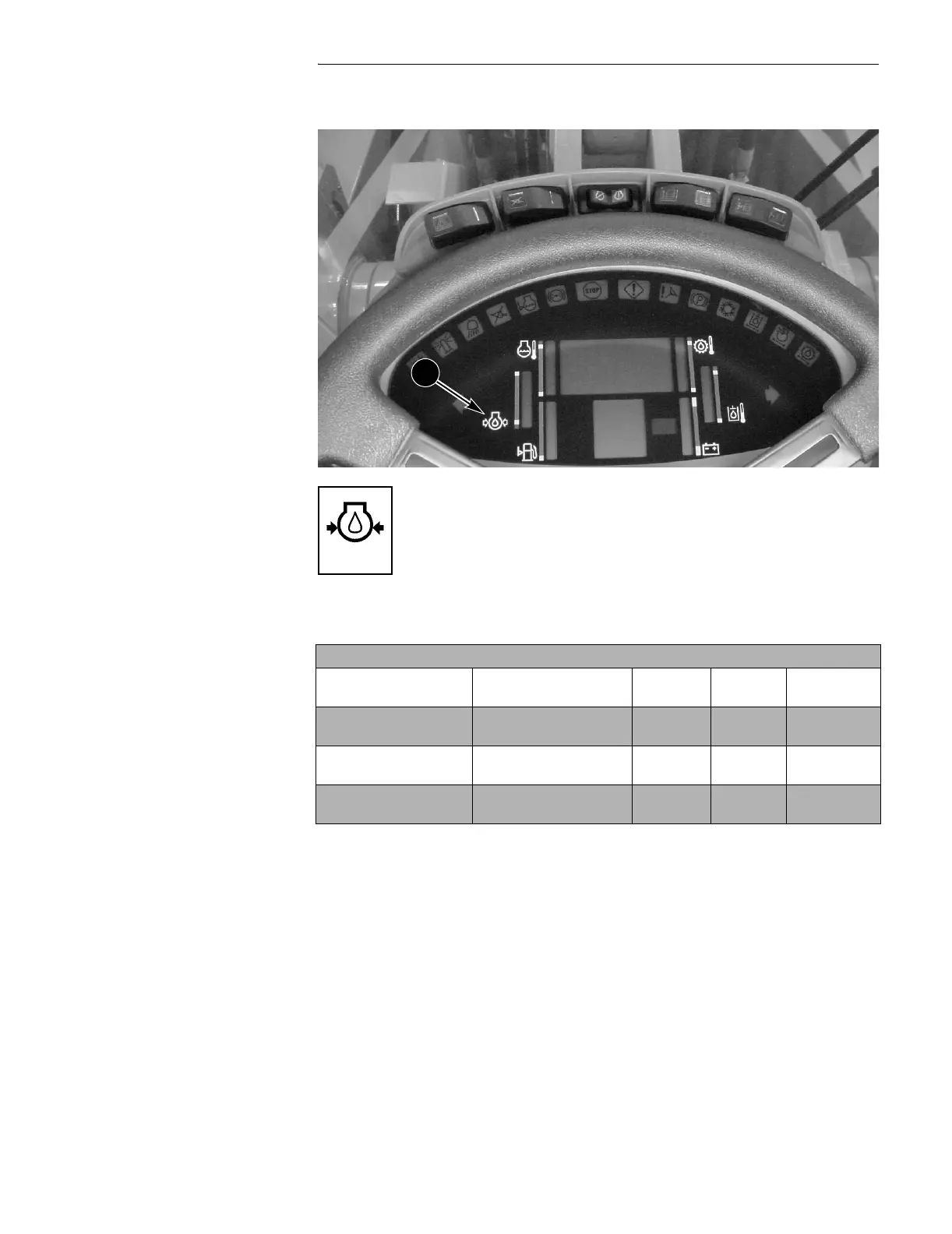

19. ENGINE OIL PRESSURE GAUGE
The engine oil pressure gauge indicates the oil pressure in the engine
lubrication system. The engine oil pressure is shown with indicator bars. Normal
operation is in the green zone. When the oil pressure decreases below a safe
operating pressure, the bars move into the red zone and flash and the warning
alarm sounds continuously. The stop master indicator turns red. The machine must not be
operated when the oil pressure is in the red zone.
NOTE: Stop the engine immediately and correct the problem.
ENGINE OIL PRESSURE GAUGE
Gauge
Indication
Condition Master
Indicator
Gauge
Status
Alarm
Status
0 to 70 kPa
(0 to 10 psi)
Very low
(too low to run engine)
Stop
(Red)
Flashes Continuous
70 to 110 kPa
(10 to 16 psi)
Low
(above low idle)
110 kPa and above
(16 psi and above)
Normal
(above low idle)
19
BS99D060
