Case 921C - Page 95

INSTRUMENTS/CONTROLS
89
RIGHT PAGE
Bur 6-34090EUR

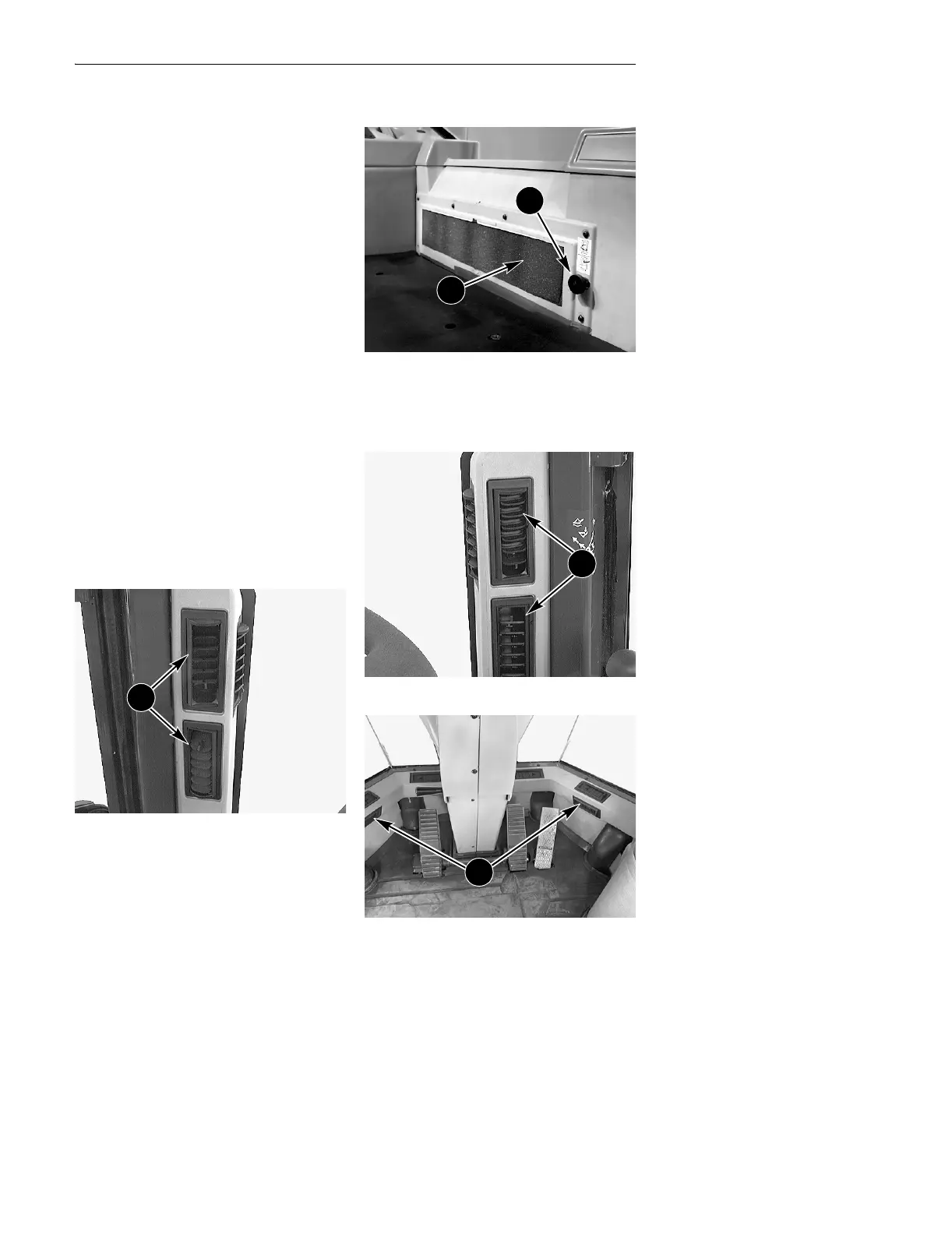

Recirculation Air Louvers
The recirculation air louvers are behind
the operators seat next to the floor.
When open, air is recirculated in the
cab. To open the louvers turn the knob
clockwise. To close the louvers turn the
knob counterclockwise.
NOTE: Always have these louvers
open for maximum cooling with the air
conditioning or maximum heat with the
heater.
Main Air Louvers
The louvers on the RH and LH side in
front of the console direct air flow back
to the operator.
The lower front louvers direct air flow
back to the operator.
RD98K323
1. MAIN LOUVERS
BD00B005
1. KNOB- LOOSEN AND SLIDE KNOB AS
REQUIRED TO OPEN OR CLOSE
LOUVERS
2. RECIRCULATION LOUVERS (BEHIND
FILTER)
RD98K303
1. MAIN LOUVERS
RD97F194
1. MAIN LOUVERS
1
1
2
1
1
