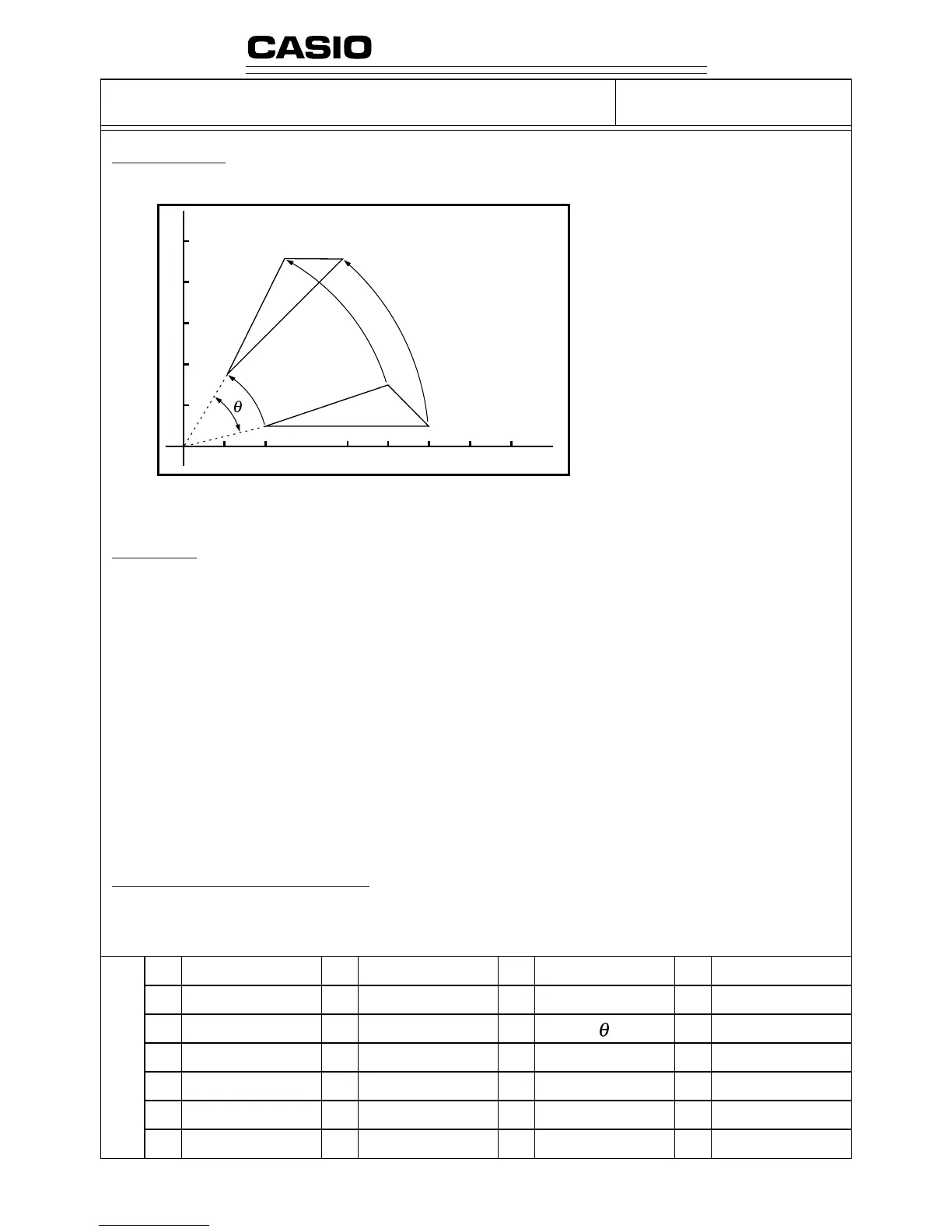

PROGRAM SHEET
Program for
Rotating a Figure
Description
Formula for coordinate transforma-
tion:
(x, y) # (x', y')
x' = x cos
'
– y sin
'
y' = x sin
'
+ y cos
'
Graphing of rotation of any geometric figure by
'
degrees.
Example
To rotate by 45° the triangle defined by points A (2, 0.5), B (6, 0.5), and C (5, 1.5)
Notes
• Use the cursor keys to move the pointer around the display.
• To interrupt program execution, press A while the graphic screen is on the display.
• The triangle cannot be drawn if the result of the coordinate transformation operation exceeds
View Window parameters.
Preparation and operation
• Store the program written on the next page.
• Execute the program as shown below.
No.
5
Memory Contents
To Next Page
