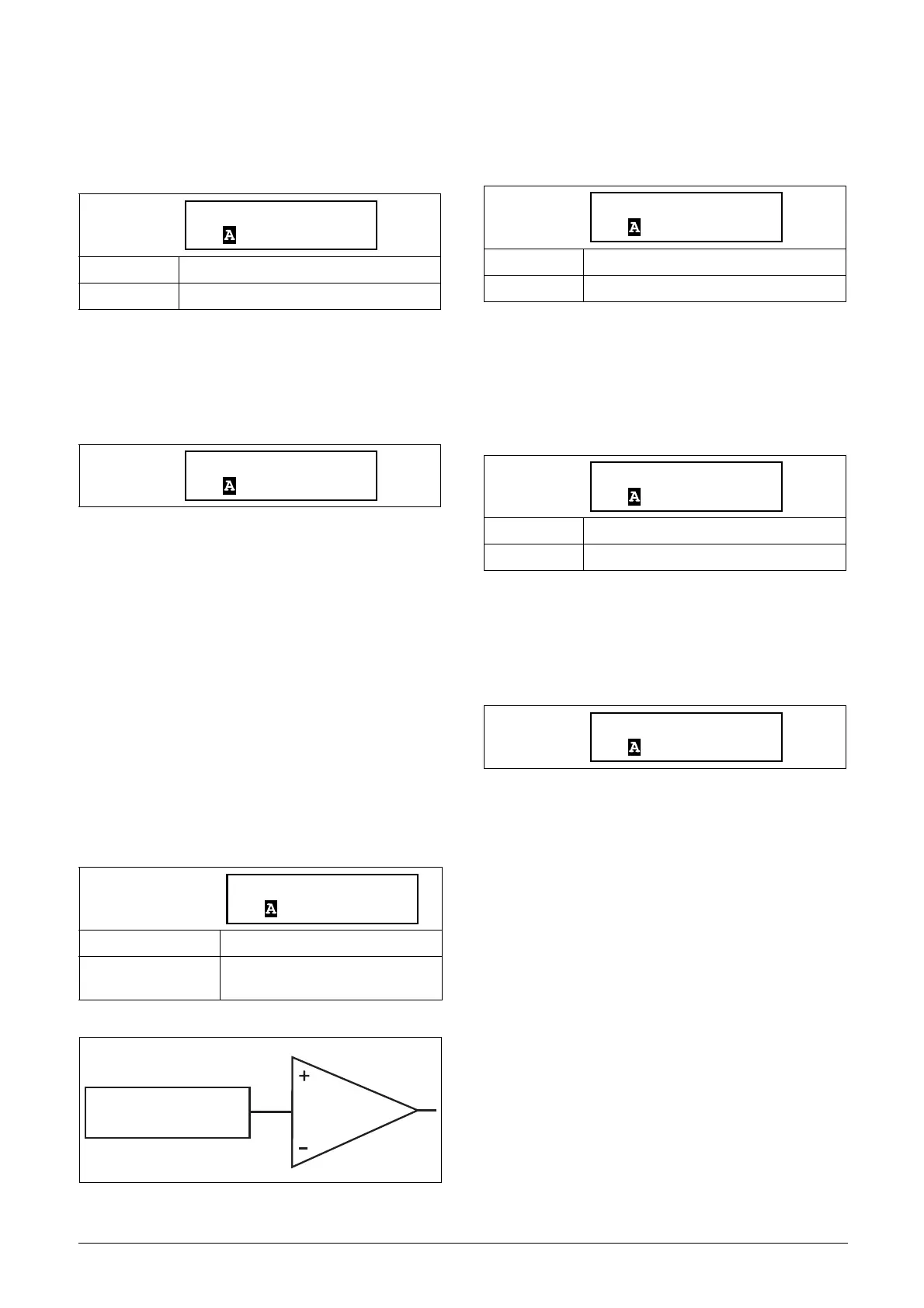

CG emotron TSA Series User Manual

120 Functionality CG Drives & Automation, 01-5980-01r2
Analogue Comparator 1 Reset Delay
[6117]
The reset of the output signal for the analogue comparator 1
is delayed with the set time in this menu. See Fig. 68.
Analogue Comparator 1 Timer Value
[6118]
The actual timer value for analogue comparator 1 is viewed
in this menu.
Setup Analogue comparators 1 - 4
[612] - [614]
Refer to the descriptions for analogue comparator 1.
Setup Digital Comparator 1 [615]
Digital comparators, parameter group.
Digital Comparator 1 Input
[6151]page 135
Selection of the input signal for digital comparator 1 (CD1).
The output signal CD1 is set high if the selected input
signal is active. See Fig. 69.
The output signal can be programmed to the relay outputs or
used as a source for the virtual connections [560].
Fig. 69 Digital comparator.
Digital Comparator 1 Set Delay [6152]
The activation of the output signal for the digital comparator
1 is delayed with the set value in this menu. See also Fig. 68,
page 119.
Digital Comparator 1 Reset Delay
[6153]
The reset of the output signal for the digital comparator 1 is
delayed with the set value in this menu. See also Fig. 68, page
119.
Digital Comparator 1 Timer Value
[6154]
The actual timer value for digital comparator 1 is viewed in
this menu.
Setup Digital Comparators 2 - 4 [616]-
[618]
Refer to the description of Digital Comparator 1. Default for
CD2 [6161] is “DigIn 1”. For CD3 [6171] the default is
“Trip”, and for CD4 [6181] the default is “Ready”.
Default: 0:00:00.0 (hours:minutes:seconds)
Range: 0:00:00.0–9:59:59.9
Read only
Default: Operation
Selection:
Same selection as in menu Relay 1
[551], page 112.
6117 CA1 Res Dly
Stp 0:00:00.0
6118 CA1 Tmr Val
Stp 0:00:00.0
6151 CD1
Stp Operation
Input signal for CD1 [6151]
Digital comparator 1
CD1
Default: 0:00:00.0 (hours:minutes:seconds)
Range: 0:00:00.0–9:59:59.9
Default: 0:00:00.0 (hours:minutes:seconds)
Range: 0:00:00.0–9:59:59.9
Read only
6152 CD1 Set Dly
Stp 0:00:00.0
6153 CD1 Res Dly
Stp 0:00:00.0
6154 CD1 Tmr Val
Stp 0:00:00.0
