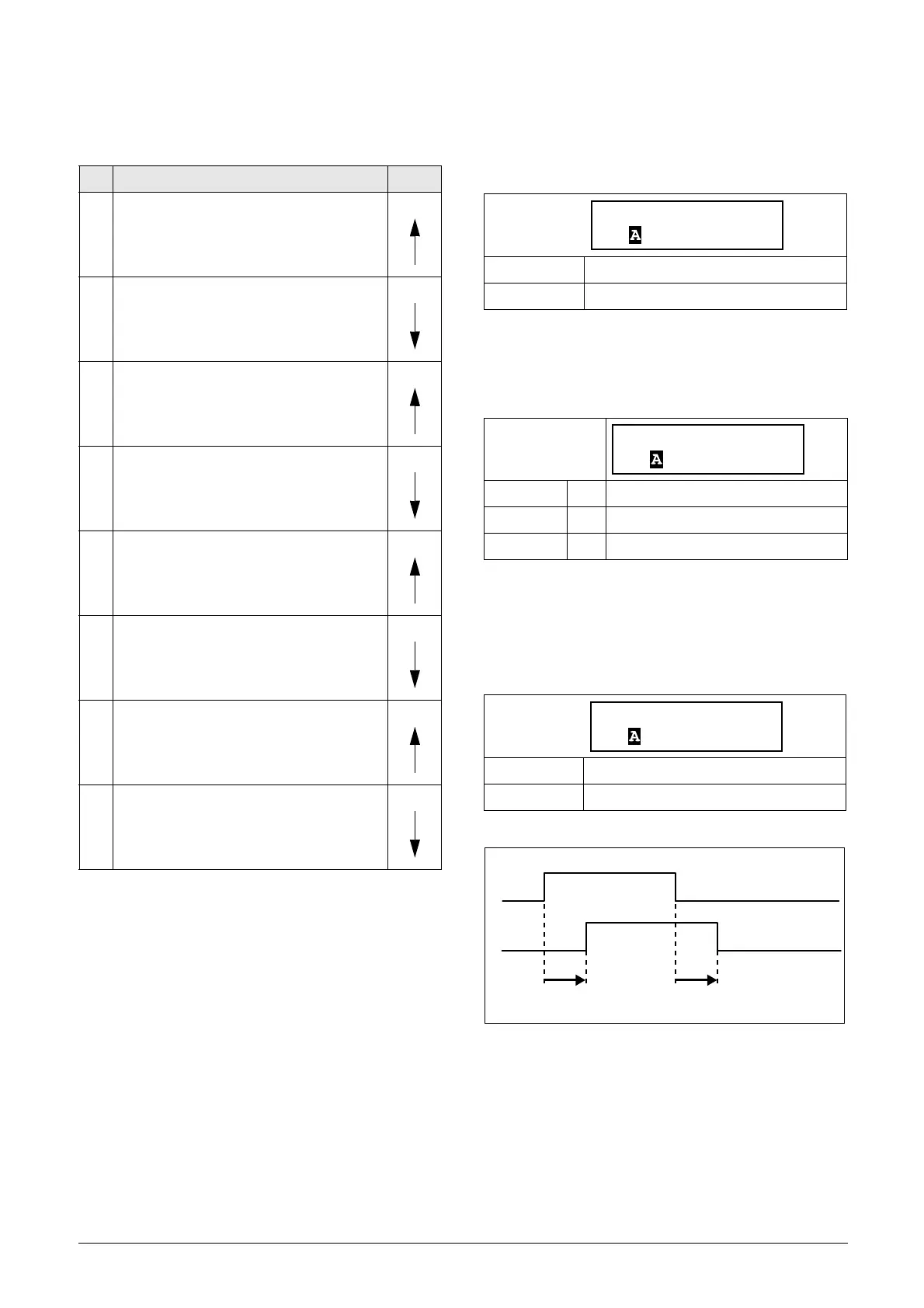

CG Drives & Automation, 01-5980-01r2 Functionality 119
Analogue Comparator 1
Level Low [6113]
Sets the analogue comparator low level, with unit and range
according to the selected value in menu [6111].
Analogue Comparator 1 Type [6114]
Selects the analogue comparator type, i.e. hysteresis or
window type. See Fig. 64 and Fig. 65, page 116.
Analogue Comparator 1 Set Delay
[6116]
The output signal for the analogue comparator 1 is delayed
with the set value in this menu. See Fig. 68.
Fig. 68 Set/reset delay of output signal.
Table 32 Comments to Fig. 67 regarding “Window”
selection.
No. Description
Window
1
The reference signal passes the Level LO
value from below (signal inside Window
band), the comparator CA1 output is set high.
2
The reference signal passes the Level LO
value from above (signal outside Window
band), the comparator CA1 is reset, output is
set low.
3
The reference signal passes the Level HI
value from above (signal inside Window
band), the comparator CA1 output is set high.
4
The reference signal passes the Level LO
value from above (signal outside Window
band), the comparator CA1 is reset, output is
set low.
5
The reference signal passes the Level LO
value from below (signal inside Window
band), the comparator CA1 output is set high.
6
The reference signal passes the Level HI
value from below (signal outside Window
band),the comparator CA1 is reset, output is
set low.
7
The reference signal passes the Level HI
value from above (signal inside Window
band), the comparator CA1 output is set high.
8
The reference signal passes the Level LO
value from above (signal outside Window
band), the comparator CA1 is reset, output is
set low.
Default: 20.0
Range: See [6112].
Default: Hysteresis
Hysteresis 0 Hysteresis type comparator
Window 1 Window type comparator
Default: 0:00:00.0 (hours:minutes:seconds)
Range: 0:00:00.0–9:59:59.9
6114 CA1 Type
Stp Hysteresis
6116 CA1 Set Dly
Stp 0:00:00.0
