118 Functionality CG Drives & Automation, 01-5980-01r2
Analogue Comparator 1,
Level High [6112]
Sets the analogue comparator high level, with range
according to the selected value in menu [6111].
Example
This example describes, both for hysteresis and window type
comparators, the normal use of the constant level high and
low. The function is used for temperature control. Follow the
step by step explanation in Table 31 and Table 32.

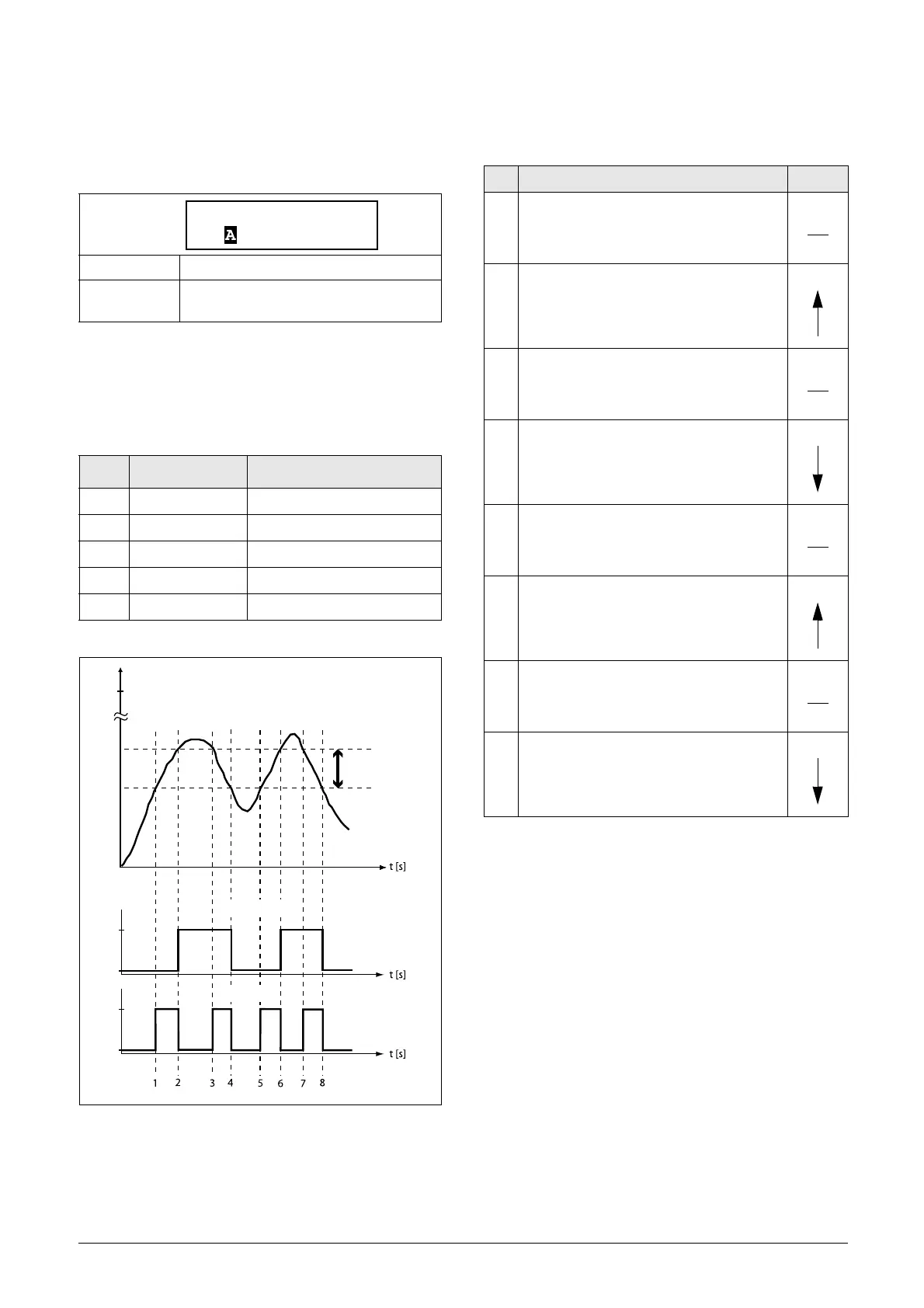

Fig. 67
Default: 30.0
Range:
1=1 W, 0.1 A, 0.1 V, 1%, 0.1°C, 1 kWh, 1h,
or 0.001 in [322]
Menu Function Setting
325 Process Max Temperature: 100°C
6111 CA1 Value PT100_1 (°C)
6112 CA1 Level HI 50°C
6113 CA1 Level LO 40°C
6114 CA1 Type Window
Max
Temp.
50°C
40°C
CA1 Level HI
CA1 Level LO
CA1 output
High
Low
High
Low
Hysteresis
Window
Hysteresis/
window band
Table 31 Comments to Fig. 67 regarding “Hysteresis”
selection.
No. Description
Hysteresis
1
The reference signal passes the Level LO
value from below (positive edge), the
comparator CA1 does not change, output
stays low.
2
The reference signal passes the Level HI
value from below (positive edge), the
comparator CA1 output is set high.
3
The reference signal passes the Level HI
value from above (negative edge), the
comparator CA1 does not change, output
stays high.
4
The reference signal passes the Level LO
value from above (negative edge), the
comparator CA1 is reset, output is set low.
5
The reference signal passes the Level LO
value from below (positive edge), the
comparator CA1 does not change, output
stays low.
6
The reference signal passes the Level HI
value from below (positive edge), the
comparator CA1 output is set high.
7
The reference signal passes the Level HI
value from above (negative edge), the
comparator CA1 does not change, output
stays high.
8
The reference signal passes the Level LO
value from above (negative edge), the
comparator CA1 is reset, output is set low.
