CHC i83 User Manual 66

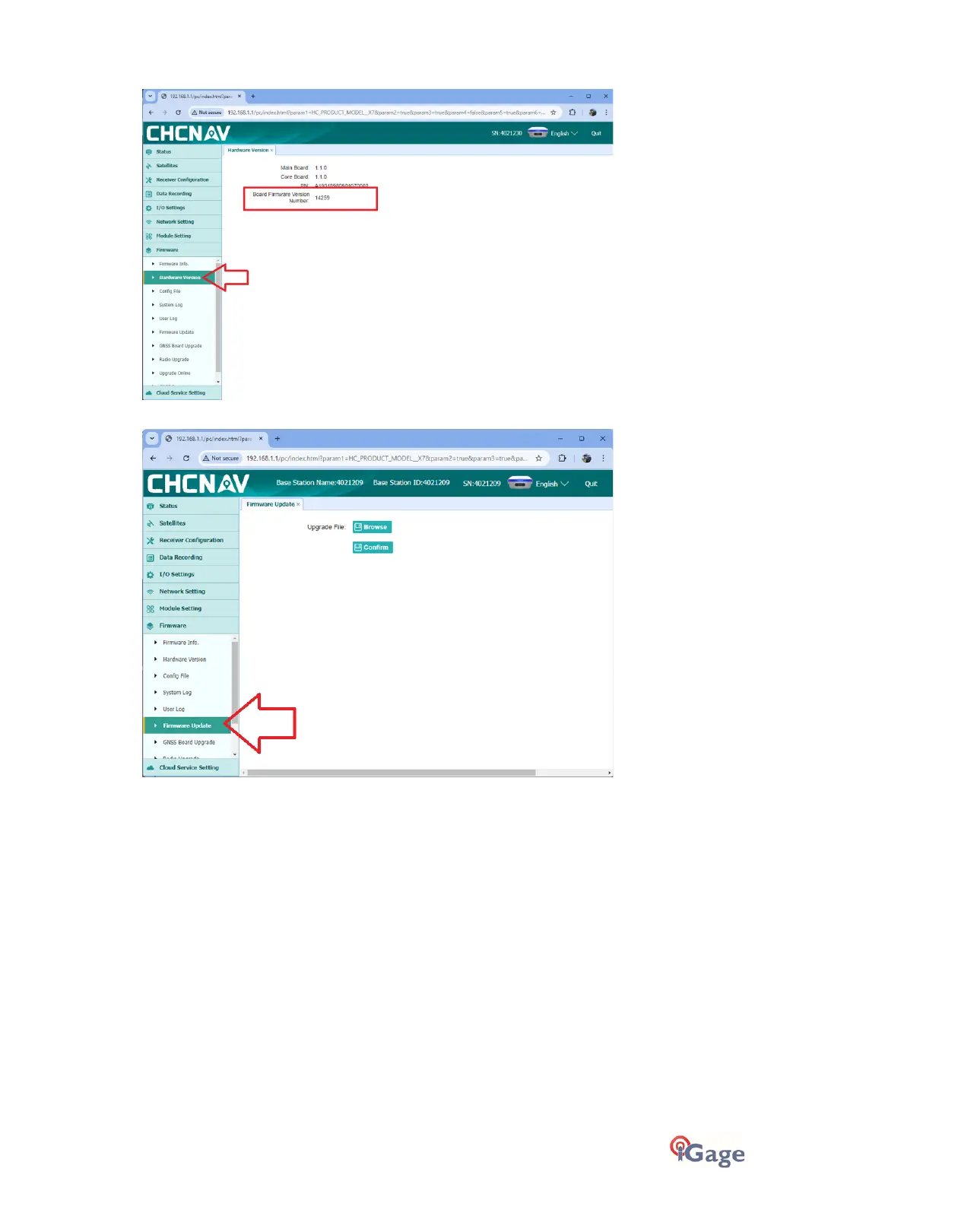

Click on Hardware Version to see the

OEM Board

Firmware:

7. To update the

Main Board

firmware click on

Firmware Update

Then click on Browse

To update the

OEM Board

: click on

GNSS Board Upgrade
