65 CHC i83 User Manual

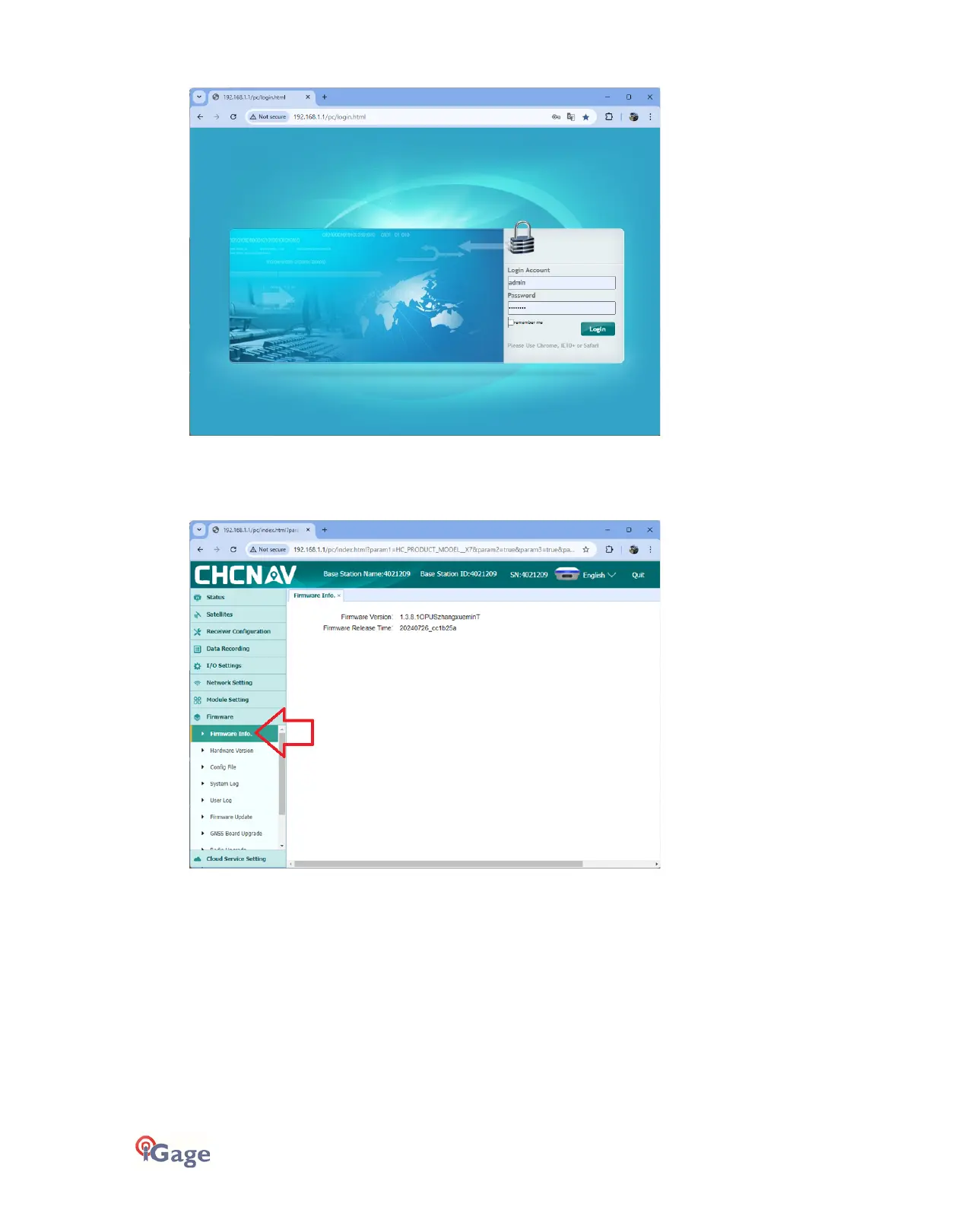

5. Open a browser window and navigate to the address

192.168.1.1

The

admin

and the

Password

password

(lower case).

Click

6. Click on

Firmware

, then

Firmware info

to see the current firmware version:

Main Board

Firmware version:

Main Page
