Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding the Cisco Unified IP Phones 7962G, 7942G, 7961G, 7961G-GE, 7941G, and 7941G-GE

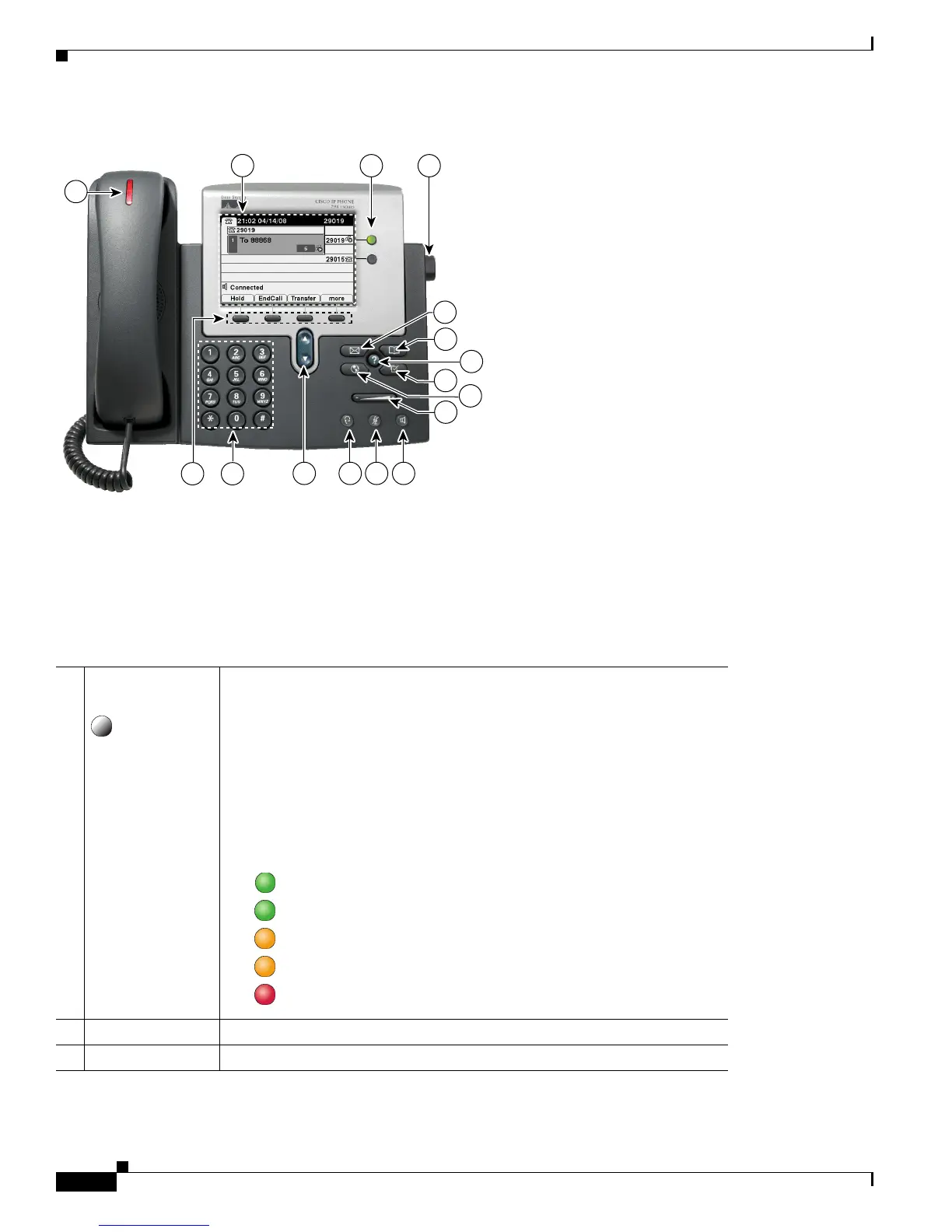

Figure 1-4 Cisco Unified IP Phone 7941G and 7941G-GE
Table 1-1 describes the buttons on the Cisco Unified IP Phones 7962G, 7942G, 7961G, 7961G-GE,
7941G, and 7941G-GE,
Table 1-1 Features on the Cisco Unified IP Phone 7962G, 7942G, 7961G, 7961G-GE, 7941G, and 7941 G-GE
186846
4
5
6
7
9
101112131415
16
13
8
1
2
1 Programmable
buttons
Depending on configuration, programmable buttons provide access to:
• Phone lines (line buttons)
• Speed-dial numbers (speed-dial buttons, including the BLF speed-dial
feature)
• Web-based services (for example, a Personal Address Book (PAB)
button)
• Phone features (for example, a Privacy button)
The buttons illuminate to indicate status:
Green, steady—Active call
Green, flashing—Held call
Amber, steady—Privacy in use
Amber, flashing—Incoming call
Red steady—Remote line in use (shared line, BLF status, or active
Mobile Connect call)
2 Phone screen Shows phone features.
3 Footstand button Allows you to adjust the angle of the phone base.
To Next Page
