Cisco 7962G Administration Guide

3-7
Cisco Unified IP Phone Administration Guide for Cisco Unified Communications Manager 7.1
OL-18913-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone

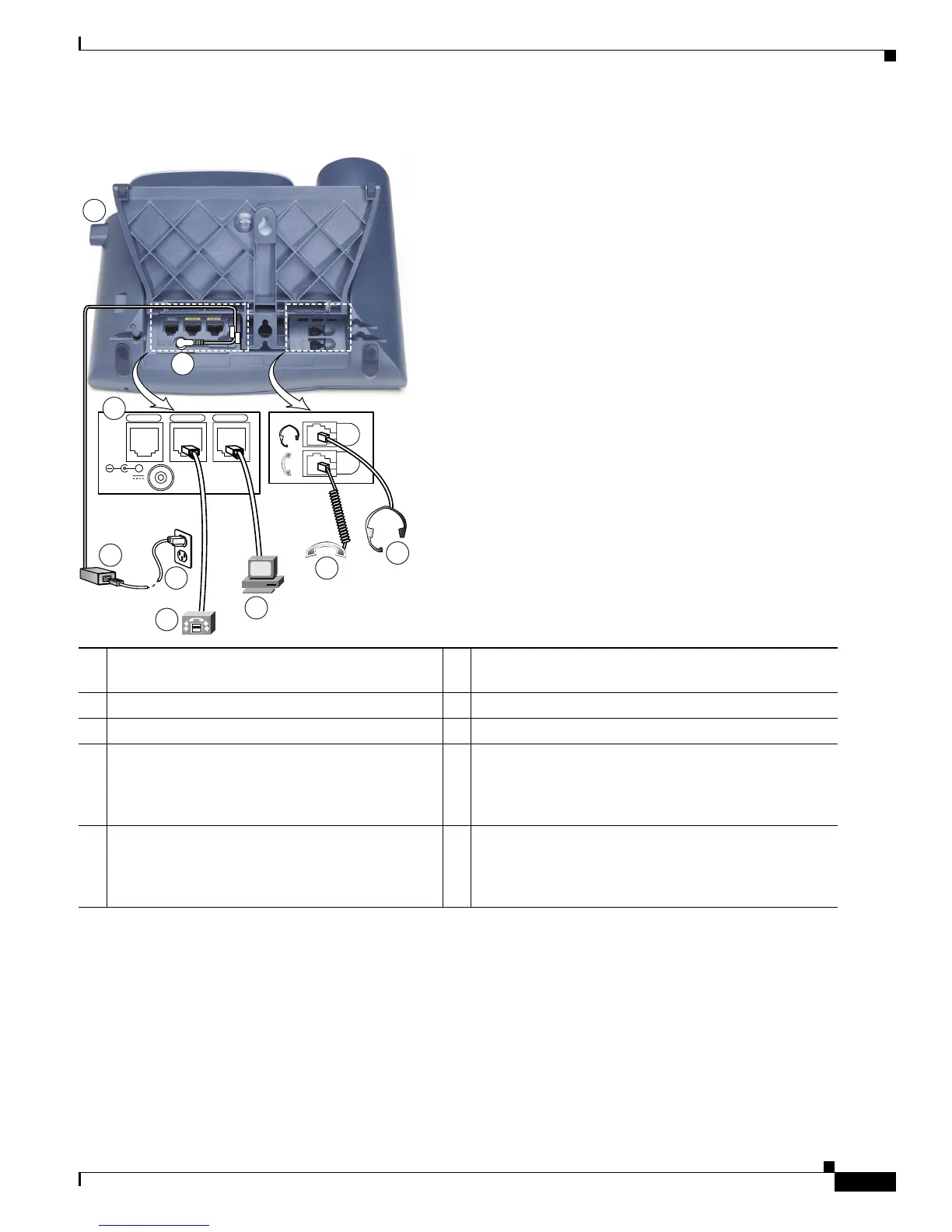

Figure 3-2 Cisco Unified IP Phones 7962G, 7942G, 7961G, 7961G-GE, 7941G, and 7941G-GE Cable Connections
Related Topics
• Adjusting the Placement of the Cisco Unified IP Phone, page 3-9
• Verifying the Phone Startup Process, page 3-12
• Configuring Startup Network Settings, page 3-13
• Configuring Security on the Cisco Unified IP Phone, page 3-13
1
DC adaptor port (DC48V) for phones not provided
with inline power
6
Handset port
2
AC-to-DC power supply
7
Headset port
3
AC power cord
8
Footstand adjustment button
4
Network port (10/100 SW on the
7962G/7942G/7961G/7941G; 10/100/1000 SW
on the 7961G-GE/7941G-GE) for connecting to
the network
9
Auxiliary port (AUX)
5
Access port (10/100 PC on the
7962G/7942G/7961G/7941G; 10/100/1000 PC on
the 7961G-GE/7941G-GE) for connecting your
phone to your computer
AUX
DC48V
10/100 SW 10/100 PC
+
185045
2
9
8
3
4
5
6
7
1

Cisco 7962G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Case material	ABS
Product color	Black, Grey
Wall mountable	Yes
Bluetooth	No
Security algorithms	128-bit AES, 802.1x RADIUS
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Voice codecs	G.711, G.711a, G.722, G.729A, G.729ab, iLBC
Volume control	Digital
Display diagonal	5 \
Display resolution	320 x 222 pixels
Display number of colors	Monochrome
Caller ID	-
Lines quantity	- lines
Phonebook capacity	- entries
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	203.2 mm
Width	266.7 mm
Height	152.4 mm
Weight	1600 g
