7 Overview of controls
7.2 Cab / Operator's platform
67083
79528

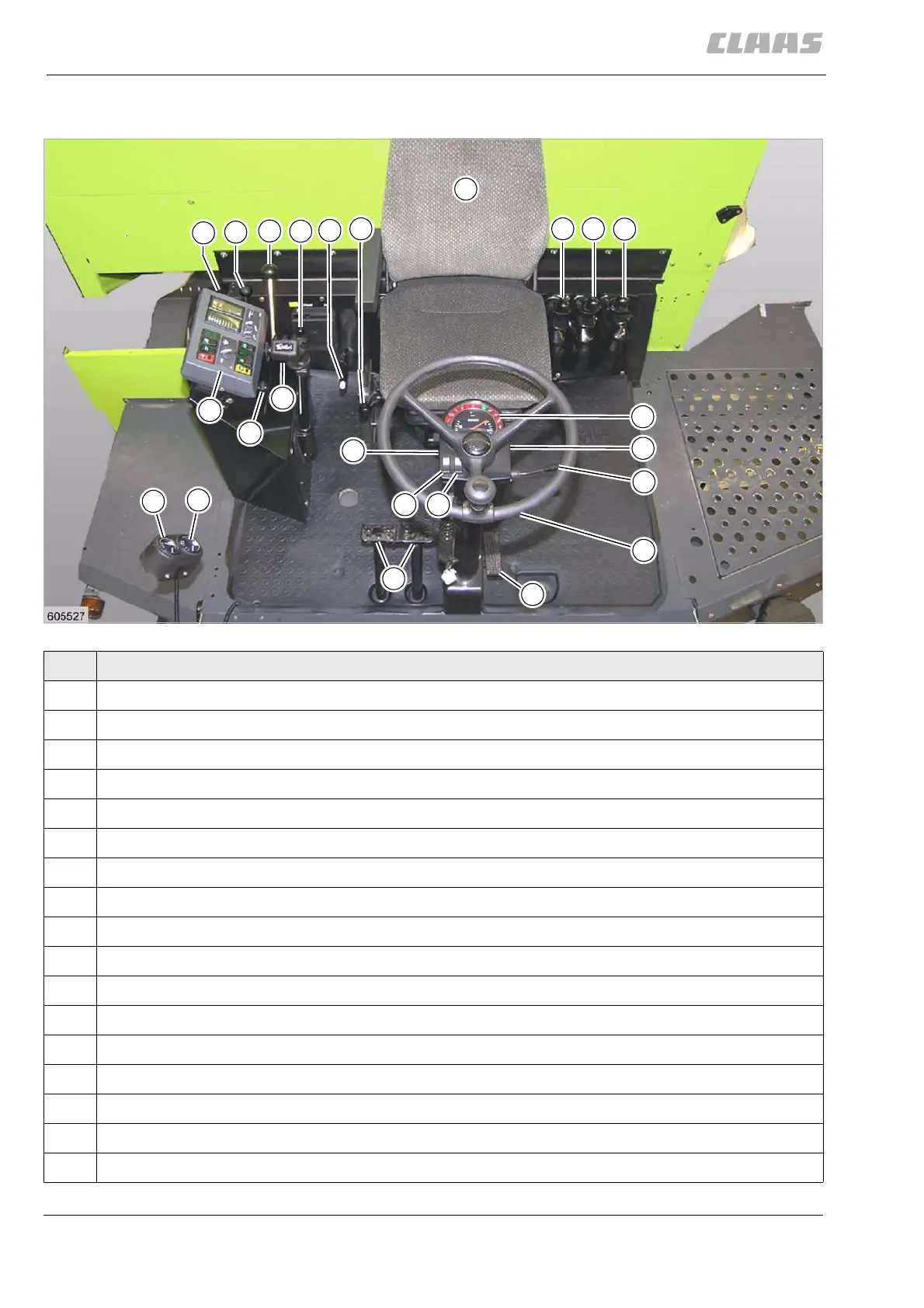

7.2.2 Overview of operator's platform (DOMINATOR 150/140)
19306
2
3
9
10
12
11
5
7
13
15
16
17
18
1
22
23
2
14
2019
6
4
8
21
24
Designation
1 Ground speed control lever with multifunction handle
2 Switch console
3 Returns inspection door
4 Reel speed adjustment crank
5 Gearshift lever
6 Returns inspection door lever
7 Handbrake lever
8 Concave adjusting lever
9 Operator's seat
10 Switches front attachment on and off
11 Switches threshing mechanism on and off
12 Engaging / disengaging the grain tank unloading
13 Combined instrument gauge
14 Hazard warning flasher switch
15 Turn flasher and horn switch
16 Steering wheel
17 Steering column locking pedal
