Claas DOMINATOR 130 - 19 Removing Belt (R42); 20 Installing Belt (R42)

338 00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09
13 Maintenance
13.8 Drive belts / drive chains
67089
– Force the spring-loaded ground drive variable-
speed pulley apart, using a special tool.
– Slacken the bolts that secure the gearbox hous-
ing. Adjust the gearbox housing up or down until
measurement (X) has been obtained (provision for
adjustment ± 3 mm). Retighten the bolts that
secure the gearbox housing.
– Loosen support plate (6). Push down the plate to
locate tightly against the transmission neck at (5),
then tighten the bolts that secure the plate.
– Remove the special tool.
– Whenever the settings have been adjusted, make
a functional test, check for proper adjustments
and correct as required.
Note: The stop bolt (4) serves for limiting the maximum
ground speed according to the German Regulations
Authorizing the Use of Vehicles for Road Traffic.
87272

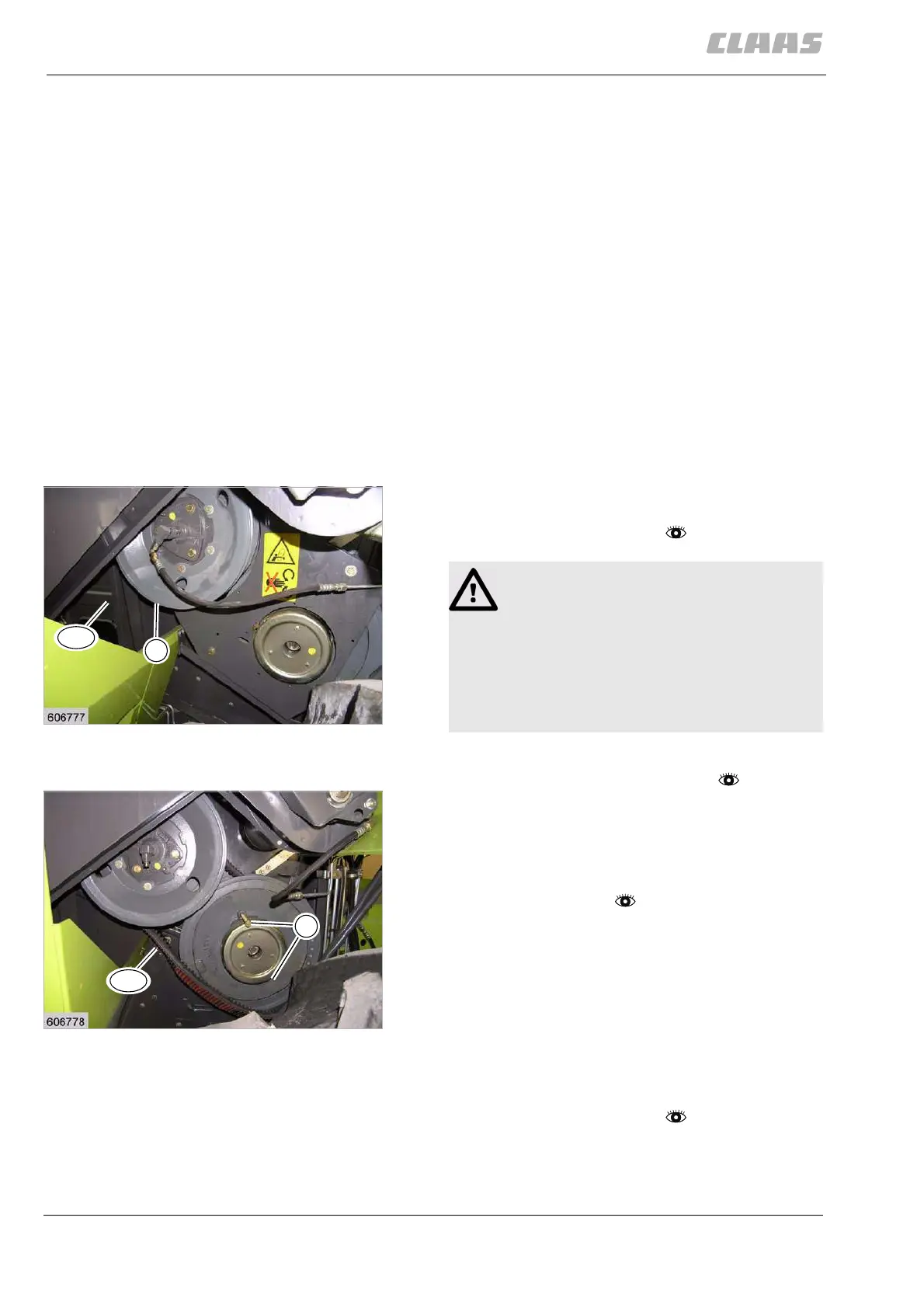

13.8.19 Removing belt (R42)
– Set variable speed drive to lowest speed.
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Remove guards.
– Remove belt (R41) from pulley (1).
– Screw in special tool (2, part no. 00 0236 302 0,
2 pcs.) through the tapped holes of the front pulley
half.
– Screw in bolts (2) until the variable-speed drive is
completely spread apart.
– Remove belt (R42).
87276
13.8.20 Installing belt (R42)
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
107
23399
R41
1
Danger!
Pinch points due to pre-loaded components.
Consequences: Death or serious injuries
– Never move your hands between two pre-
loaded components.
– Use a special tool.
– Avoid the hazard area.
108
23400
R42
2
