5 Prior to initial operation
5.3 Hitch
67081
5.3 Hitch
102219
5.3.1 Installing the trailer hitch (accessories)
– Observe the general warnings at the beginning of
the Prior to initial operation chapter.
– Bolt down hitch block (1) with bolts (2).
The bolt heads must point to the rear.
Tightening torque M14 = 133 Nm
– Bolt down trailer hitch (3) with bolts (4). The bolt
heads point to the rear.
Tightening torque M16 = 207 Nm
– If required, bolt down the bracket for the cutterbar
trailer brake system tear-off cord to bolt (4).
6

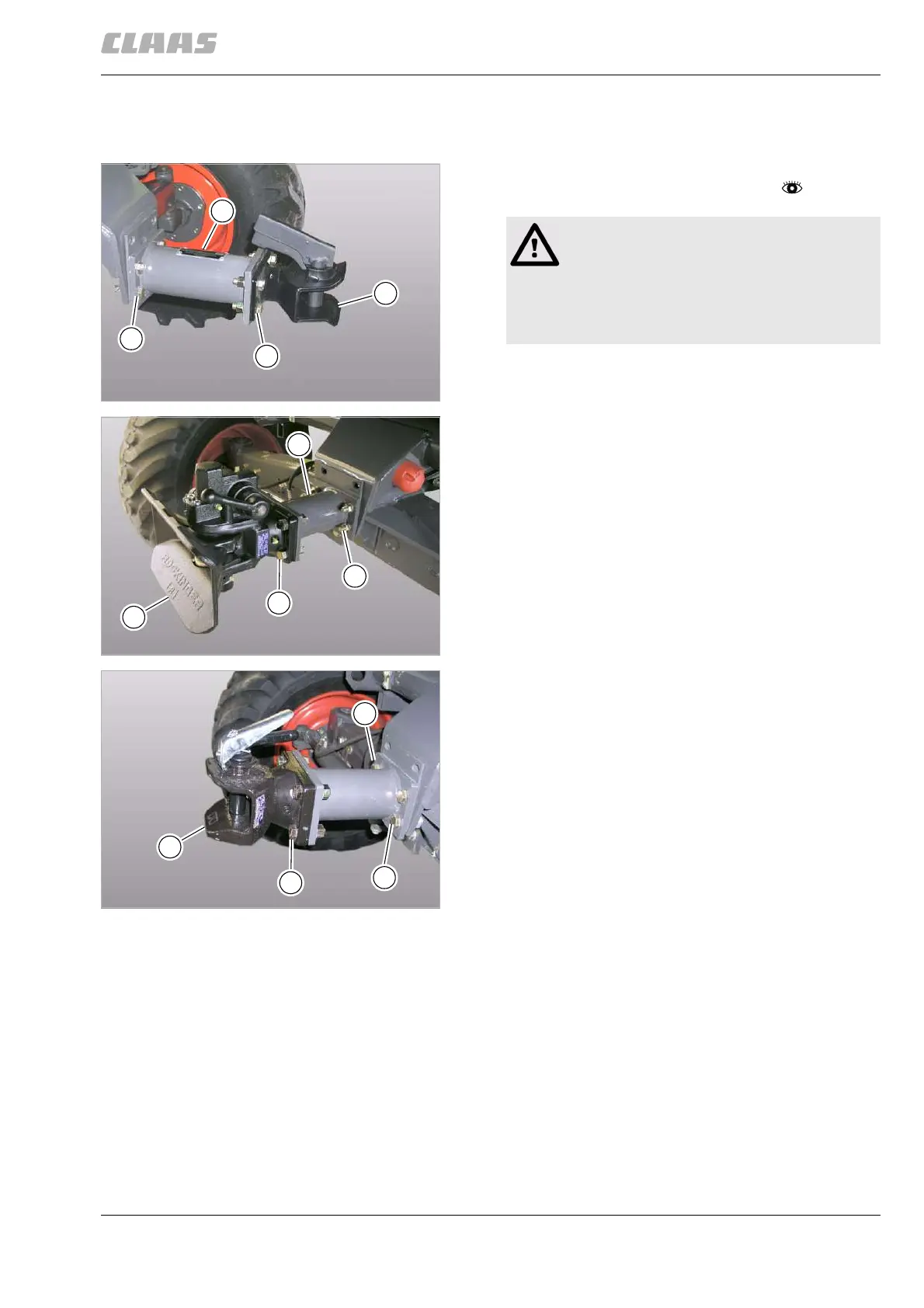

Trailer hitch type AK 64/1 B ...
24699
7
Trailer hitch type 841 ...
36440
8
Trailer hitch type 810 ...
40022
2
4
3
1
2
1
3
4
1
3
4
2
Danger!
Improper mounting of the trailer hitch.
Death or serious injuries!
– Note the prescribed tightening torque for
the trailer hitch.
