Claas DOMINATOR 130 - Installing the Sieves

00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 183
10 Fieldwork settings
10.5 Cleaning unit
67086

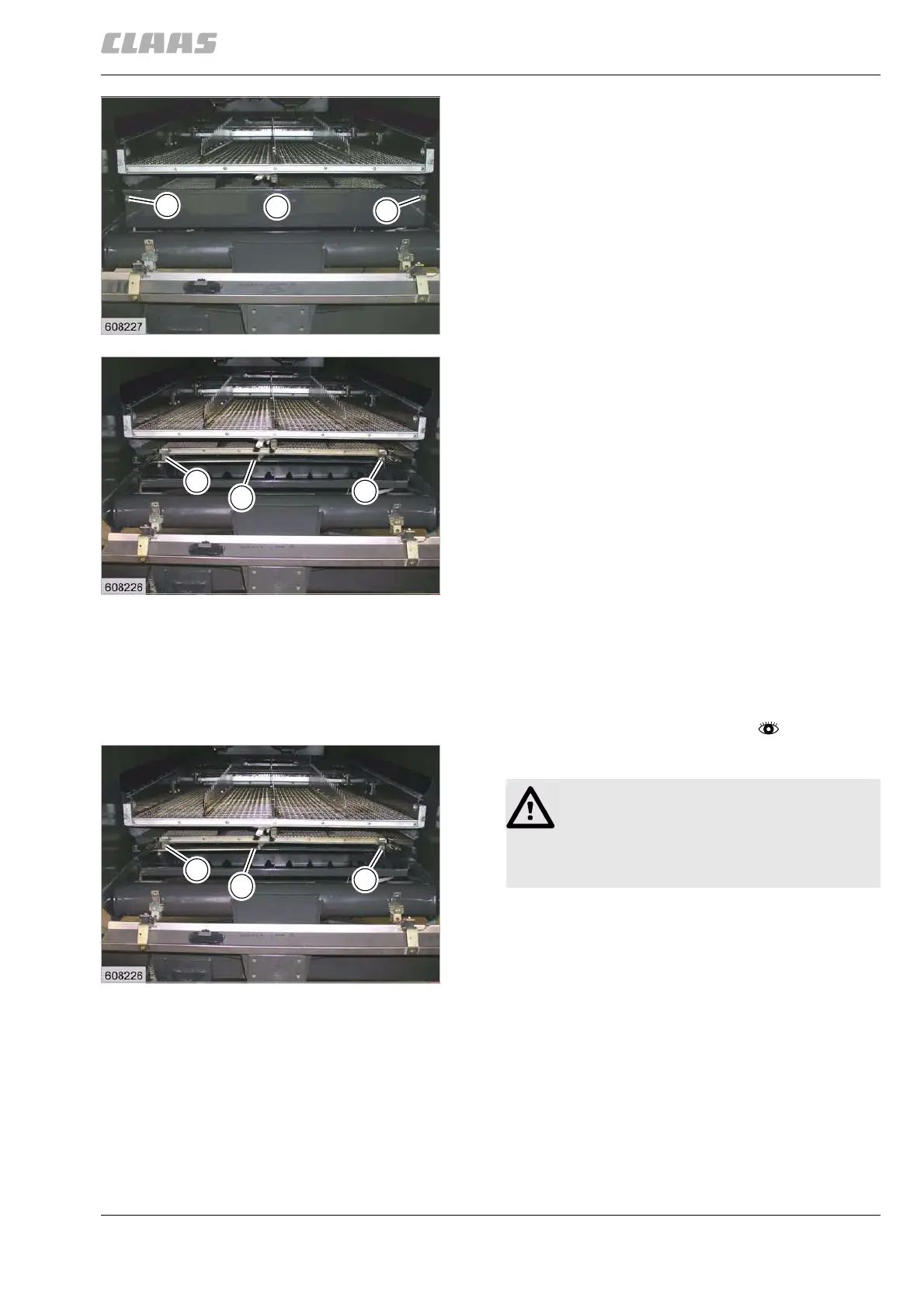

– Unscrew bolts (3) and remove cover (4).
– Pull out cotter pin (5) at the linkage.
– Unscrew bolts (6).
– Pull out the lower sieve to the rear.
82982
10.5.4 Installing the sieves
The sieves can be removed / installed independently
of one another.
– Observe the general warnings at the beginning of
the "Fieldwork settings" chapter.
Installing the lower sieves
– Install lower sieve.
– Install linkage and secure with cotter pin (5).
– Arrest lower sieves with clamps and bolt down
hand-tight with bolts (6).
20
19640
4
3
3
21
19641
6
6
5
22
19641
6
6
5
WARNING:
Dirt in the guide rails.
Heavy action.
– Clean guide rails.
