Claas DOMINATOR 130 - Adjusting the Height of the Feeder Chain

00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 175
10 Fieldwork settings
10.2 Feeder unit
67086
– Repeat this process on the other side of the
machine.
72798

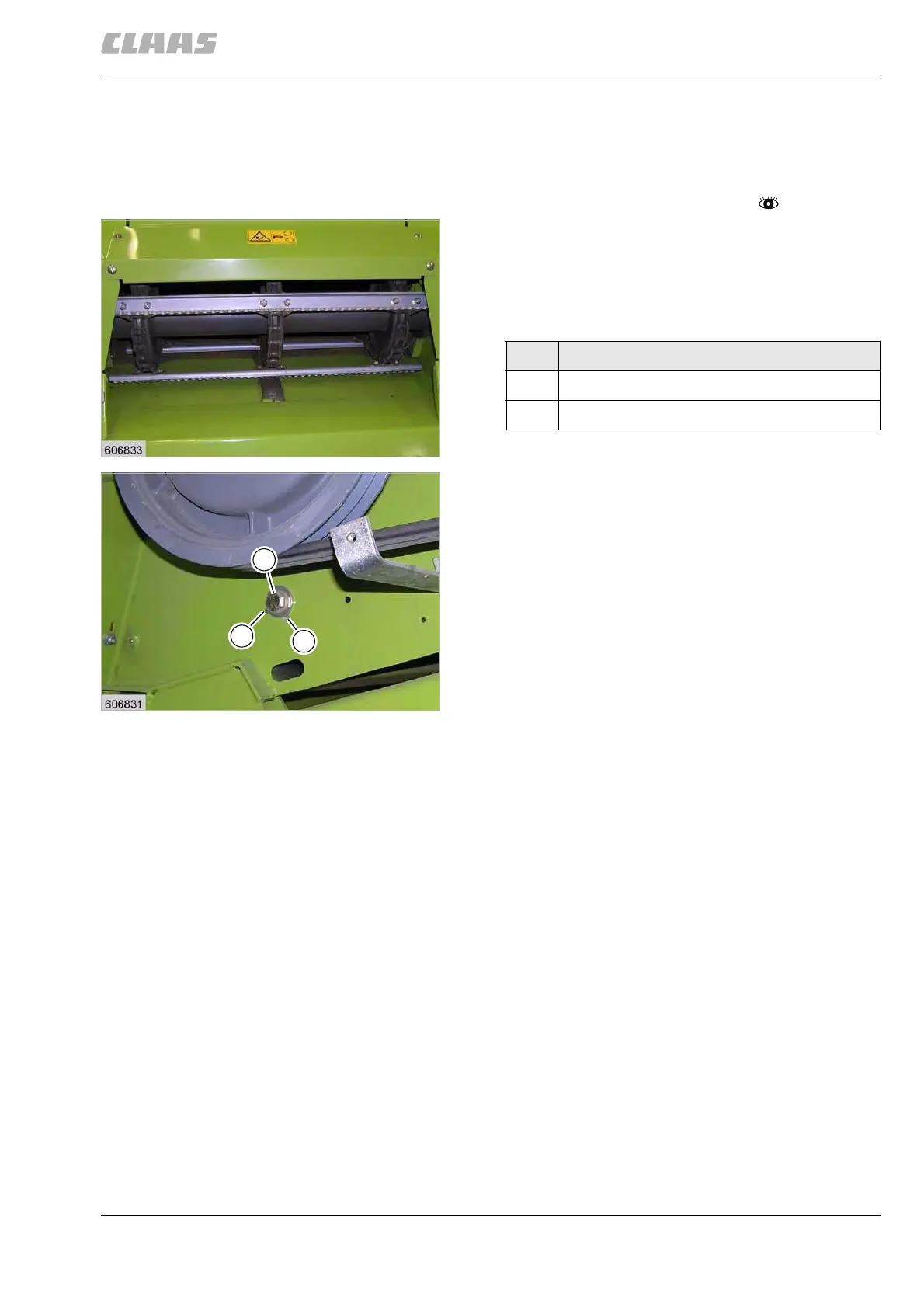

10.2.3 Adjusting the height of the feeder chain
– Observe the general warnings at the beginning of
the "Fieldwork settings" chapter.
Adjust the height of the feeder chain parallel on the left
and right at the feed rake conveyor.
– Slacken off bolts (1).
– Twist supports by 90° until the dowel pin fits the
bore.
The supports in the feed rake conveyor have adjusted
the feeder chain height.
– Bolt down bolts (1).
4
23851
5
19596
B
1
A
Designation
AGrain
BMaize
