00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 209
11 Fieldwork
11.6 Threshing mechanism
67087

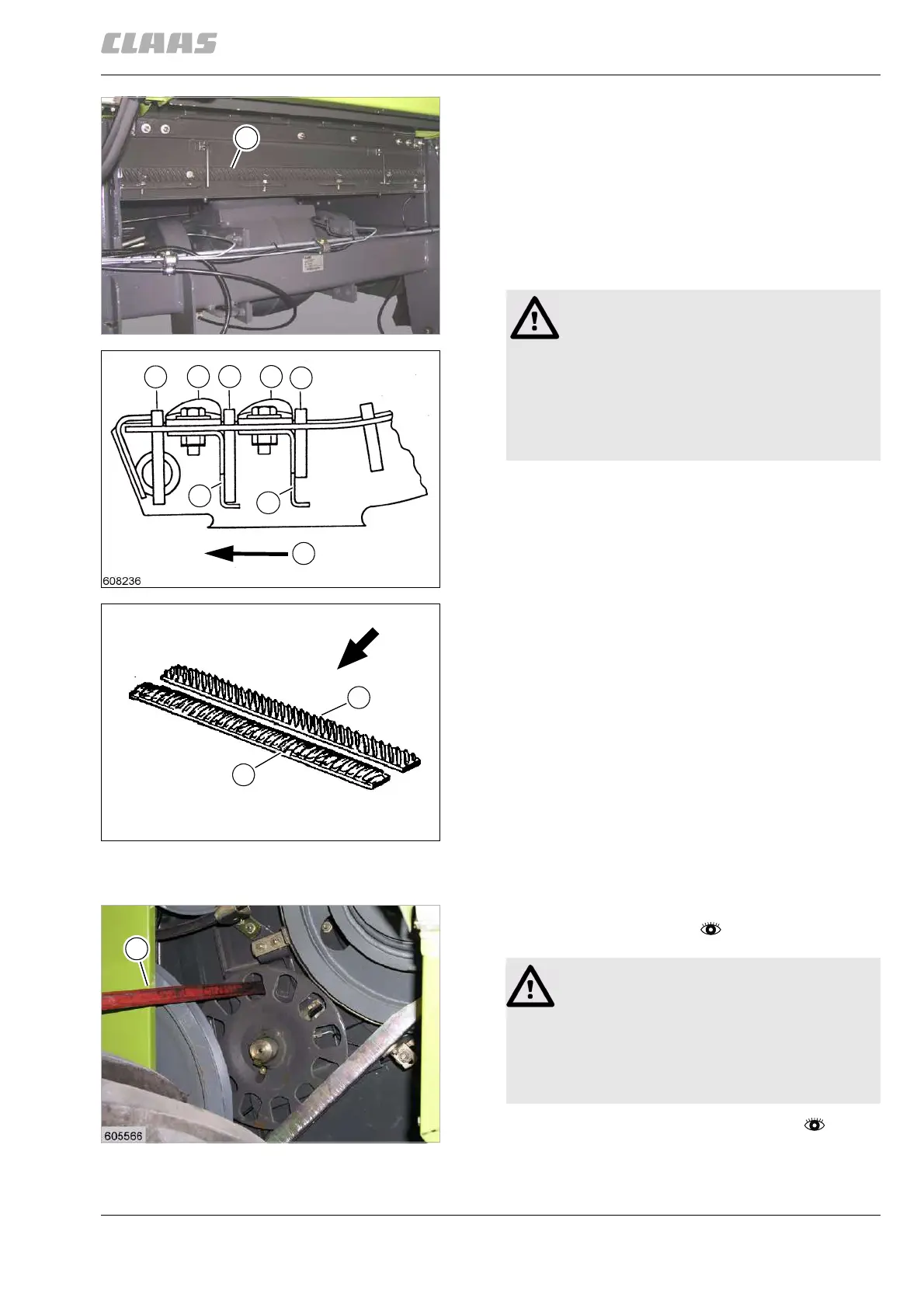

Machine with standard wire concave
For better disawning, up to two one-piece disawner
bars can be installed in the main concave.
In the ex works condition, one one-piece bar with mat-
ing bar is provided. Another one-piece bar (R) with a
mating bar is enclosed with the machine. (accessory)
– When required, unscrew disawner bar (R) with
mating bar from the stone trap cover.
– Bolt down the disawner bars (L, R) using 6 hex.
bolts M 8 x 25 DIN 933-8.8, contact washers A 8
and mating bar (5) for each bar.
- Bolt on the left-ribbed disawner bar (L) between
the 1st and 2nd concave bars.
- Bolt on the right-ribbed disawner bar (R)
between the 2nd and 3rd concave bars.
82332
11.6.5 Unslugging the threshing drum
– Observe the general warnings at the beginning of
the "Fieldwork" chapter.
– Set the threshing concave downwards.
– Remove safety device.
25
28507
26
19614
27
16379
R
1.
L 2. R
3.
5
5
F
R
L
WARNING:
Dirty concave.
Machine damage.
– Make sure surroundings are clean.
– Clean concave prior to installation.
– Ensure that the disawner bars make con-
tact with the concave wires.
28
19612
L
WARNING:
Sensitive components surrounding the chisel.
Machine damage.
– Make sure that the chisel does not dam-
age the lubricating line and the speed
sensor.
