11.2 Description and function
67087
11.2 Description and function
69387
11.2.1 Cutterbar
Dividers separate the standing grain from the grain
which is to be cut.
Grain lifters lift lodged crops and avoid cutting losses in
crops with hanging heads.

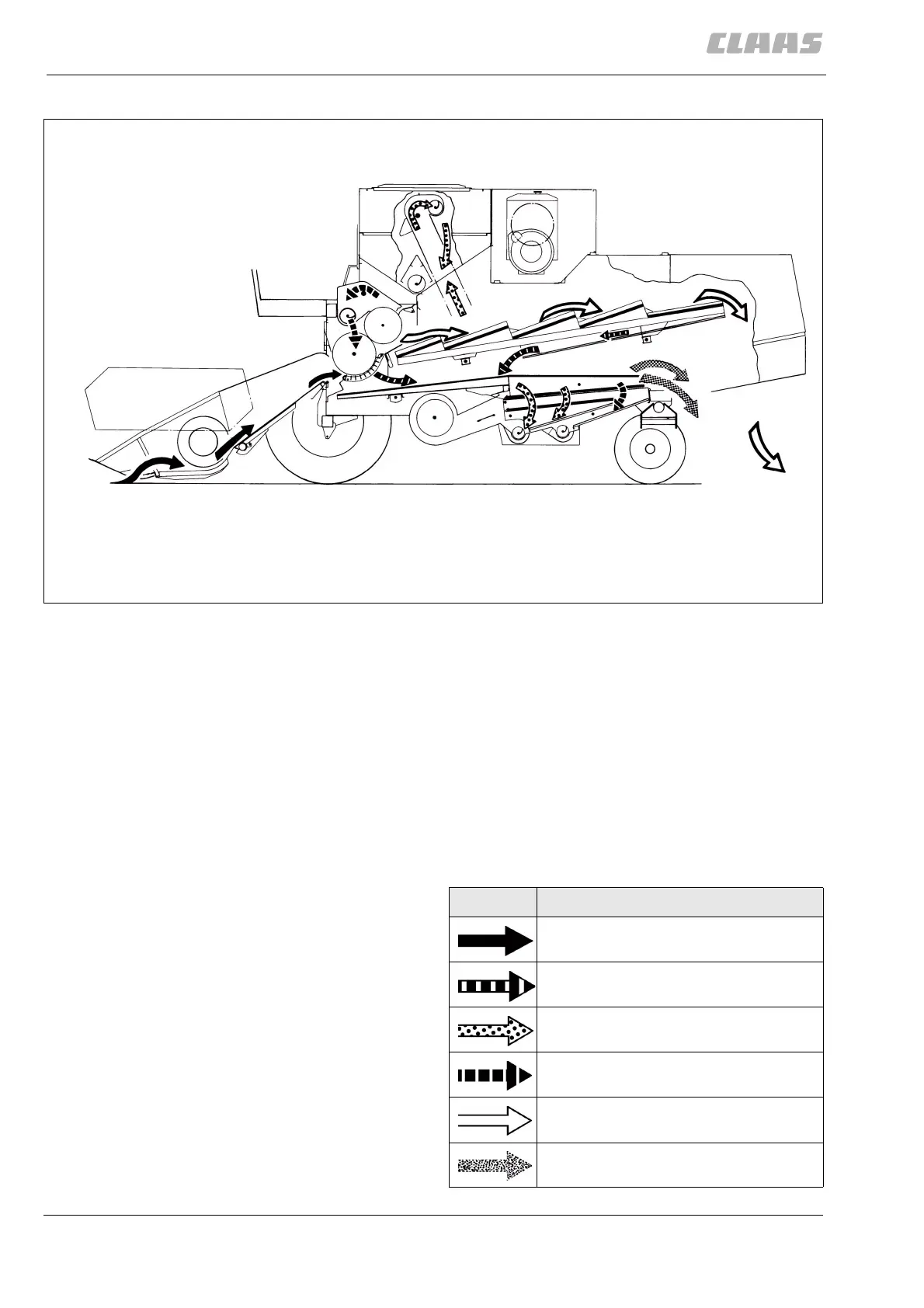

The reel moves the cut crop to the intake auger. The
auger flights move the material to the cutterbar centre
where the feed rake delivers it to the drum for thresh-
ing. The stone trap collects solid objects brought up by
the feed rake, thus preventing damage to the threshing
parts.
19320
1
Designation
Grain
Grain, chaff, broken straw
Grain
Returns
Straw
Chaff
