Claas DOMINATOR 130 - Installing the Grain Tank Unloading Shear Bolt

00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 257
12 Faults and remedies
12.9 Grain delivery
67088
83154

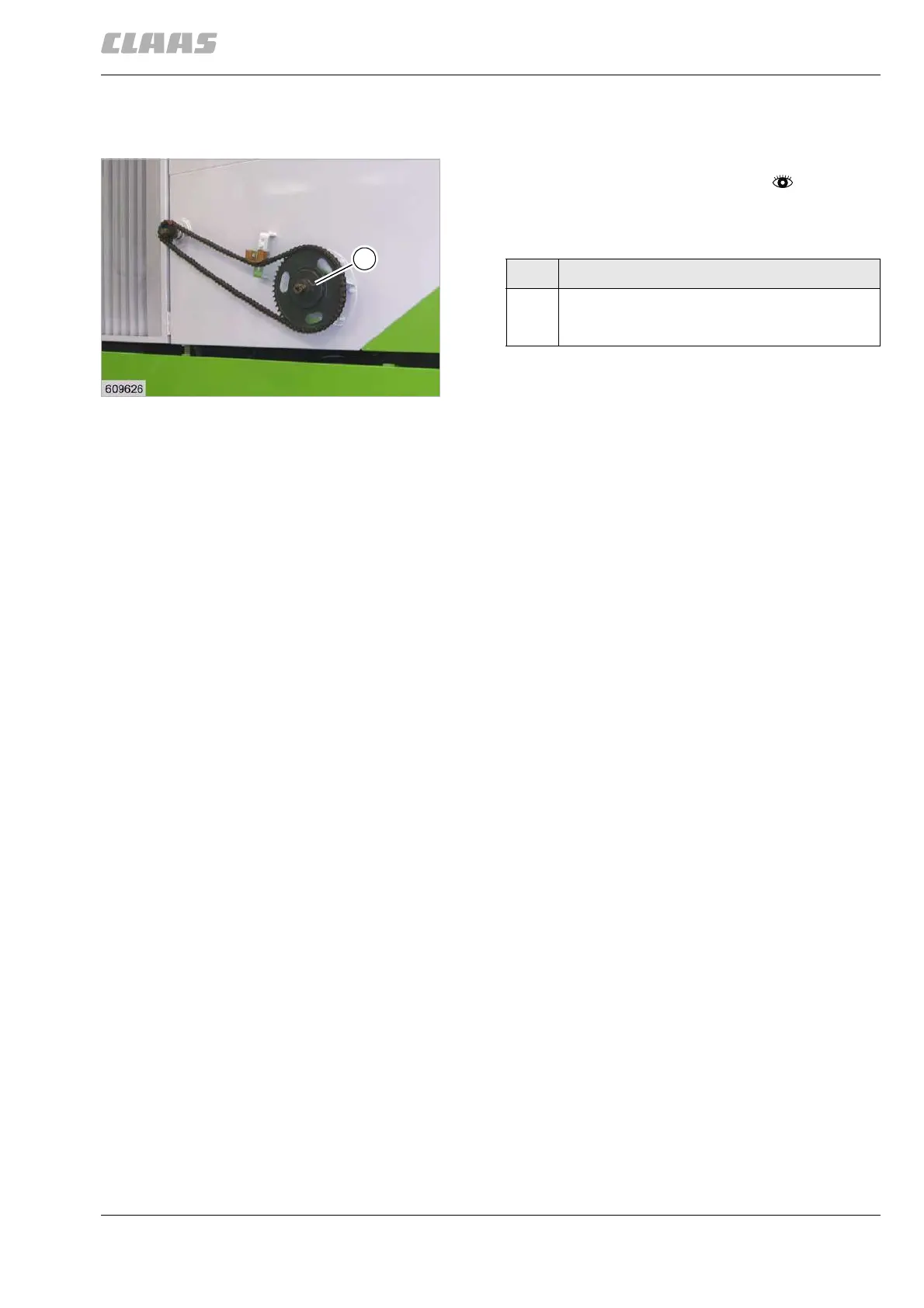

12.9.2 Installing the grain tank unloading
shear bolt
– Observe the general warnings at the beginning of
the "Trouble and remedy" chapter.
The shear bolt (1) in the sprocket protects the grain
tank unloading drives against damage.
– Eliminate cause of the problem.
– If required install new shear bolt.
Tightening torque = 24.5 Nm
2
19661
1
Shear bolt (1)
1 Hex. bolt ISO 4014 M8 x 35 -8.8
Self-locking nut ISO 7042 VM 8 -8
