00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 321
13 Maintenance
13.8 Drive belts / drive chains
67089
87740

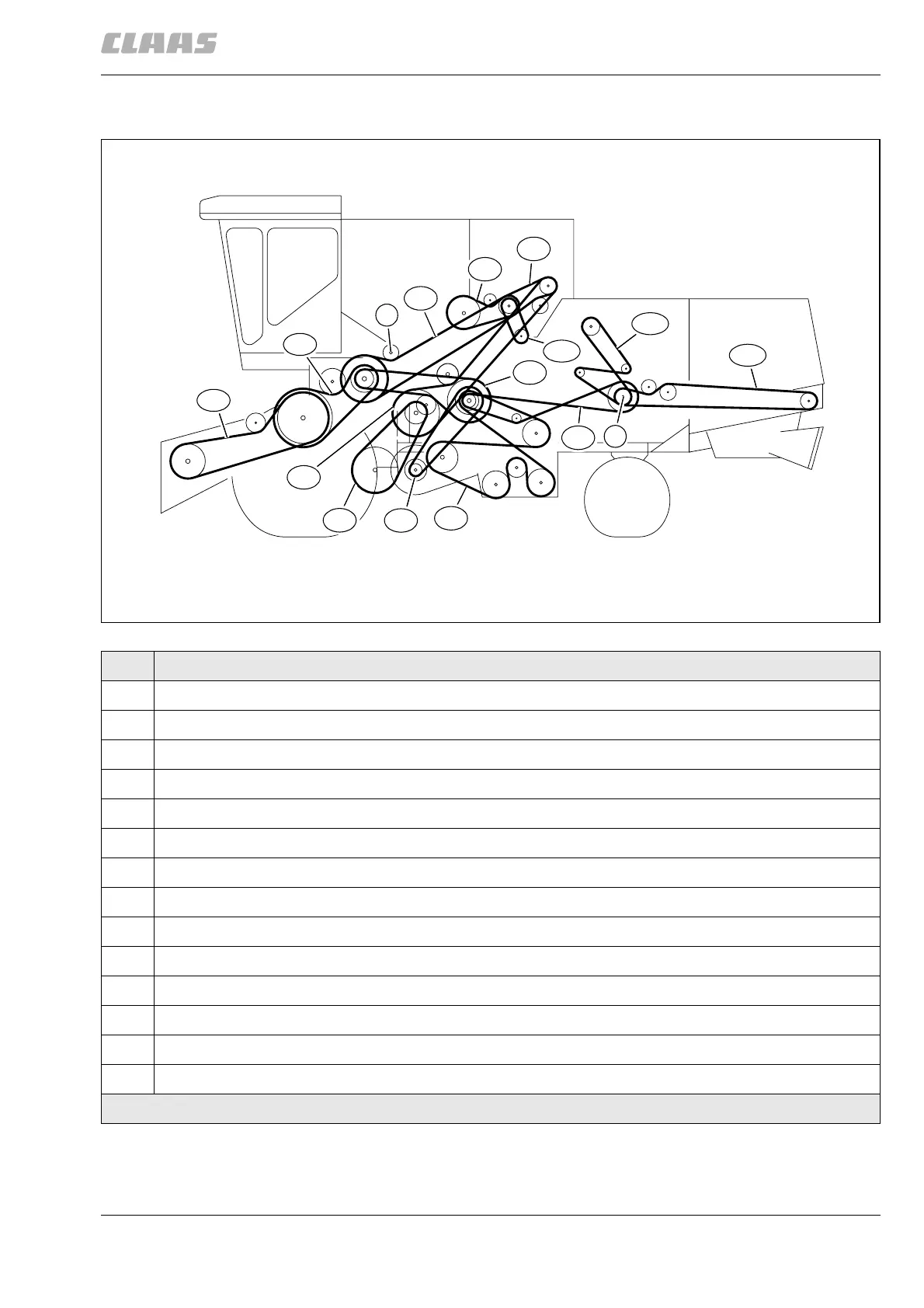

13.8.2 Drive diagram, left side DOMINATOR 150 / 140 / 130
30063
78
R1
R3
R4
R5
R12
R8
R6
R10
R9
R7
W
S
R11
R2
R14
R13
Designation
R1 Front attachment drive, stage 2
R2 Front attachment drive, stage 1
R3 Threshing mechanism drive
R4 Grain tank unloading drive 1st step
R5 Hydraulic ground drive DOMINATOR 150 / 140
R6 Sieve pan drive 1st step
R7 Fan drive
R8 Sieve pan drive 2nd step
R9 Straw walker drive
R10 Intensive separation system drive
R11 Straw spreader drive
R12 Air conditioner compressor drive
R13 Ground drive DOMINATOR 130
R14 Ground drive variable-speed drive DOMINATOR 130
W = Impeller, S = Straw walker drive shaft, R = Drive belt
