Claas DOMINATOR 130 - Threshing Mechanism; 1 Cleaning the Stone Trap; 2 Cleaning the Threshing Mechanism

356 00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09
13 Maintenance
13.13 Threshing mechanism
67089
13.13 Threshing mechanism
82170

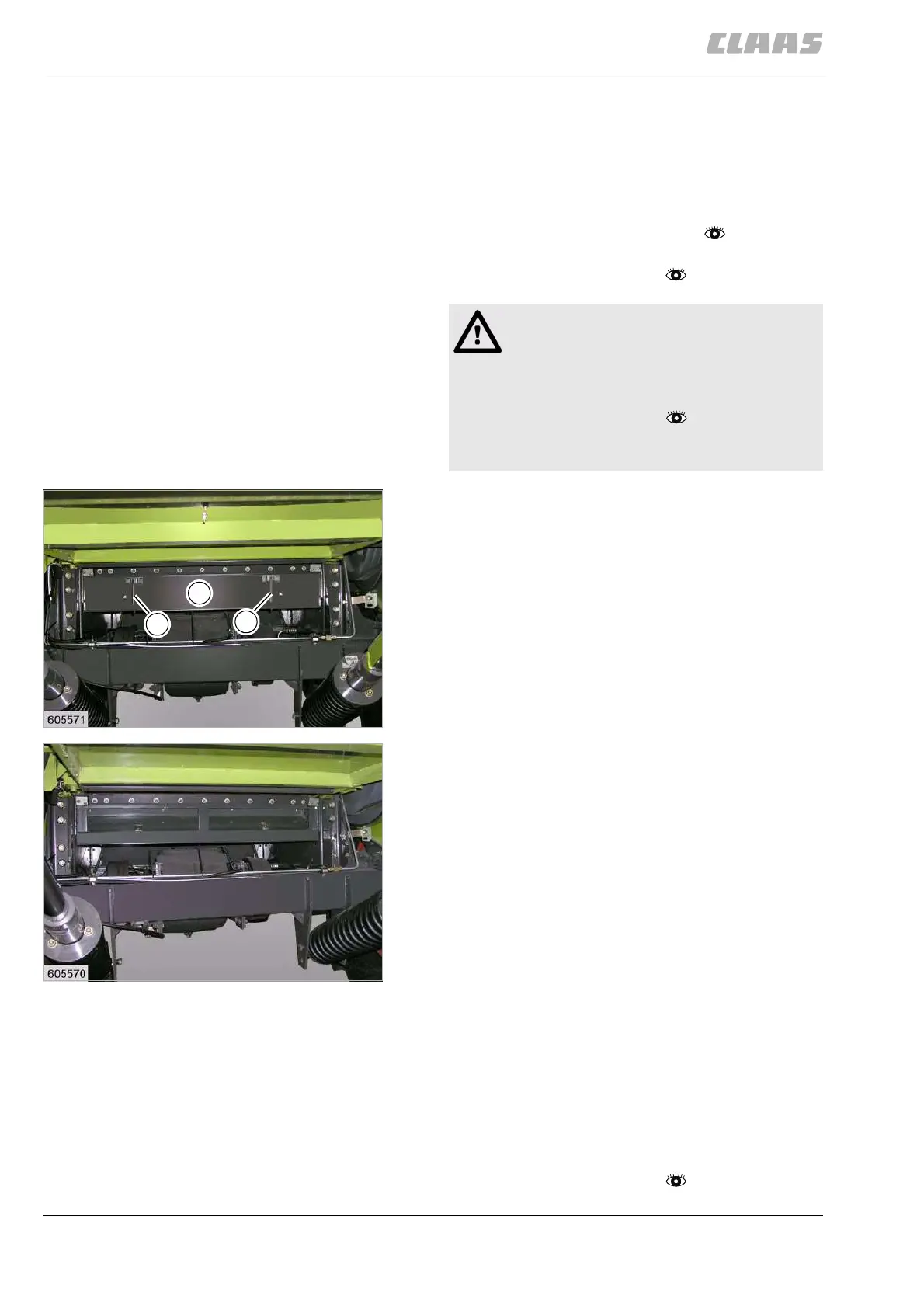

13.13.1 Cleaning the stone trap
The stone trap collects stones and other foreign
objects up to a certain size and thus protects the
threshing mechanism against damage.
– Raise the feeder unit all the way.
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Open the latch (1) and remove the flap (2).
– Clean the stone trap.
– Install the flap and close the latch.
82233
13.13.2 Cleaning the threshing mechanism
Especially when working in green and damp crops, the
concave, the threshing drum and the preparation floor
can quickly become clogged with dirt.
A large inspection hole facilitates inspection and clean-
ing after the flap (1) is removed.
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
Danger!
The front attachment, reel and feeder unit may
drop uncontrolled.
Death or serious injuries!
– Apply safety locks.
– Keep a safe distance from the hazard
area.
136
19603
137
19604
2
1
1
