122 00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09
7 Overview of controls
7.2 Cab / Operator's platform
67083
54980

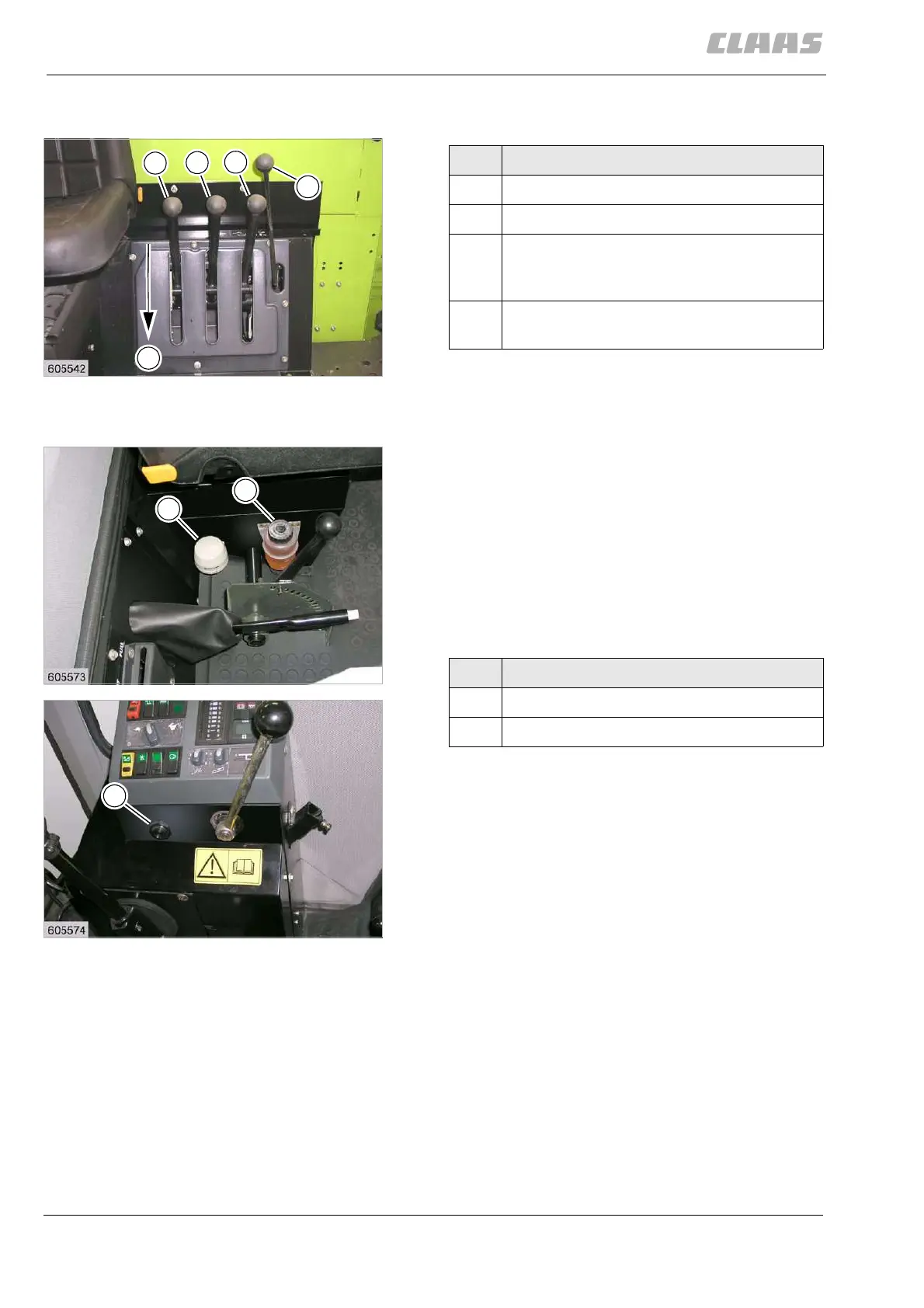

7.2.18 Control levers
54987
7.2.19 Functions monitor
The speed loss monitor monitors the speeds of the
upper feed rake shaft, clean grain and returns eleva-
tors, straw walker shafts and of the straw chopper. It
also monitors the air filter and the engine oil pressure.
The appropriate red indicator light in the combined
instrument gauge lights up and a buzzer sounds when
shaft speed slows down, when the air filter is soiled
and when the engine oil pressure is too low. The
buzzer (S) located on the right-hand side of the opera-
tor's seat goes on and off intermittently.
20
19419
2
3
1
E
4
Designation
1 Switches front attachment on and off
2 Switches threshing mechanism on and off
3 Engaging / disengaging grain tank unload-
ing Swinging the grain tank unloading tube
out / in
4 Swinging the grain tank unloading tube out /
in (DOMINATOR 130)
21
DOMINATOR 130
19428
22
DOMINATOR 150 / 140
19430
S
B
S
Designation
S Buzzer
B Brake fluid reservoir
