13 Maintenance
13.8 Drive belts / drive chains
67089
87583

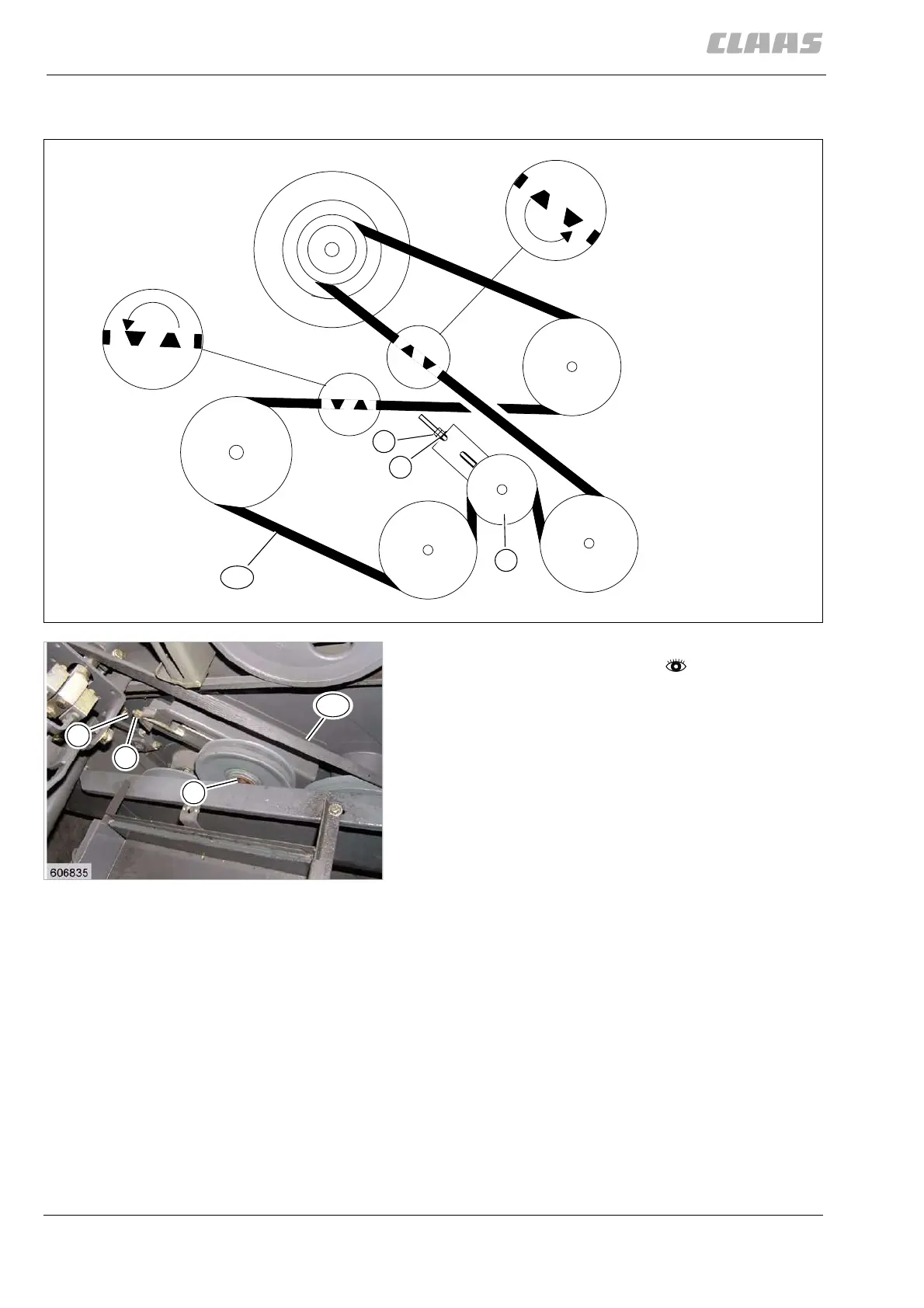

13.8.9 Adjusting belt (R8)
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Loosen the clamping screw of the jockey
pulley (1).
– Turn nuts (2) and (3) until belt (R10) is tensioned.
– Lock nuts (2) and (3).
– Tighten the clamping screw of the jockey
pulley (1).
- Tightening torque = 130 Nm
– Carry out a test run and check belt tension.
30031
87
180°
80°1
2
1
3
R8
88
23842
1
2
R8
3
