162 00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09
9 Driving and transportation
9.6 Hitch
67085
Type AK 64/1 B ...
– Secure the rear axle of the transport carriage so it
will not roll away.
– If required, release the trailer steering axle brake.
The drawbar must be freely moving in all
directions.
With rigid-drawbar trailers, the hitch eye must hit
the centre of the hitch (2).
Failure to observe this rule will cause damage!
– If required, set the hitch eyes to the height of the
coupling point.
– Press pawl (4) and handle of pin (5) together and
pull out of the trailer hitch.
– Clean the trailer hitch with a suitable agent.
– Back up tractor slowly until the hitch eye makes
contact with the trailer hitch.
– Press pawl (4) and handle of pin (5) together and
plug pin (5) into the trailer hitch up to the stop (6).
– Release the pawl (4) and ensure that lock (7) has
engaged at the trailer hitch.
– Raise the trailer support wheel.
– Connect the power supply plug.
– If present, connect the breakaway cord to the
trailer hitch.
– Check the trailer lighting.
– If there is a braking system, carry out a brake test.
Type 810 ...
– Secure the rear axle of the transport carriage so it
will not roll away.
– If required, release the trailer steering axle brake.
The drawbar must be freely moving in all
directions.
With rigid-drawbar trailers, the hitch eye must hit
the centre of the hitch (2).
Failure to observe this rule will cause damage!
– If required, set the hitch eyes to the height of the
coupling point.
– Push down pawl (4) and pull pin (5) out of the
trailer hitch.
– Clean the trailer hitch with a suitable agent.
– Back up tractor slowly until the hitch eye makes
contact with the trailer hitch.
47

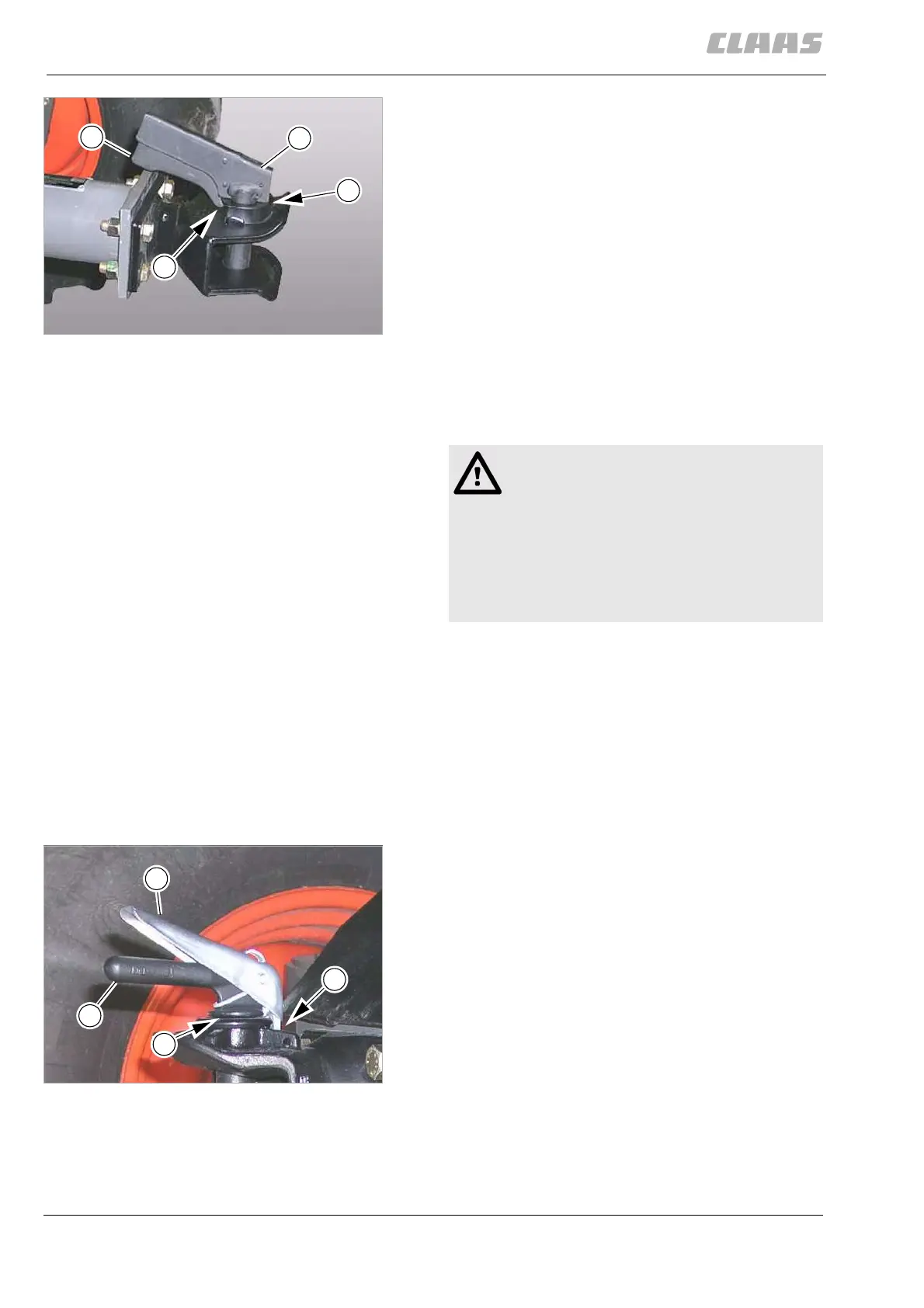

Trailer hitch type AK 64/1 B ...
30204
4
7
5
6
Danger!
Lock not engaged.
Trailer releases from the towing vehicle.
Death or serious injuries!
– Ensure that the lock is securely engaged.
– Never pull a trailer with the lock
disengaged.
48
Trailer hitch type 810 ...
20717
4
5
6
7
