8 Mounting/removing front attachment
8.2 Installing the front attachment
67084

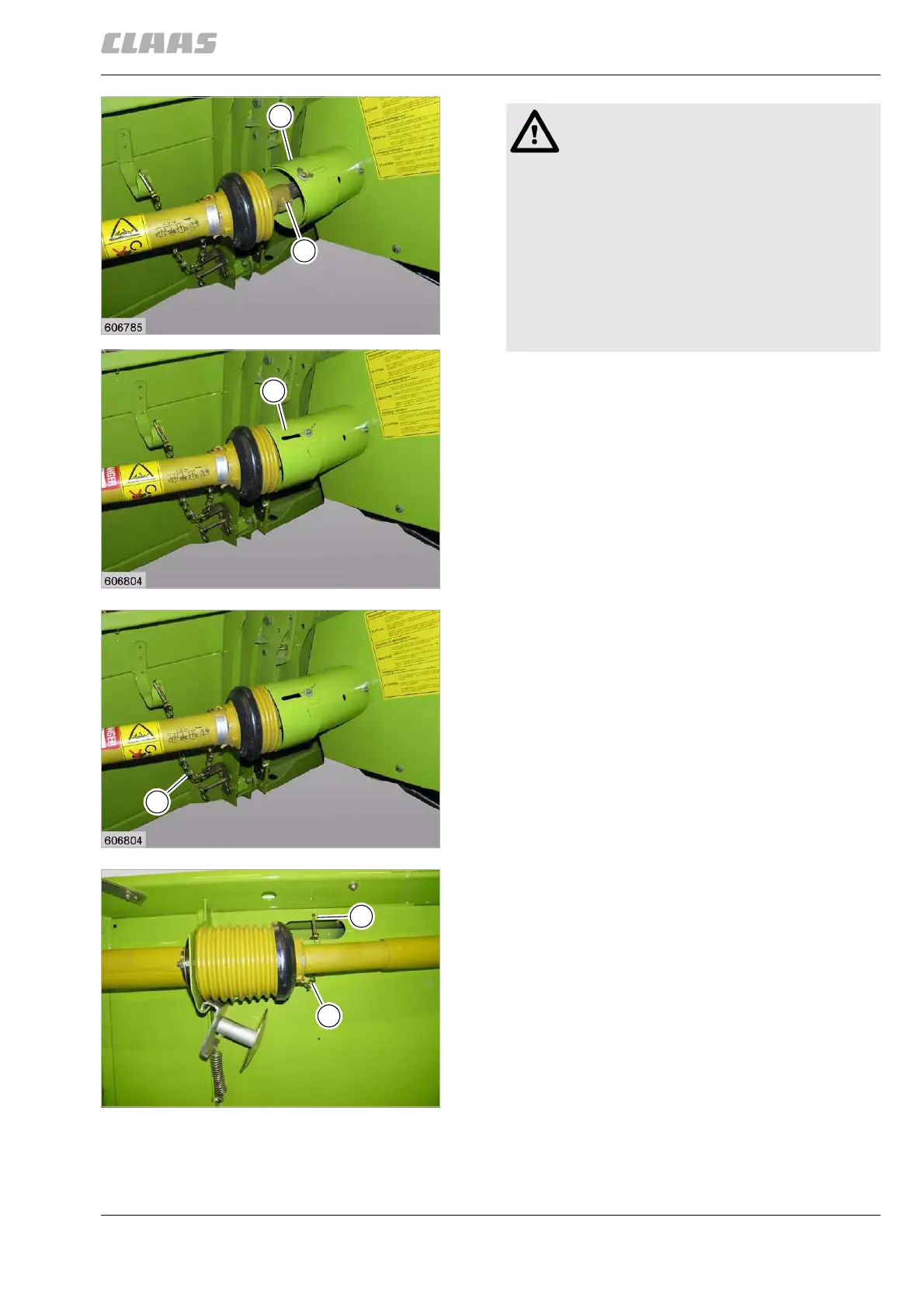

– Push back or swing up protective guard (1),
depending on the version.
– Push in the locking pin (2).
Slide universal drive shaft onto the drive pin.
– Pull out or fold down protective guard (1), depend-
ing on the version.
– Turn universal drive shaft in such a manner that
the chain (1) does not wrap around the universal
drive shaft more than 90°.
If necessary, cut off excess length of the chain (1)
or hang chain (1) so that it is shorter.
– Hang chain (1) on the bracket (2).
– Turn universal drive shaft in such a manner that
the chain (1) does not wrap around the universal
drive shaft more than 90°.
If necessary, cut off excess length of the chain (1)
or hang chain (1) so that it is shorter.
6
DOMINATOR
19526
7
DOMINATOR
19527
2
1
1
Danger!
Rotating universal drive shafts.
Death or serious injury.
– Check for secure latching of the locks or
locking pins.
– Never operate universal drive shaft with-
out protective guard.
– Replace defective protective guards on
the universal drive shaft immediately.
– Observe the recommendations of the
drive shaft manufacturer.
8
DOMINATOR
19527
1
9
24170
1
2
