13 Maintenance
13.16 Grain delivery
67089
79450

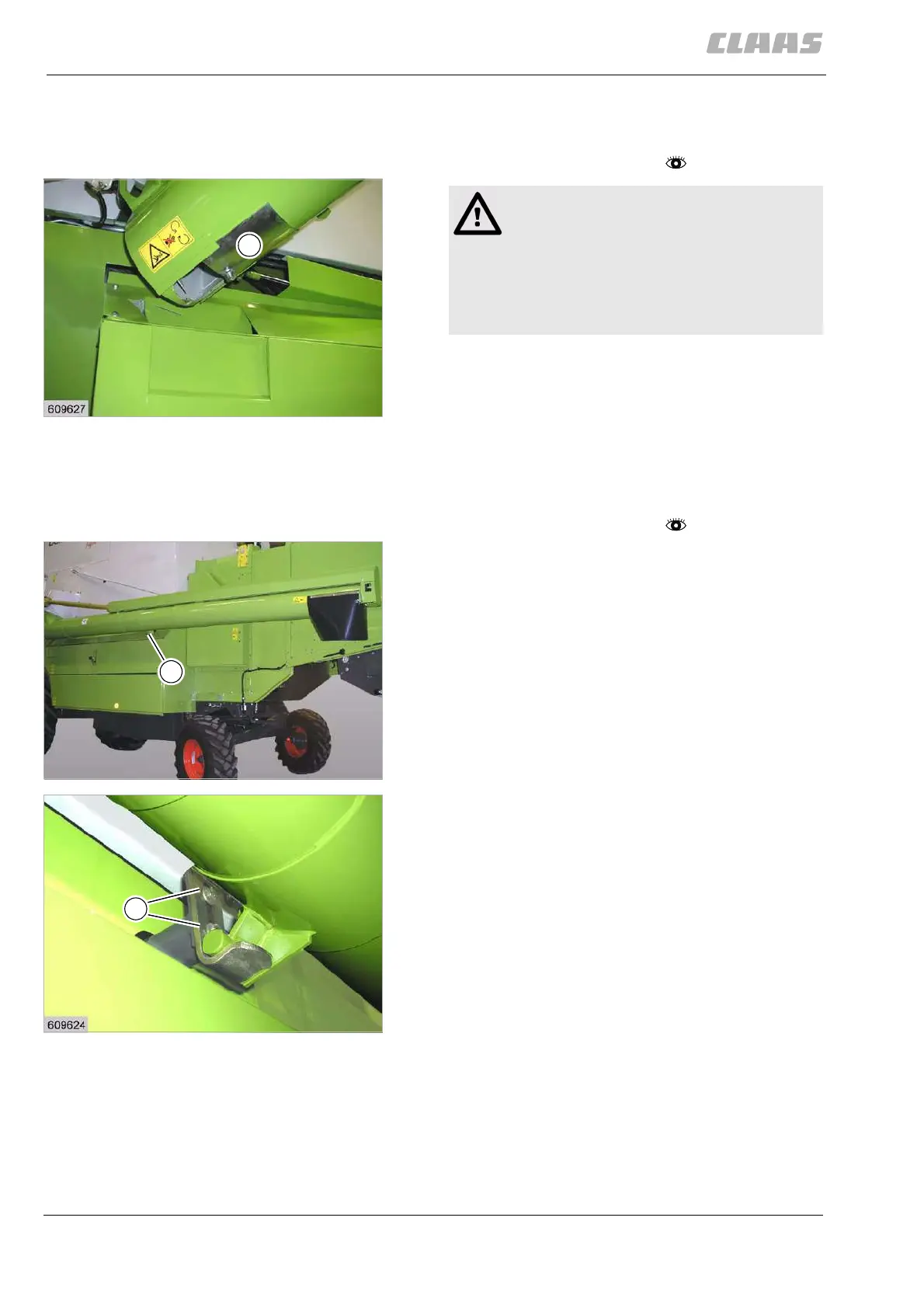

13.16.4 Cleaning the grain tank
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Open cover (1).
– Clean the grain tank.
–Close flap(1).
83151
13.16.5 Adjusting the grain tank unloading
tube support transport position
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
In the transport position the grain tank unloading tube
rests on the support bracket (1).
– Adjust the support height with the two bolts (2) so
that the unloading auger tube lies safely on the
support.
158
19660
1
Warning!
Sharp edges and pointed machine parts.
Slight injuries.
– Do not touch sharp edges of the auger
flights.
– Wear safety gloves.
159
28639
160
19659
1
2
