Claas DOMINATOR 150 - Installing; Removing the Straw Walker Fishback

00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 217
11 Fieldwork
11.7 Separation
67087
82483

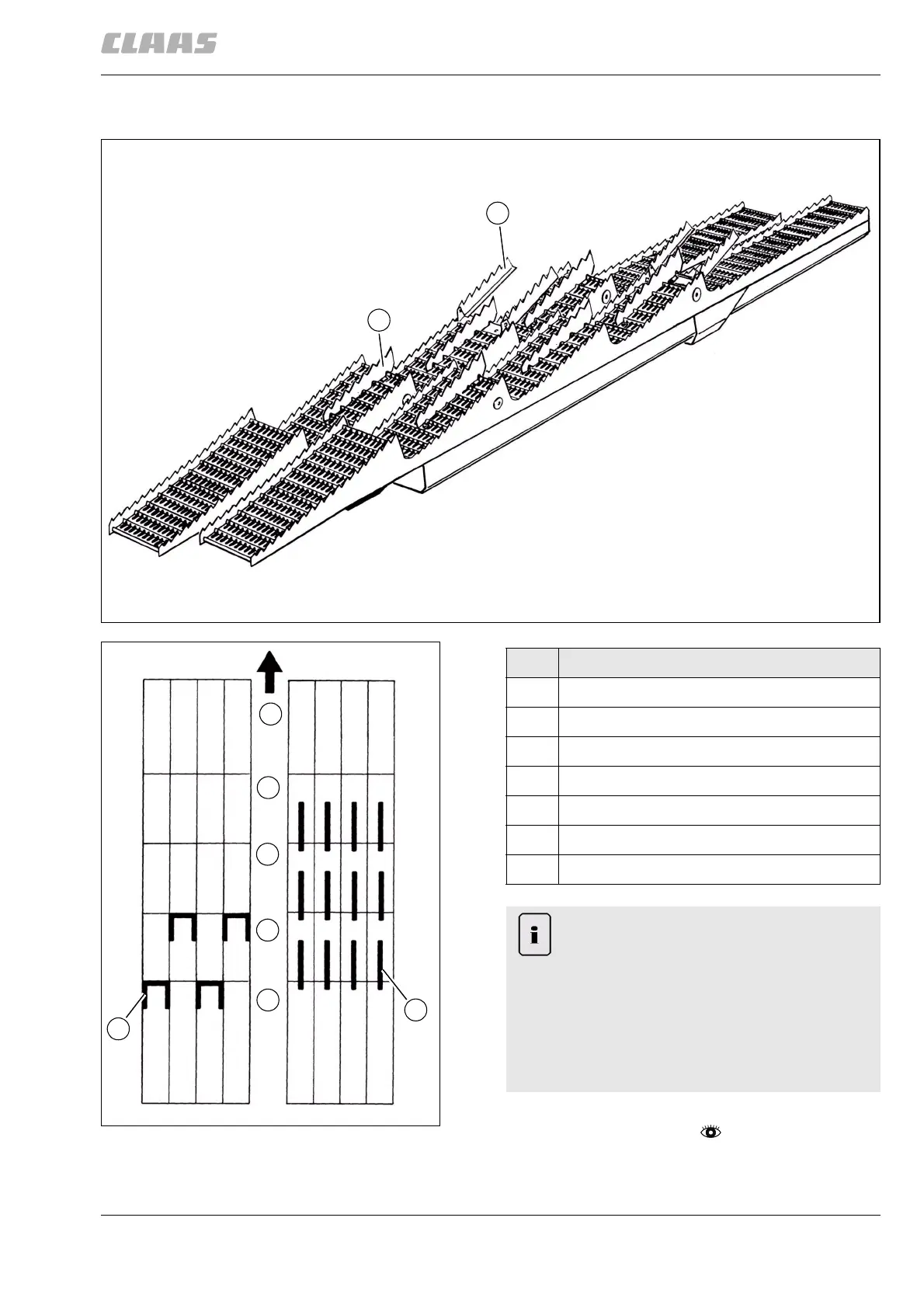

11.7.4 Installing / removing the straw walker fishback
– Observe the general warnings at the beginning of
the "Fieldwork" chapter.
28794
42
2
1
43
28793
F
1.
2.
4.
3.
2
1
Designation
1Side risers
2 Rise riser (also for grain)
1st Straw walker step 1
2nd Straw walker step 2
3rd Straw walker step 3
4th Straw walker step 4
F Direction of travel
Note!
Risers can collide with the agitator tines of the
intensive separation system.
Machine damage.
– Install risers at a safe distance from the
agitator tines of the intensive separation
system.
– Check free wheel.
