11 Fieldwork
11.5 Feeder unit
67087
82105

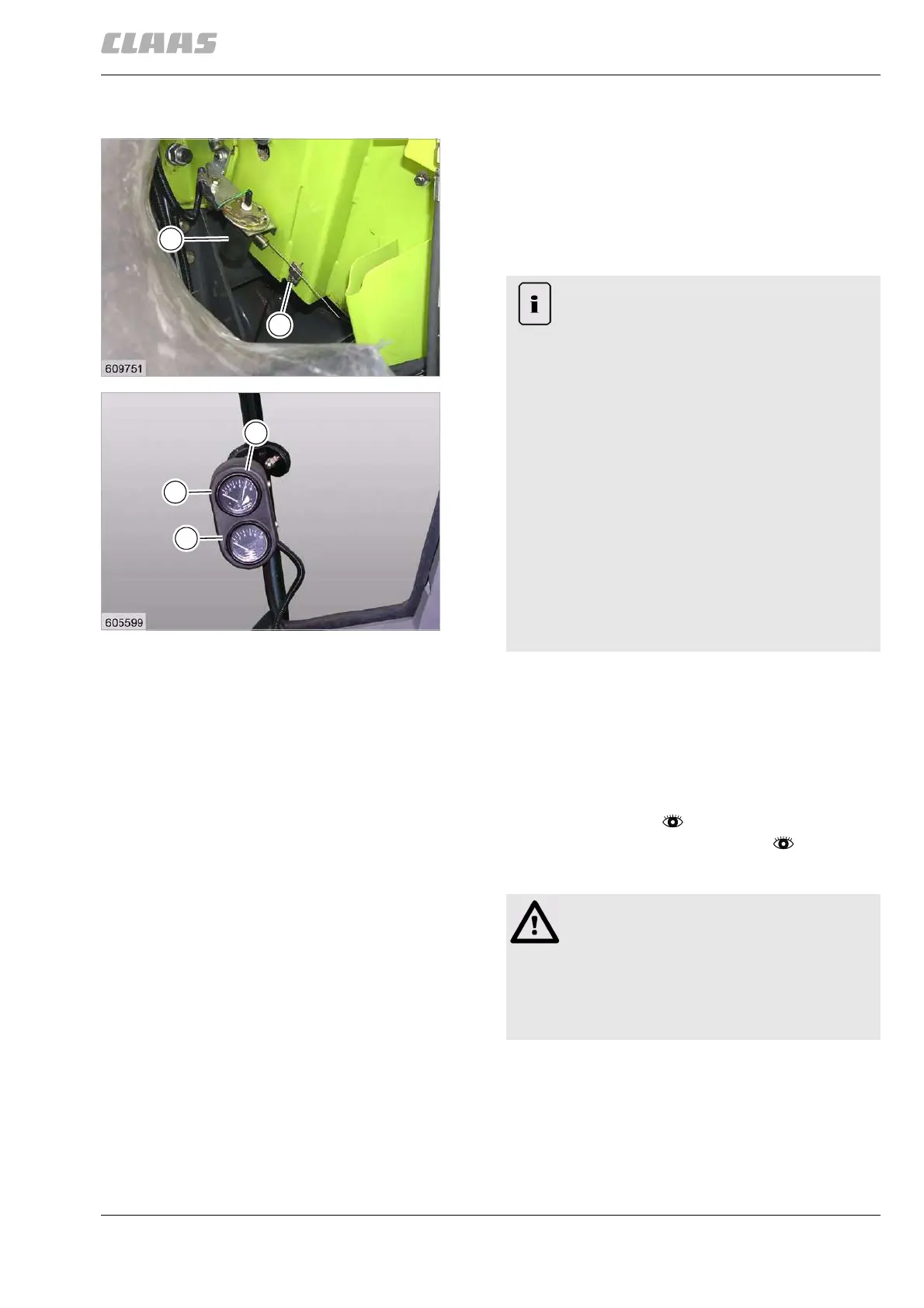

11.5.2 Reading the cutting height
The sender (1) indicates the front attachment cutting
height above the ground on gauge (A).
– Lower the front attachment during threshing until
the pointer of gauge (A) is in the upper range at
"9" (9 = about 100 mm cutting height). Raise /
lower front attachment if required.
73212
11.5.3 Reversing the front attachment / feeder
unit
In case of clogging of the front attachment / feed rake
conveyor, the drive of the front attachment / feed rake
conveyor can be rotated backwards via a hydrostatic
motor.
– Prepare fieldwork.
– Engage the threshing mechanism.
– Disengage the front attachment.
14
19602
15
19601
2
1
9
A
B
Note!
Uneconomic use of machine and of front
attachment.
High fuel consumption.
High wear on the front attachment.
– The further the pointer on gauge (B) falls
towards "0“, the higher the front attach-
ment ground pressure.
– Do not set the ground pressure unneces-
sarily high.
Raise / lower front attachment if required.
– The further the pointer on gauge (A) falls
towards "0“, the lower the front attach-
ment cutting height is above the ground.
– Do not set the cutting height unnecessar-
ily low.
Raise / lower front attachment if required.
Caution!
Machine components may run on although the
drive has been shut down.
Machine damage.
– Wait for all machine components to come
to complete stop.
To Next Page
