5 Prior to initial operation
5.2 Chassis
67081
Rear axle
00 0649 950 1
79317

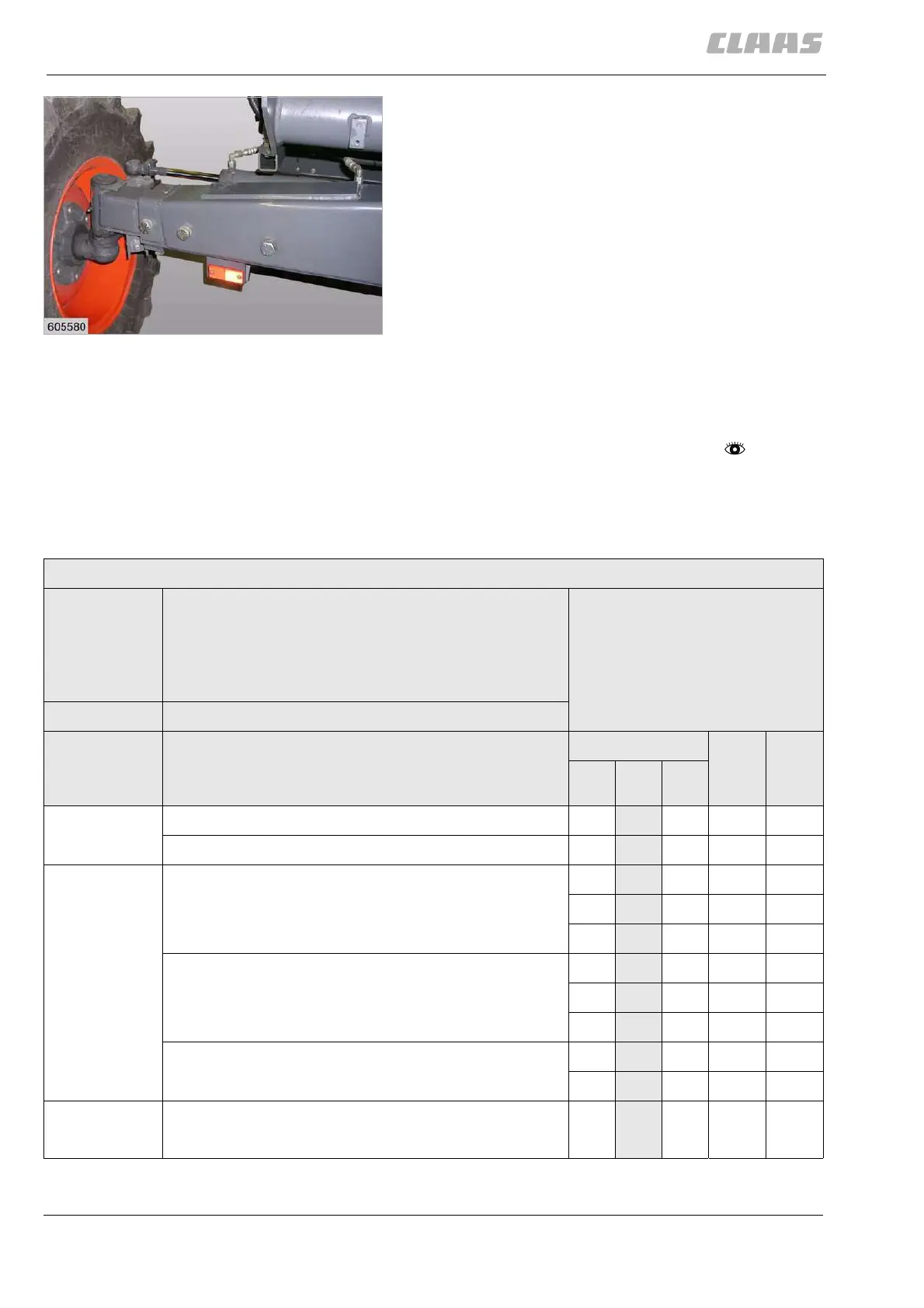

5.2.3 Converting the rear axle
from transport to working position
– Observe the general warnings at the beginning of
the Prior to initial operation chapter.
The following installation steps must be carried out,
depending on the tyres used on the rear axles
00 0637 630 2, 00 0649 950 1 and 00 0770 350 1:
See table of rear axle positions.
3
19471
Rear axle position
LA-P Rear axle position,
1 = bottom hole,
2 = top hole,
3 = rear axle rise (rice)
FW Flange width
Tyres DOMINATOR LA-P FW
(mm)
150 140 130
Rear axle
00 0637 630 2
11.5/80-15.3 IMP • •• 12040
12.5/80-18 IMP (320/80-18) •
•• 22040
Rear axle
00 0649 950 1
11.5/80-15.3 IMP •
•• 12291
•
•• 12491
•
•• 12691
12.5/80-18 IMP (320/80-18) •
•• 22291
•
•• 22491
•
•• 22691
14.5/75-20 IMP(360/80-20) •
•• 22291
•
•• 22491
Rear axle
00 0770 350 1
9.5-24 R1
•
32391
