322 00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09
13 Maintenance
13.8 Drive belts / drive chains
67089
87248

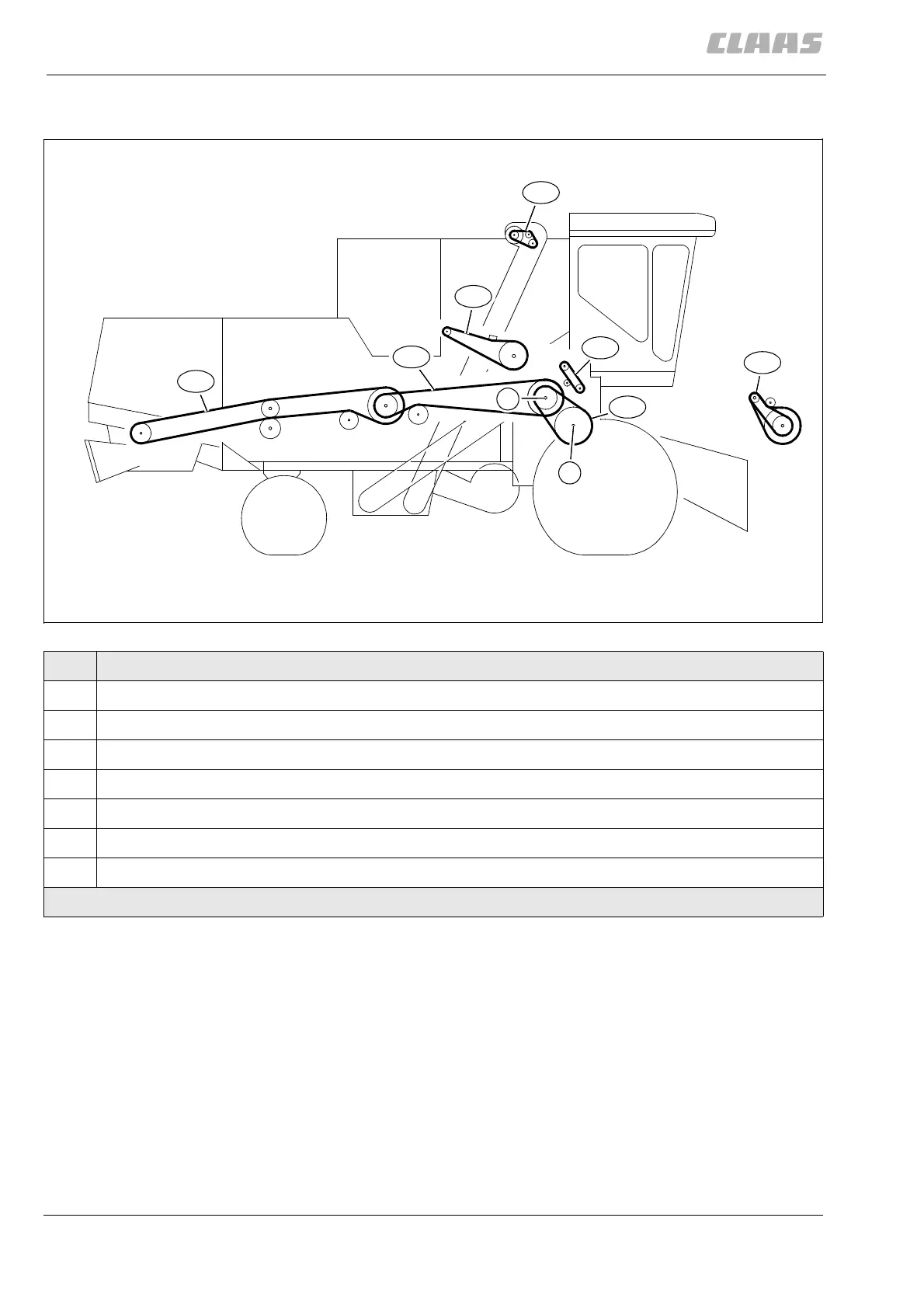

13.8.3 Drive diagram, right side DOMINATOR 150 / 140 / 130
29863
79
R40
R41
R42
D
W
K54
K56
K55
K57
Designation
R40 Straw chopper drive 2nd step
R41 Straw chopper drive 1st step
R42 Threshing drum variable speed drive
K54 Threshing drum chain drive
K55 Grain tank unloading drive 2nd step
K56 Grain tank filler auger drive
K57 Returns auger drive
D = Threshing drum, W = Impeller, R = Drive belt, K = Drive chains
