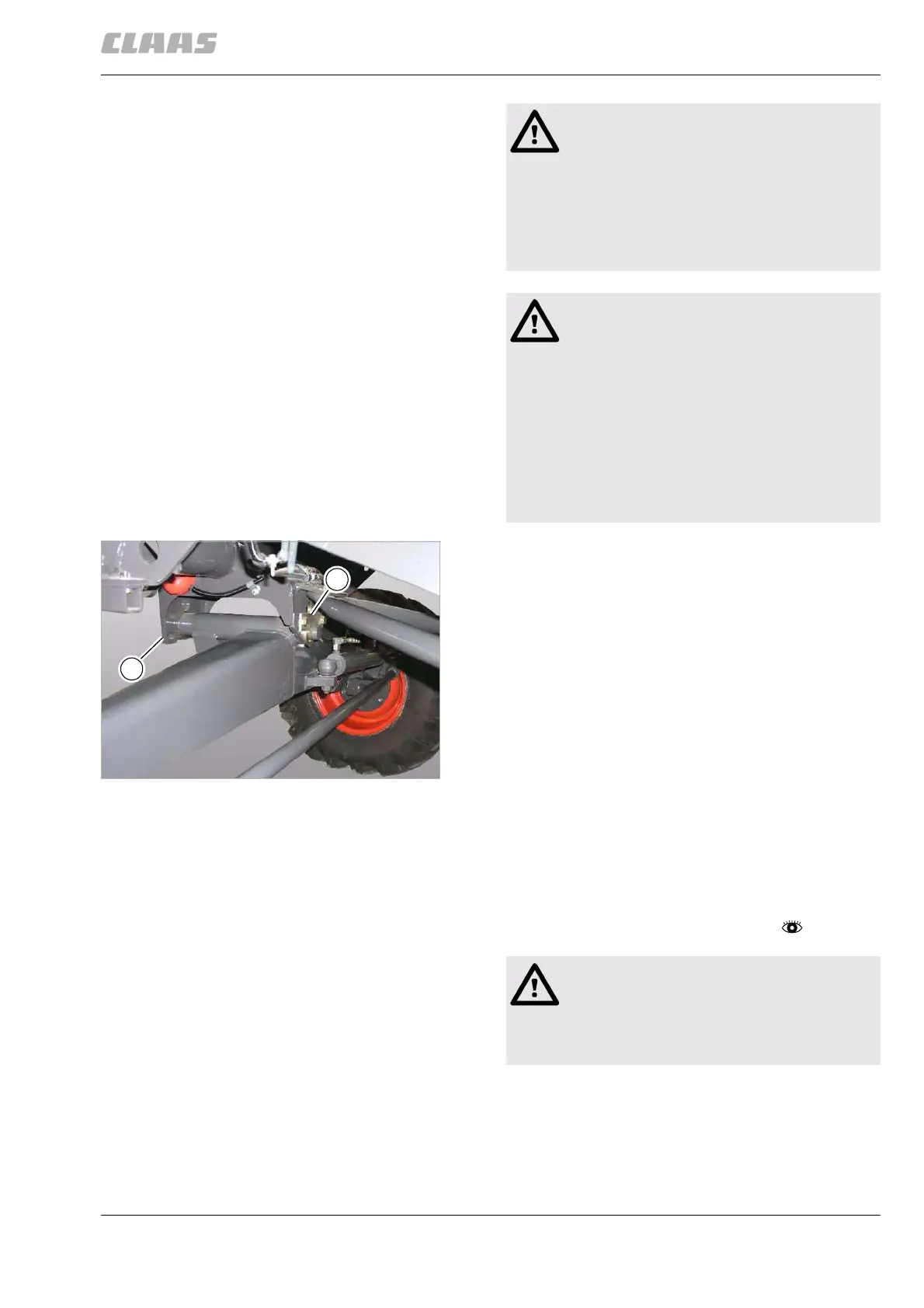

5 Prior to initial operation
5.2 Chassis
67081
– Suspend the machine in the lift eyes at the rear
and lift it (see loading and tying down the
machine) until the rear axle wheels have only
slight ground contact.
– Securely underpin axle against lowering and tip-
ping over.
– Unscrew flat bar (2) and pull out pin (1).
– Raise or lower machine.
– Insert pin (1) into the bottom or top hole and bolt
down flat bar (2). For rear axle rise (rice) see rice
threshing equipment.
– If necessary, adjust rear wheel drive
axle 00 0649 950 1 wheel track.
79261
5.2.4 Rear axle 00 0649 950 1 – Adjusting the
track width
– Observe the general warnings at the beginning of
the Prior to initial operation chapter.
The track width depends on the flange width (F) to be
set and on the tyres.
The axle can be set to three different flange widths.
WARNING:
The tyres may collide with the vehicle body.
Damage to tyres and vehicle body.
– Adjust track width to the tyres used.
– Adjust the rear axle position of the central
axle pivot pin with the axle. See table of
rear axle positions
Danger!
Jacking up the machine.
Death or serious injury.
– Use jack / jack stand with sufficient
capacity.
– Use reliable jack / jack stand.
– Use jack / jack stand on solid and level
ground.
– Apply the jack / jack stand at the position
of the machine intended for this purpose.
4
27234
2
1
Warning:
The tyres may collide with the vehicle body.
Damage to tyres and vehicle body.
– Adjust track width to the tyres used.
