00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 335
13 Maintenance
13.8 Drive belts / drive chains
67089
87674

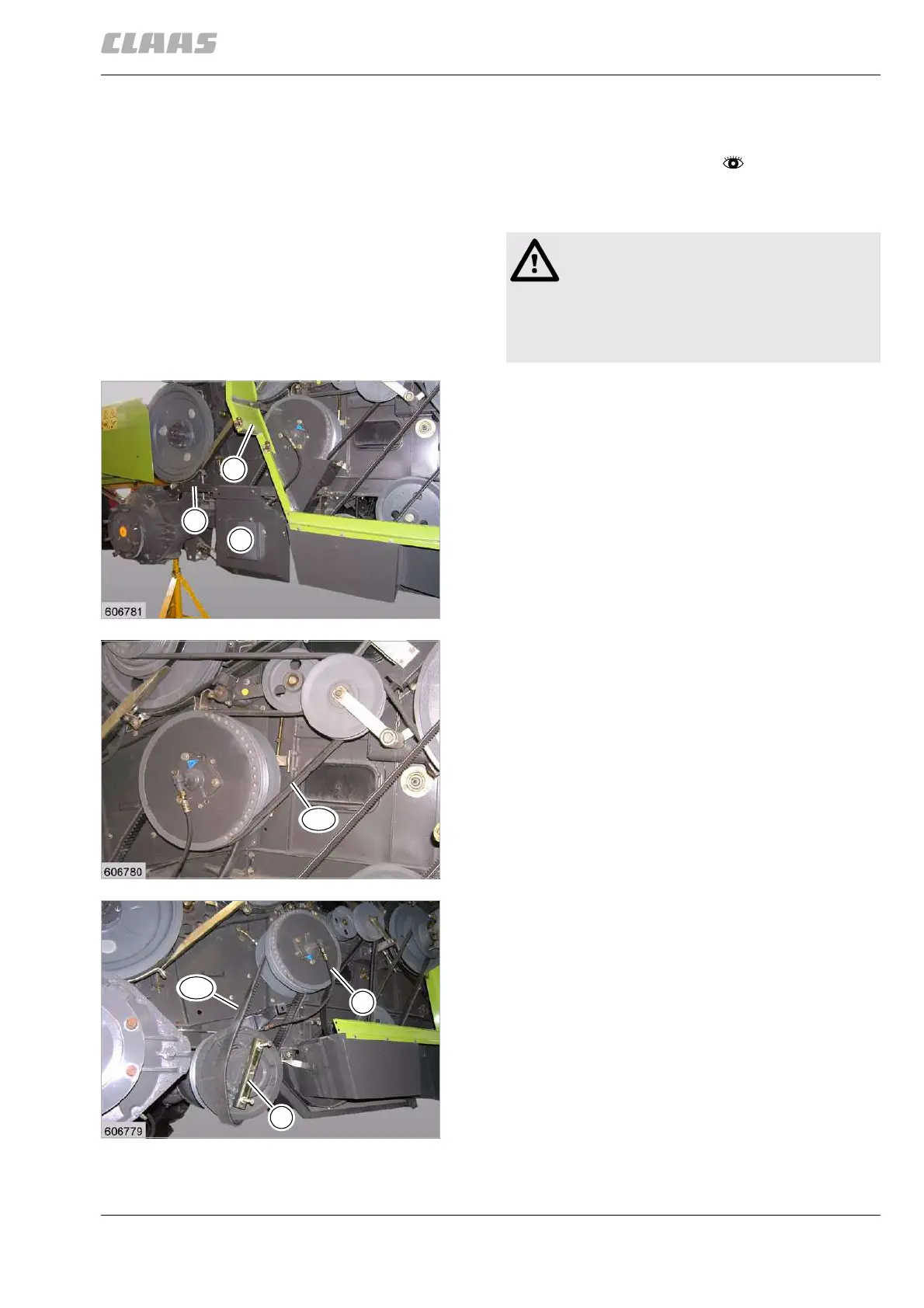

13.8.16 Removing belt (R14)
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Operate the variable-speed drive to the full speed
position while the engine is running.
– Securely support the machine on the left-hand
side. Remove the left-hand traction wheel.
– Remove guards (1 and 2) as well as angle iron
(3).
– Remove belt (R13).
– Screw special tool (4) on the variable-speed
pulley.
– Push the lever on the hydraulic control unit to the
"slow" position and at the same time push the
hydraulically operated variable-speed pulley
halves apart.
Warning!
Pinch points during assembly work.
Bruises of limbs.
– Keep limbs out of the hazard area.
– Use suitable tools.
100
23402
1
3
2
101
23401
R13
102
23403
4
R14
5
